Removing and installing oil extraction pumps - Engine removed: Installation
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2005 Porsche 911, 2004 Porsche 911, 2003 Porsche 911, 2002 Porsche 911, and 2001 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
- The oil extraction pumps on the cylinder heads are identical parts. Therefore, the installation position and direction of rotation must be correct.

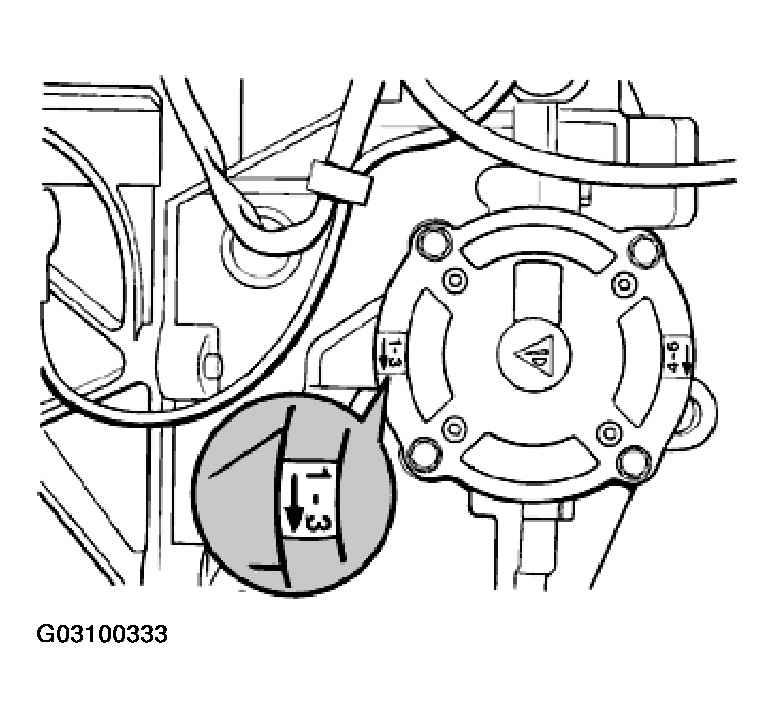

Installation position of oil extraction pump at cylinder head 1 - 3 (flywheel side). The arrow for the direction of rotation or the marking "1 - 3" faces the crankcase.
Fig 1: Identifying Arrow For Direction Of Rotation And Marking "1 - 3" On Crankcase Face (Cylinder Head 1-3)

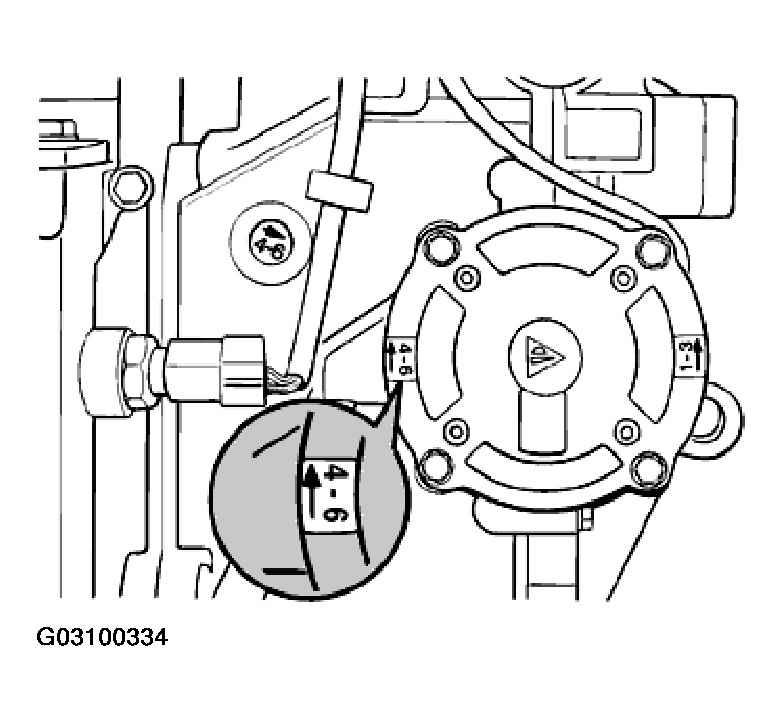

Installation position of oil extraction pump at cylinder head 4 - 6 (belt pulley side). The arrow for the direction of rotation or the marking "4 - 6" faces the crankcase or the coolant temperature sensor.
