Oil extraction pump of cylinders 4 - 6 (pulley side): Installation

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2005 Porsche 911, 2004 Porsche 911, 2003 Porsche 911, 2002 Porsche 911, and 2001 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Lightly grease the new sealing ring and lay it in the oil extraction pump.
Align oil extraction pump driver and fit oil extraction pump in the correct position. The arrow for the direction of rotation or the marking "4 - 6" must face the crankcase.

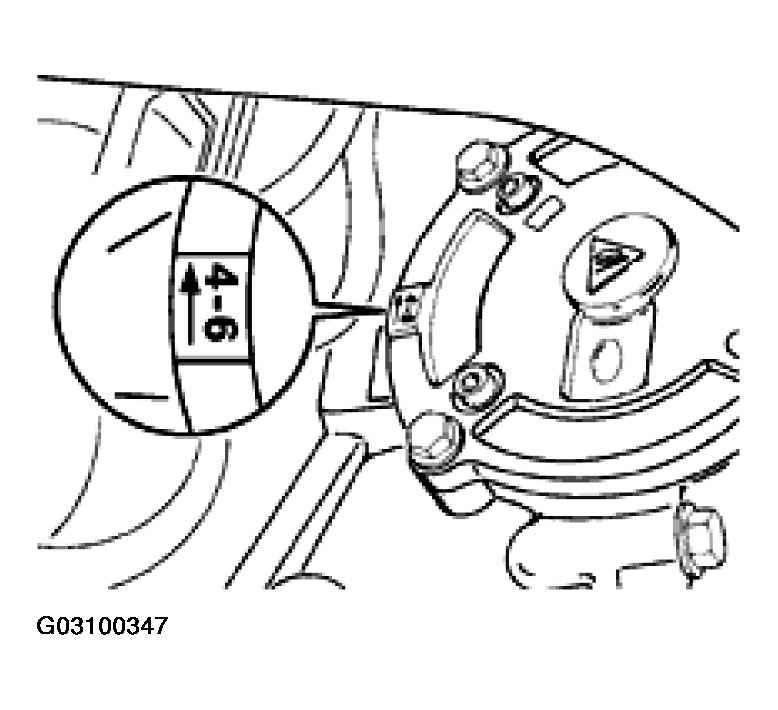

Fig 1: Identifying Arrow For Direction Of Rotation And Marking "4 - 6" On Crankcase Face (Cylinder Head 4-6)
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Tighten micro-encapsulated hexagon socket head bolts. Tightening torque 10 Nm (7.5 ftlb.)
