Additional operation for all-wheel drive

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2005 Porsche 911, 2004 Porsche 911, 2003 Porsche 911, 2002 Porsche 911, and 2001 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

The removal and installation of the engine/transmission unit is carried out in the same way as in the Carrera 2 description (Tiptronic and manual transmission) with the following additional operation.

Remove transmission support.

Fig 1: Removing Transmission Support
Courtesy of PORSCHE OF NORTH AMERICA, INC.
NOTE:
- Observe max. joint angle of 20° when removing and fitting. Furthermore, the cardan joint must not be loaded at max. deflection (stop).
- When unscrewing and tightening the cardan shaft screw connection, a second person should counter with a suitable tool (e.g. long screwdriver)!

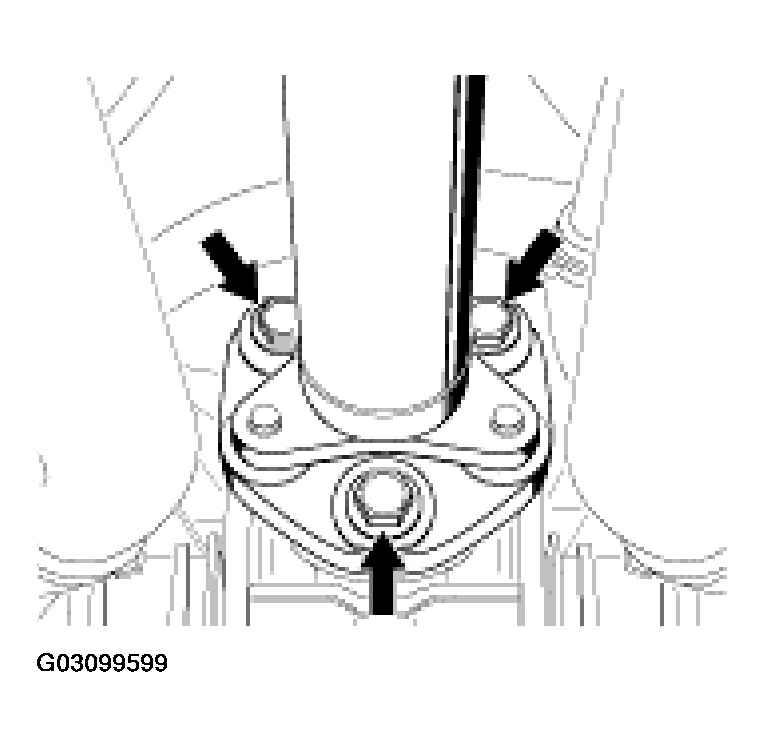

  Fig 2: Tightening Cardan Shaft Screw Connection
  Courtesy of PORSCHE OF NORTH AMERICA, INC.
- A second person is required to help when lifting out and installing the cardan shaft!
Removing and installing cardan shaft Refer to REMOVING AND INSTALLING CARDAN SHAFT .
During installation, the cardan shaft must be installed before mounting the transmission support.
