Special tools

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2005 Porsche 911, 2004 Porsche 911, 2003 Porsche 911, 2002 Porsche 911, and 2001 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

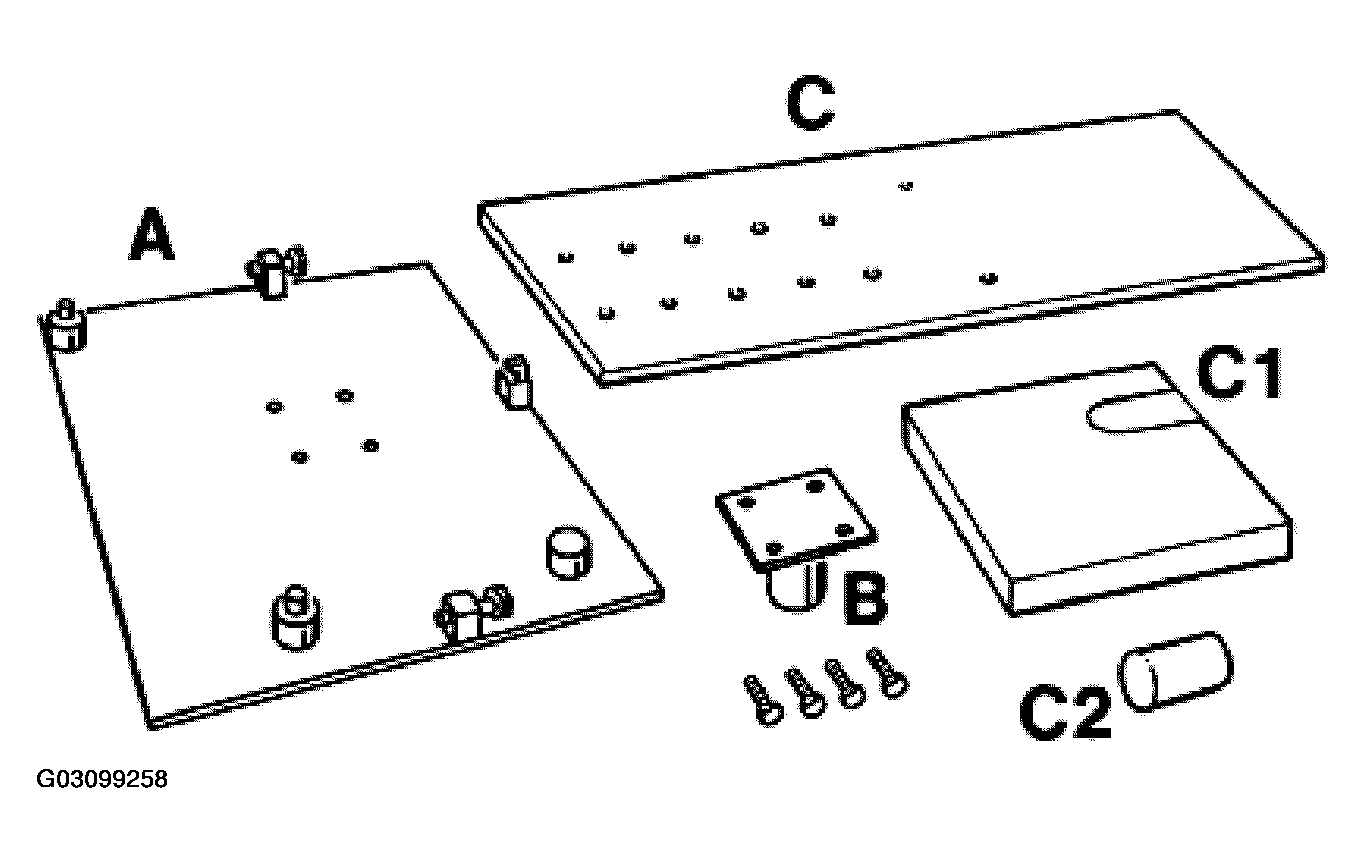

Fig 1: Identifying Special Tools (1 Of 2)

Courtesy of PORSCHE OF NORTH AMERICA, INC.

SPECIAL TOOL DESIGNATION - VEHICLE WITH TIPTRONIC TRANSMISSION (1 OF 2)

Item	Designation	Special tool	Explanation
A	Retainer plate	9592	In conjunction with workshop jack
B	Adapter 9163/2	or use adapter of transmission holding plate, special tool 9163, for the 928 model
C	Support plate	9592/1
C1	Support for Tiptronic transmission		Included in 9592/1 scope of delivery
C2	Support for manual transmission		Included in 9592/1 scope of delivery

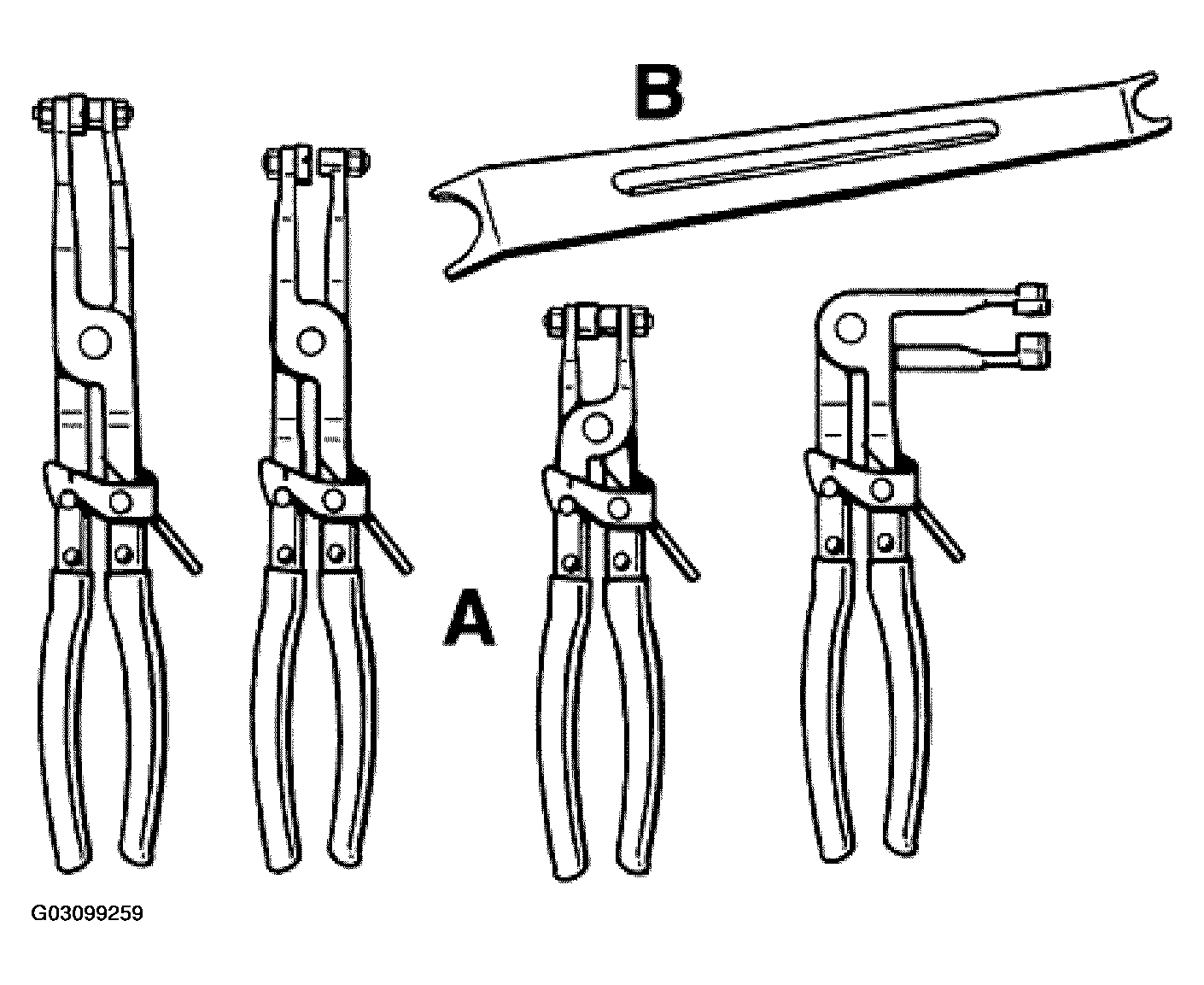

Fig 2: Identifying Special Tools (2 Of 2)

Courtesy of PORSCHE OF NORTH AMERICA, INC.

SPECIAL TOOL DESIGNATION - VEHICLE WITH TIPTRONIC TRANSMISSION (2 OF 2)

Item	Designation	Special tool	Explanation
A	Spring-band clamp pliers		E.g. Messrs. Muhr u. Bender
B	Testing tool for plug-in couplings	9623	Used to check whether the plug-in couplings are seated properly. Suitable for pressure and return lines (nominal diameter 6 and nominal diameter 10)
