Removing and installing deflection rollers for drive belt
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2005 Porsche 911, 2004 Porsche 911, 2003 Porsche 911, 2002 Porsche 911, and 2001 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
REMOVAL INSTALLATION DESIGNATION

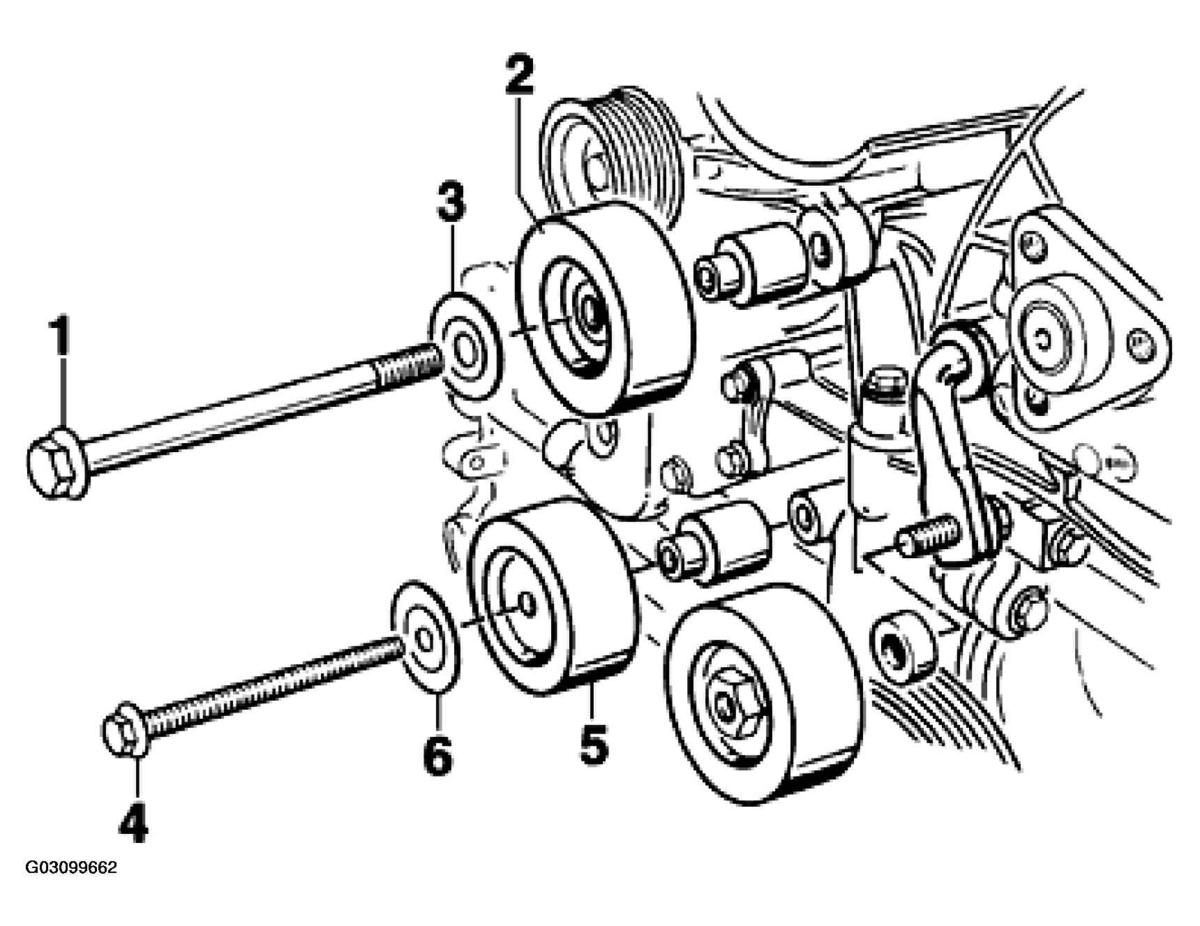

| No. | Designation | Qty. | Removal | Installation |
|---|---|---|---|---|
| 1 | Hexagon-head bolt M10 x 145 (8.8) | 1 | Tightening torque 46 Nm (34 ftlb.) | |
| 2 | Deflection roller 1 with spacer pin | 1 | Check for smooth running or roughness before undoing | |
| 3 | Cover plate | When fitting a curved cover plate, observe the installation position. The inscription must face the bolt head | ||
| 4 | Hexagon-head bolt M8 x 55 | 1 | Tightening torque 23 Nm (17 ftlb.) | |
| 5 | Deflection roller 2 with spacer pin | 1 | Check for smooth running or roughness before undoing | |
| 6 | Cover plate | 1 | When fitting a curved cover plate, observe the installation position. The inscription must face the bolt head |
