Removing and installing crankshaft sealing ring - Flywheel side: Tools
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2005 Porsche 911, 2004 Porsche 911, 2003 Porsche 911, 2002 Porsche 911, and 2001 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
- Two new tools are to be used for fitting the crankshaft sealing ring as of August 2002. These replace special tools 9609 and 9609/1.

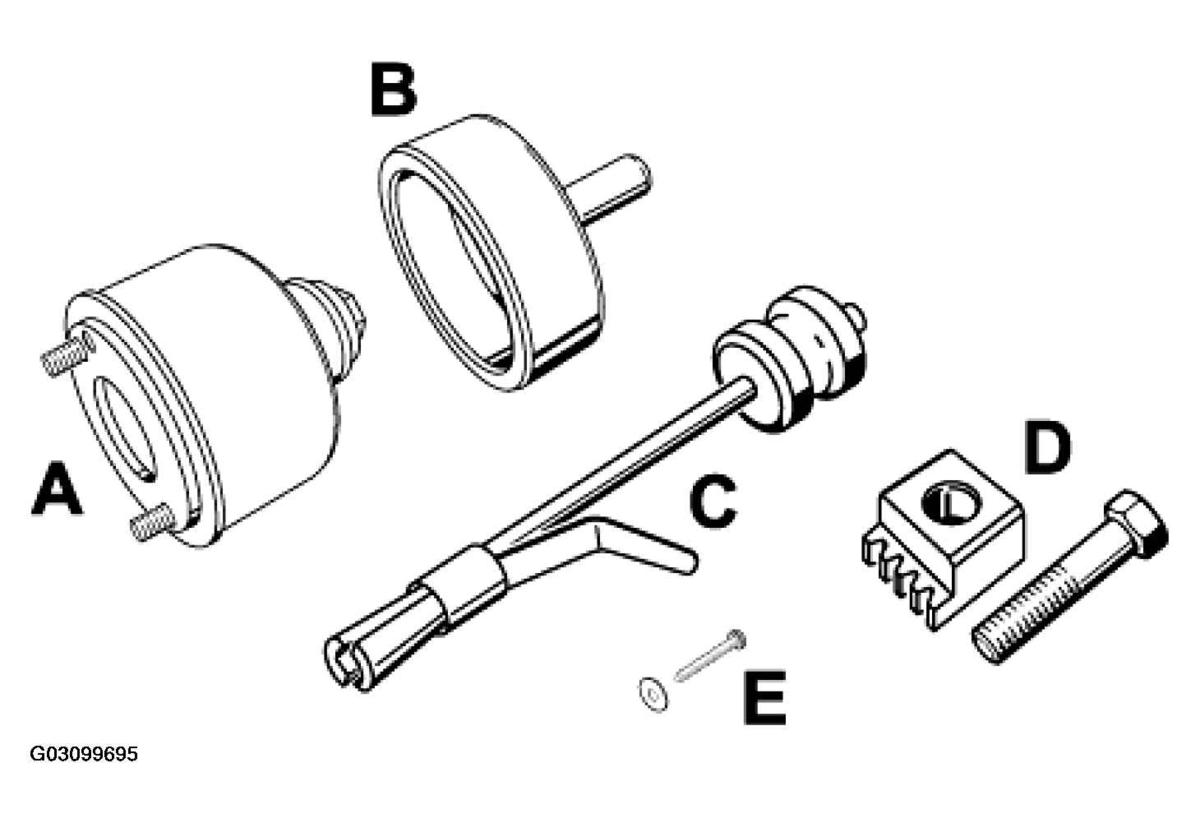

SPECIAL TOOL DESIGNATION
| Item | Special tool designation | Remarks |
|---|---|---|
| A | For fitting shaft in correct position | |
| B | For checkiing correct crankshaft bearing in crankcase | |
| C | ||
| D | Fasten with M12x50 hex-head bolt | |
| E | Sheetmetal screw with washer | Commercially available |
