Removing and installing coolant pump (engine installed): Tools

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2005 Porsche 911, 2004 Porsche 911, 2003 Porsche 911, 2002 Porsche 911, and 2001 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

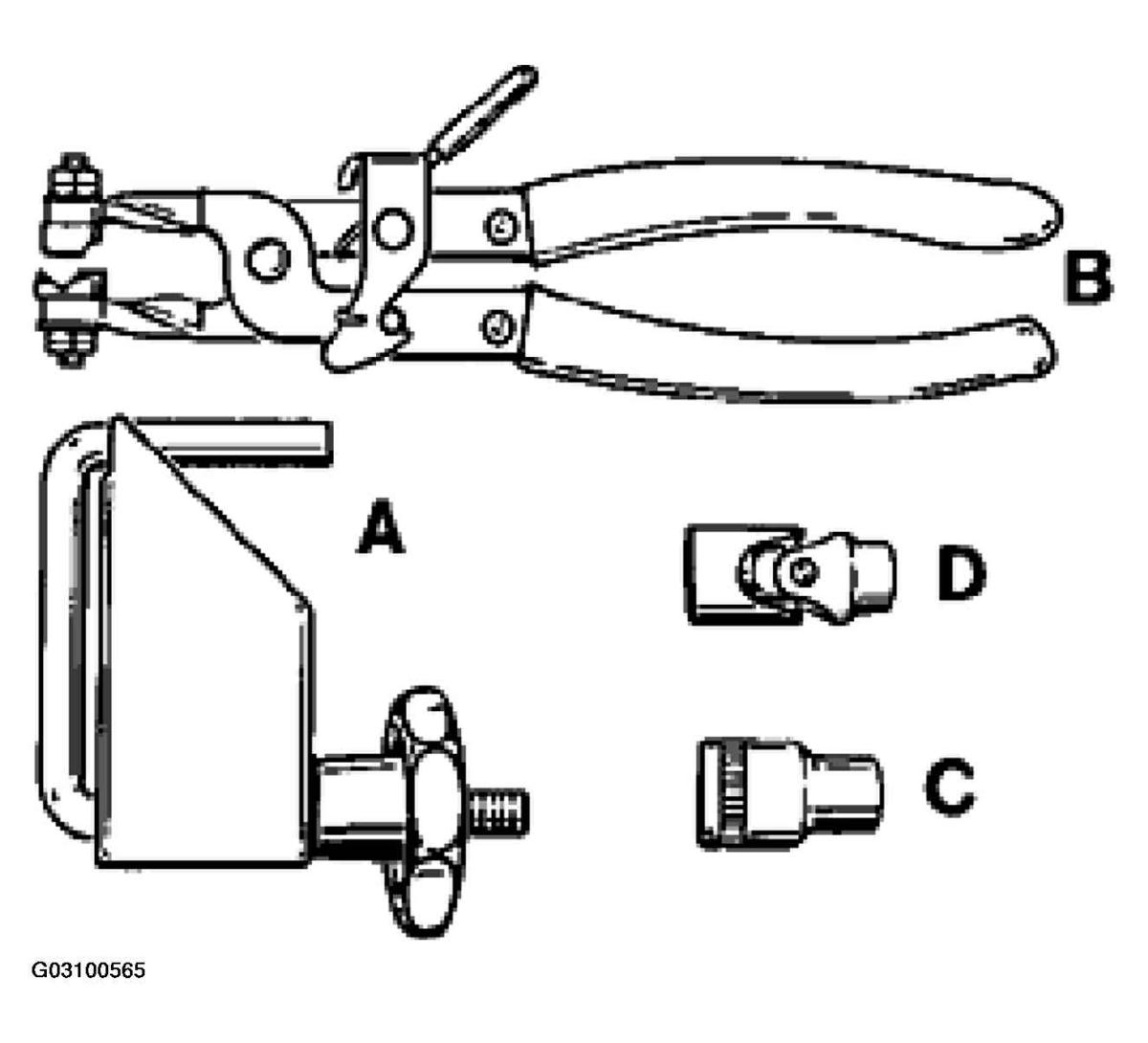

Fig 1: Identifying Coolant Pump Special Tools (1 Of 2)

Courtesy of PORSCHE OF NORTH AMERICA, INC.

SPECIAL TOOL DESIGNATION - COOLANT PUMP (1 OF 2)

Item	Designation	Explanation
A	Hose clamp
B	Spring-band clamp pliers	For opening and closing spring-band clamps
C	Flexible-head socket wrench

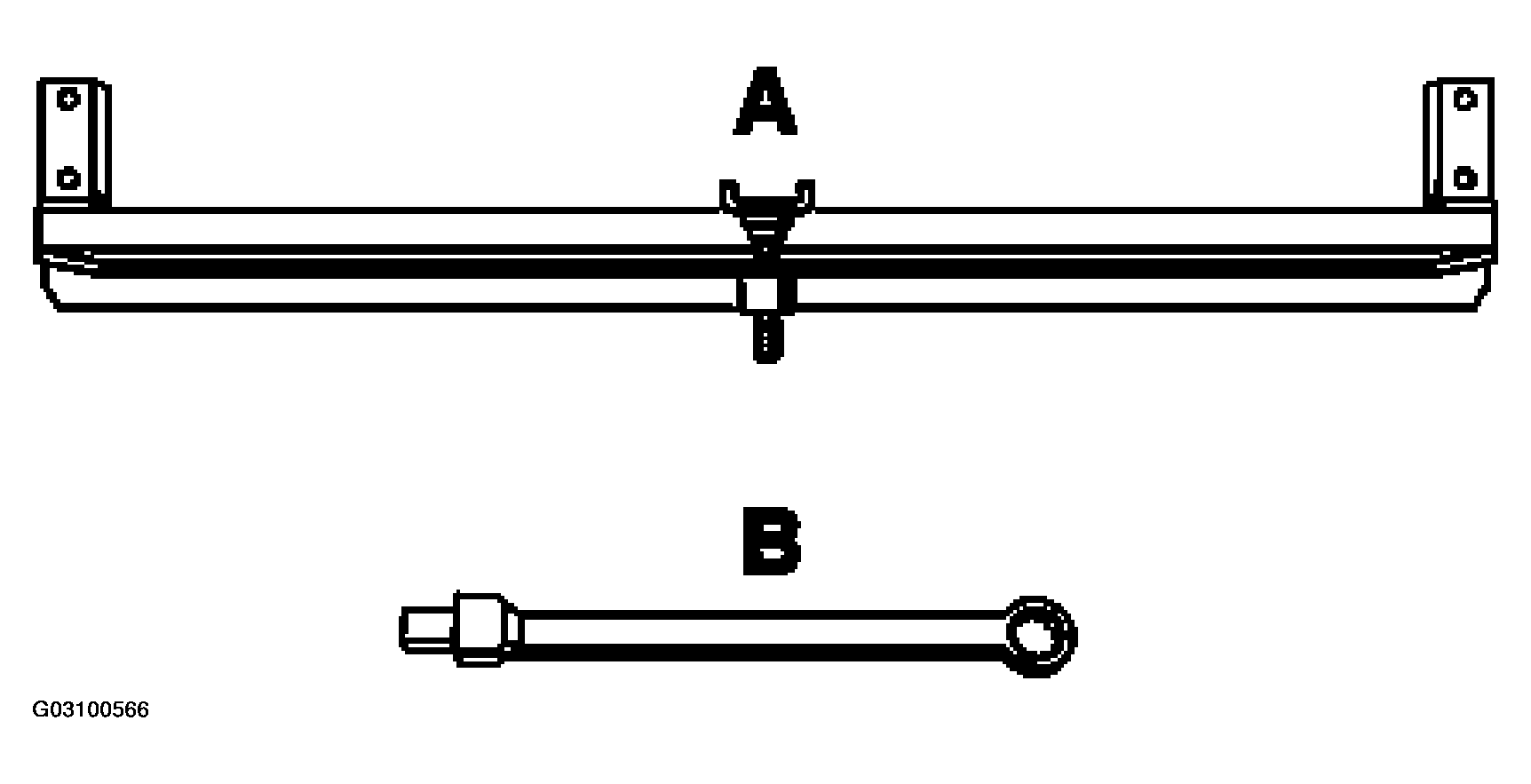

Fig 2: Identifying Coolant Pump Special Tools (2 Of 2)

Courtesy of PORSCHE OF NORTH AMERICA, INC.

SPECIAL TOOL DESIGNATION - COOLANT PUMP (2 OF 2)

Item	Designation	Special tool	Explanation
A	Retaining device	9624/1
B	Socket wrench insert	9614
