Installing coolant pump

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2005 Porsche 911, 2004 Porsche 911, 2003 Porsche 911, 2002 Porsche 911, and 2001 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

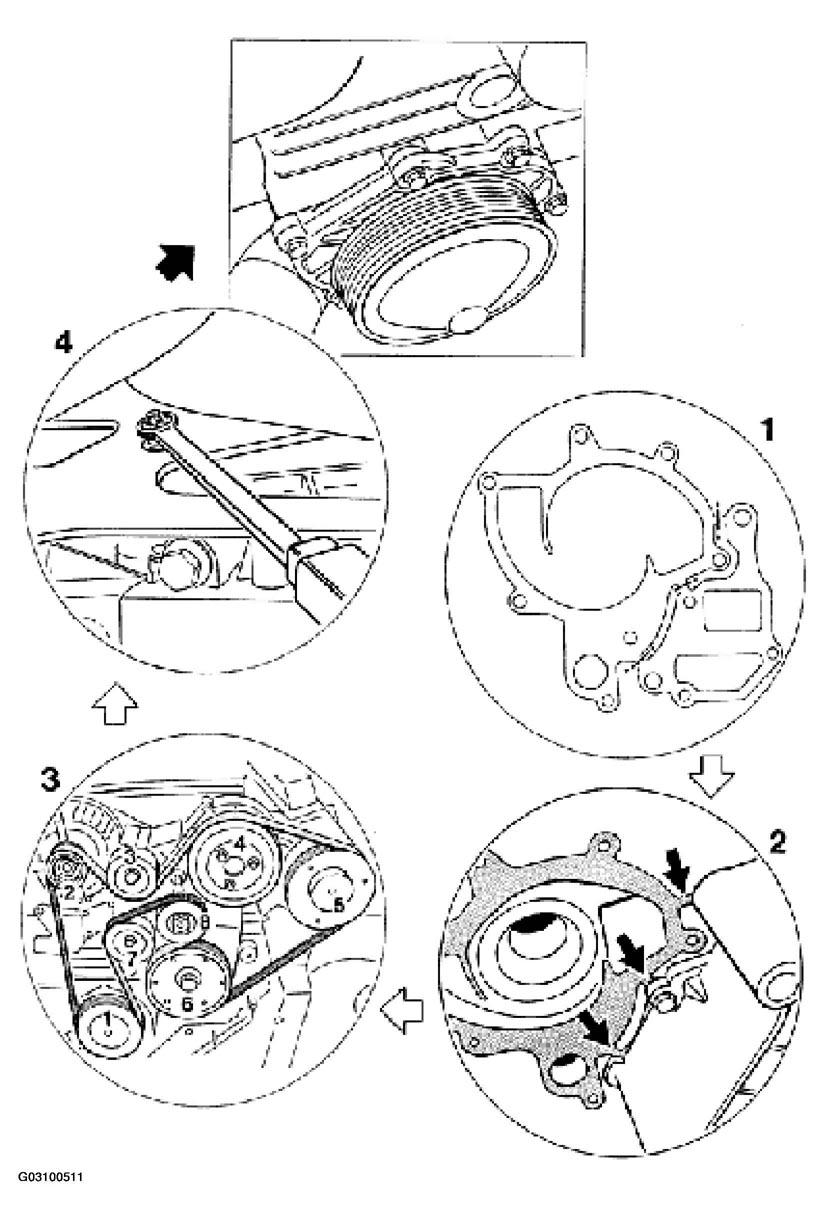

Fig 1: Installing Coolant Pump

Courtesy of PORSCHE OF NORTH AMERICA, INC.

INSTALLING COOLANT PUMP PROCEDURE

No.	Procedure	Instruction
1	Rework new replacement metal seal	Cut new replacement metal seal (combination seal) for coolant pump and water guide housing at the connecting webs.
2	Cut metal seal and install coolant pump	Cut all metal seals between coolant pump and water guide housing at the connecting webs. Position new seal and coolant pump simultaneously and fasten. Tightening torque: 10 Nm (7.5 ftlb.).
3	Fit and tension the drive belt	Fit drive belt, see REMOVING AND INSTALLING DRIVE BELT
4	Fit engine carrier	Screw in centring screw (M6) by hand. Tighten fastening nut on engine carrier using special tool 9614. Tightening torque: 30 Nm (22 ftlb.).

NOTE:

The tightening torque is specially matched to the special tool (length and lever arm).
Tighten centering screw. Fit bracket for catalytic converters. Bleed the cooling system.
