Install coolant pump
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2005 Porsche 911, 2004 Porsche 911, 2003 Porsche 911, 2002 Porsche 911, and 2001 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

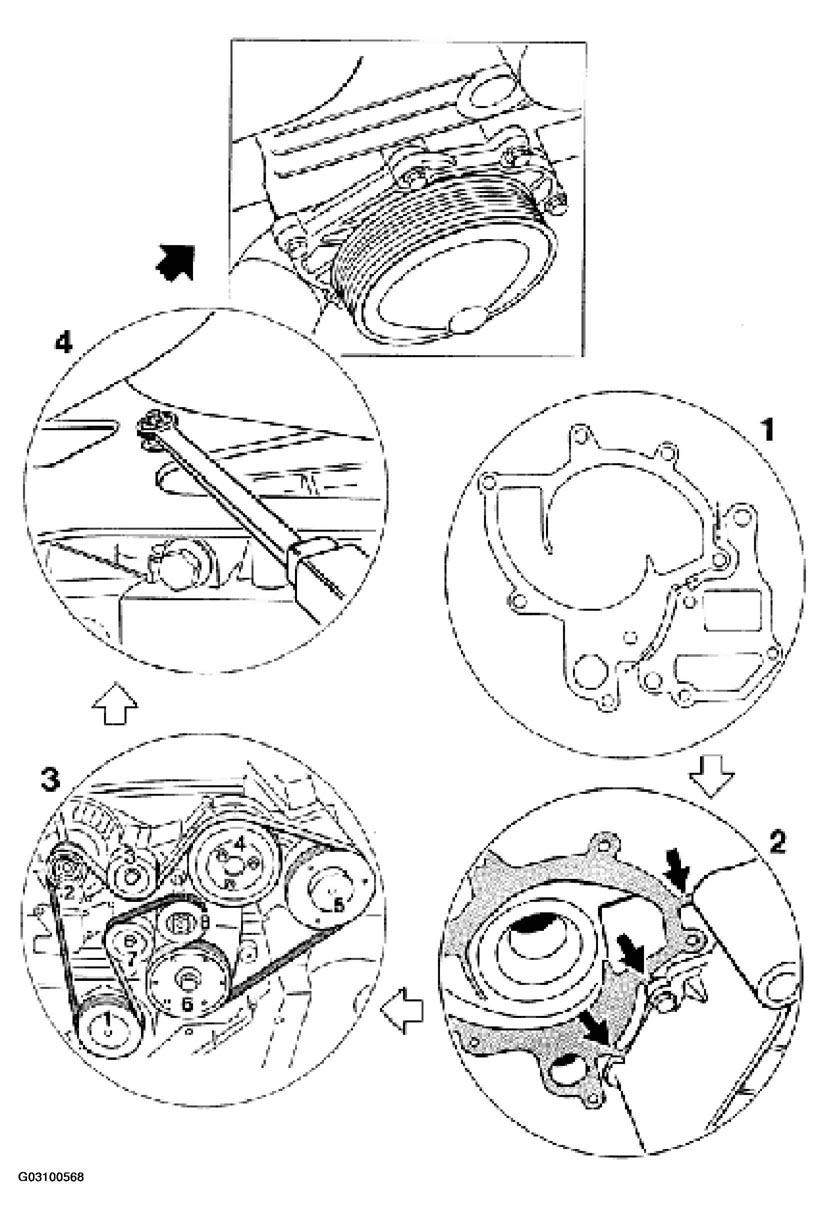

COOLANT PUMP INSTALLATION PROCEDURE (ENGINE INSTALLED)
| No. | Procedure | Instruction |
|---|---|---|
| 1 | Rework new replacement metal seal. | Cut new replacement metal seal (combination seal) for coolant pump and water guide housing at the connecting webs. |
| 2 | Cut metal seal and install coolant pump | Cut old metal seal between coolant pump and water guide housing at the connecting webs. Position new seal and coolant pump simultaneously and fasten. Tightening torque 10 Nm (7.5 ftlb.). |
| 3 | Fit and tension the drive belt | Fit drive belt, see . |
| 4 | Fit engine carrier | Screw in centring screw (M6) by hand. Tighten fastening nuts on engine carrier using special tool 9614.Tightening torque 30 Nm (22 ftlb.). |
| Note The tightening torque is specially matched to the special tool. (length and lever arm) Tighten centring screw. Fit bracket for catalytic converters. Bleed the cooling system |
