Installing and removing closure caps at cylinder head 4 - 6 - flywheel side: Removal

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2005 Porsche 911, 2004 Porsche 911, 2003 Porsche 911, 2002 Porsche 911, and 2001 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Turn shop-made extractor into center of piercing point of closure cap and pull off the cap.

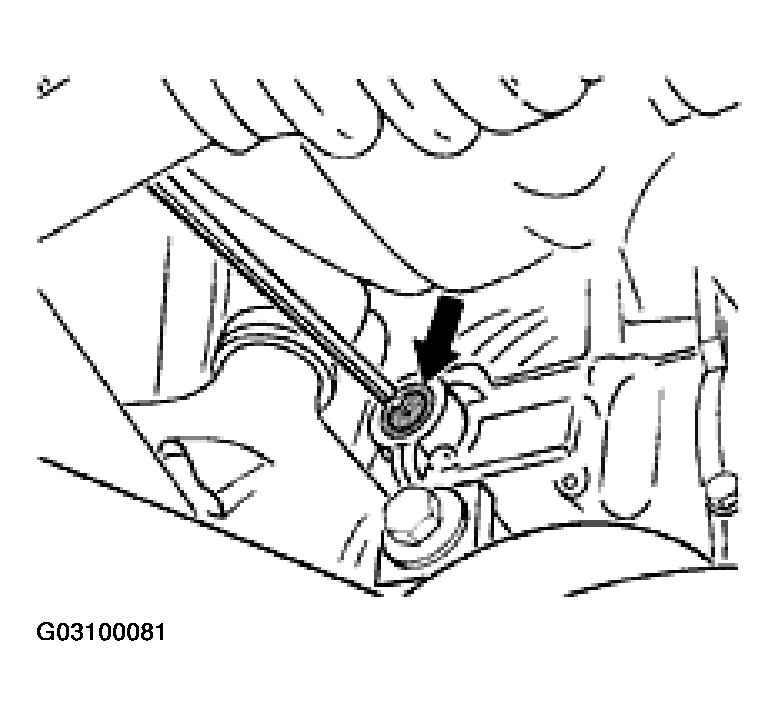

Diagram shows upper closure cap

Fig 1: Pulling Off Upper Closure Cap - Cylinder Head 4 - 6, Flywheel Side

Courtesy of PORSCHE OF NORTH AMERICA, INC.

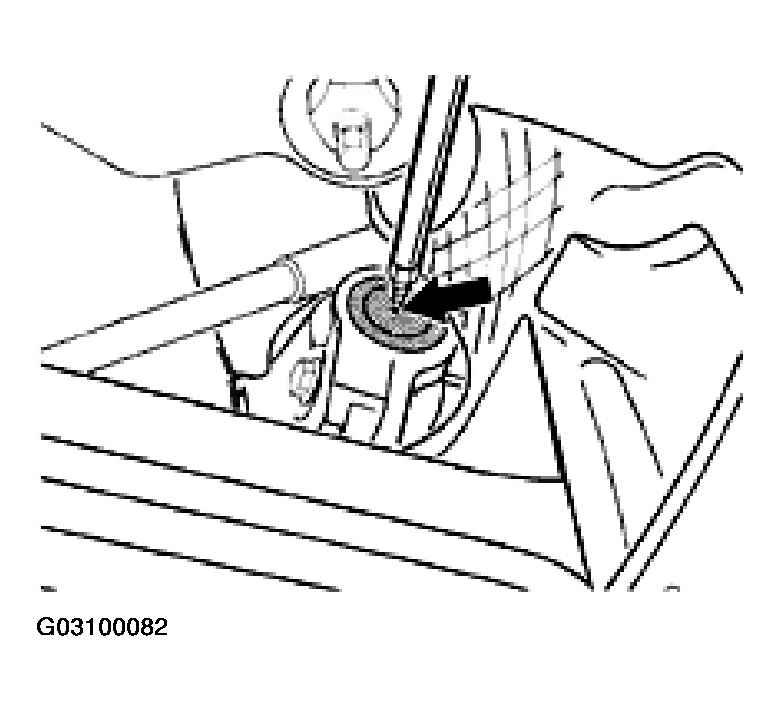

Diagram shows lower closure cap

Fig 2: Pulling Off Lower Closure Cap - Cylinder Head 4 - 6, Flywheel Side

Courtesy of PORSCHE OF NORTH AMERICA, INC.
