Engine installed

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2005 Porsche 911, 2004 Porsche 911, 2003 Porsche 911, 2002 Porsche 911, and 2001 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
  • A shop-made tool is required to pull off the closure caps with the engine installed.

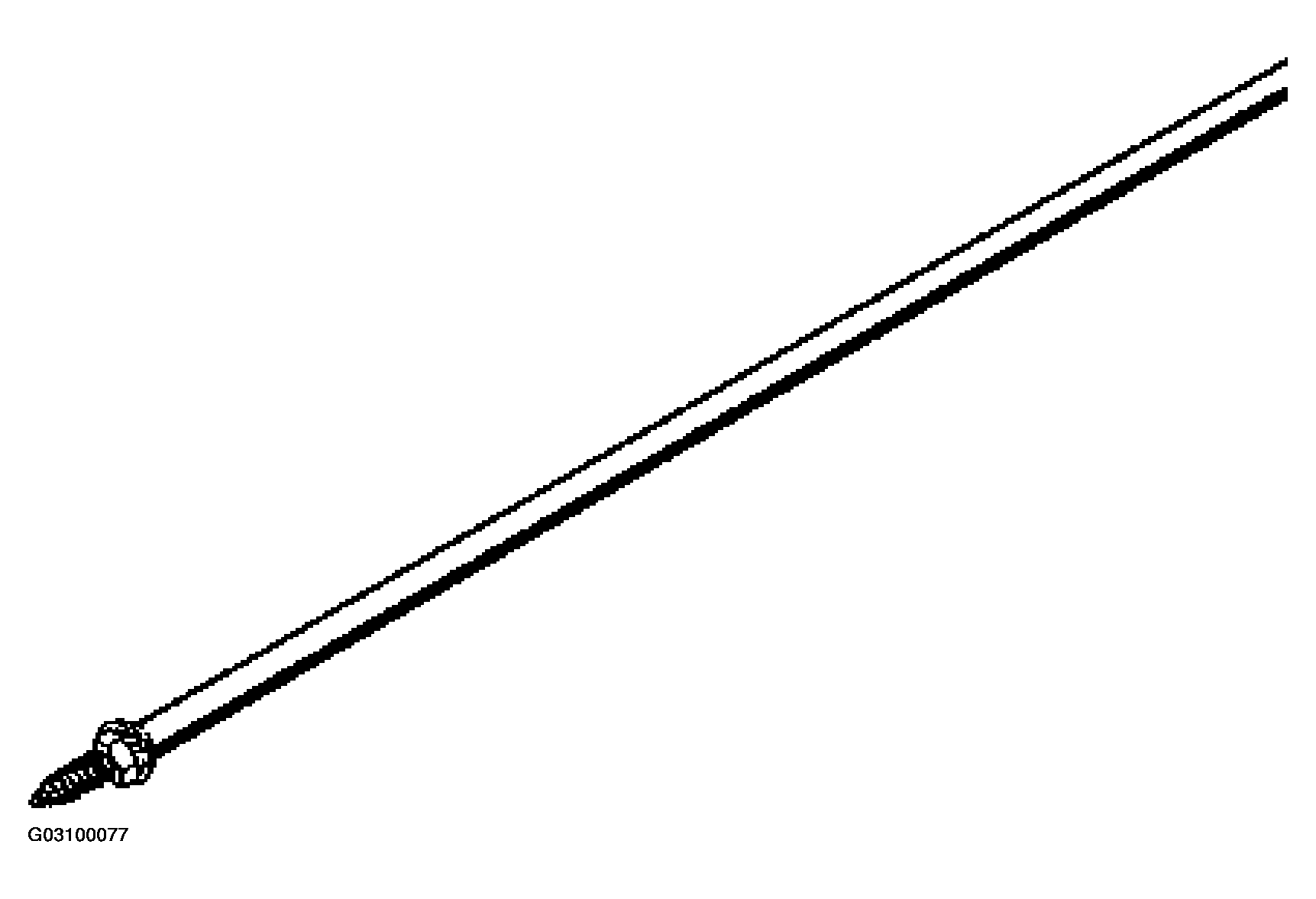

  • Making the tool: Weld a 6.3 x 14 sheetmetal screw with hexagon head onto a 1000 mm long iron rod, e.g. "PHI" 8 mm round steel bar (see Figure).
