Special tools
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2005 Porsche 911, 2004 Porsche 911, 2003 Porsche 911, 2002 Porsche 911, and 2001 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

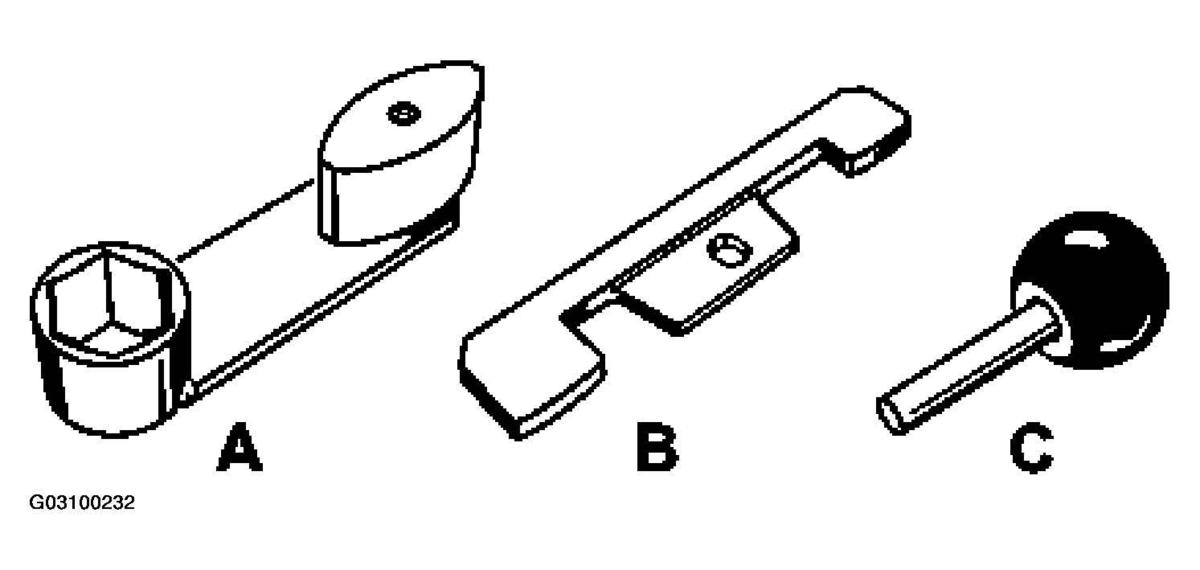

SPECIAL TOOL DESIGNATION
| Item | Designation | Special tool | Explanation |
|---|---|---|---|
| A | Retaining tool for central screw on camshaft adjuster | 9685 | |
| B | Adjustment gauge for camshafts | 9686 | Only use as a blocking tool during the pre-tightening phase of the central screw (50 Nm (37 ftlb.)) |
| C | Locating pins for belt pulley | 9595/1 | Use short locating pin |
