Allocation of chain tensioners

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2005 Porsche 911, 2004 Porsche 911, 2003 Porsche 911, 2002 Porsche 911, and 2001 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Chain tensioner on crankcase (oil filter area).
Identification: 1 ring

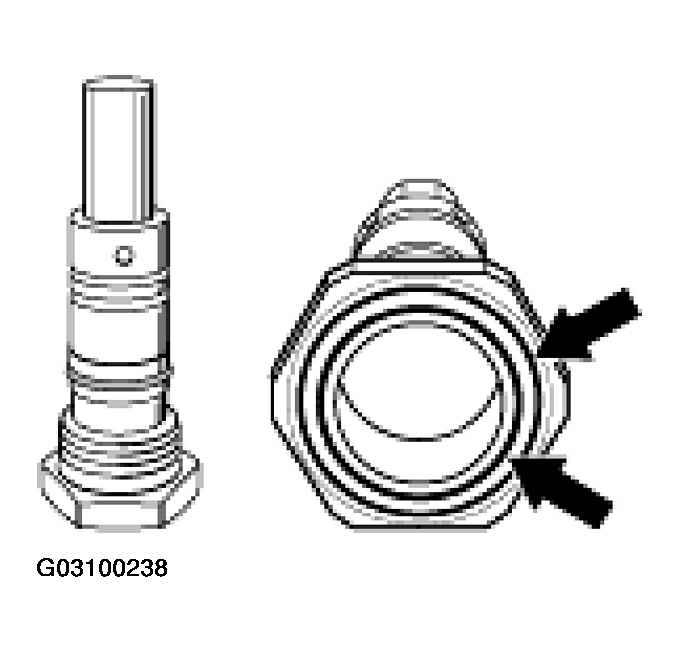

Fig 1: Identifying Chain Tensioner On Crankcase (Oil Filter Area)
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Chain tensioner on cylinder head, cylinder bank 1 - 3. Identification: 2 rings

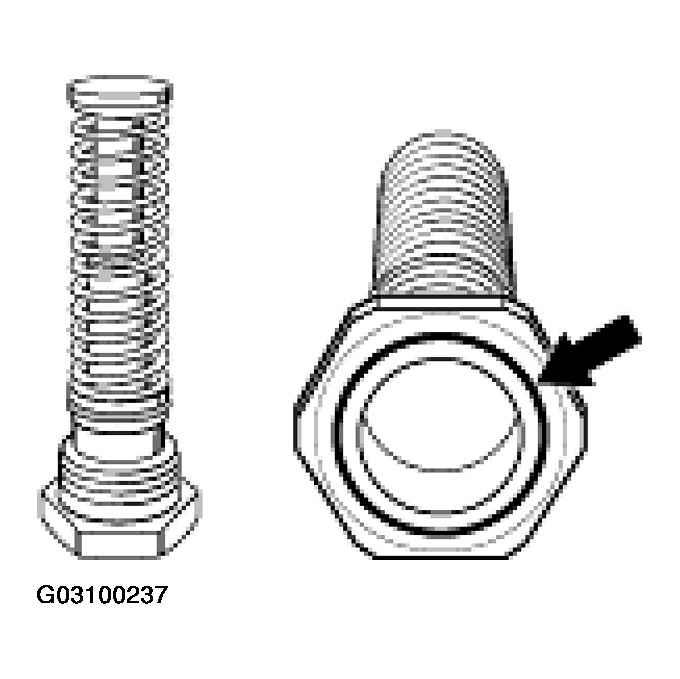

Fig 2: Identifying Chain Tensioner On Cylinder Head, Cylinder Bank 1-3
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Chain tensioner on cylinder head, cylinder bank 4 - 6. No identification. Fastened with hexagon socket head bolt.

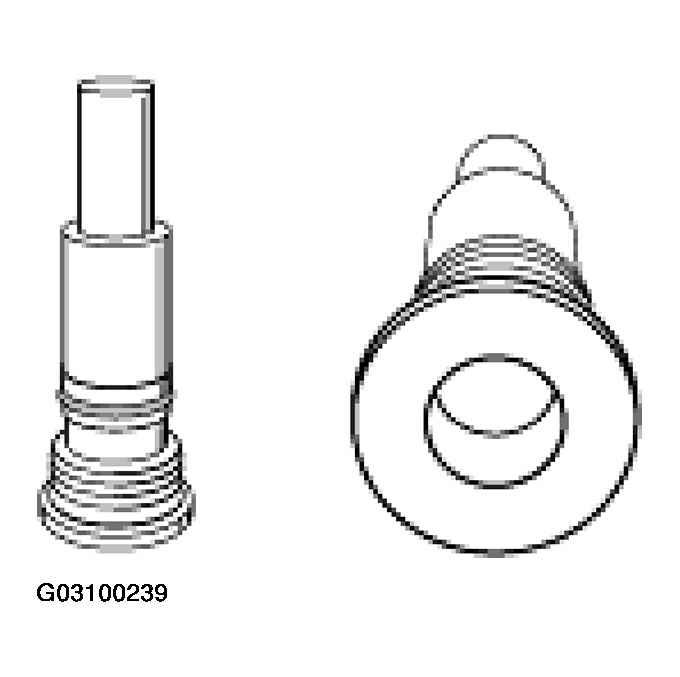

Fig 3: Identifying Chain Tensioner On Cylinder Head, Cylinder Bank 4-6
Courtesy of PORSCHE OF NORTH AMERICA, INC.

Tightening torque for chain tensioners: 80 Nm (59 ftlb.)
