Allocation of camshaft adjustment device on inlet camshafts

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2005 Porsche 911, 2004 Porsche 911, 2003 Porsche 911, 2002 Porsche 911, and 2001 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Camshaft adjustment device on inlet camshaft, cylinder bank 1 - 3

NOTE: Side 1 - 3: the arrow should be attached in anti-clockwise position

Designation, side 1-3:

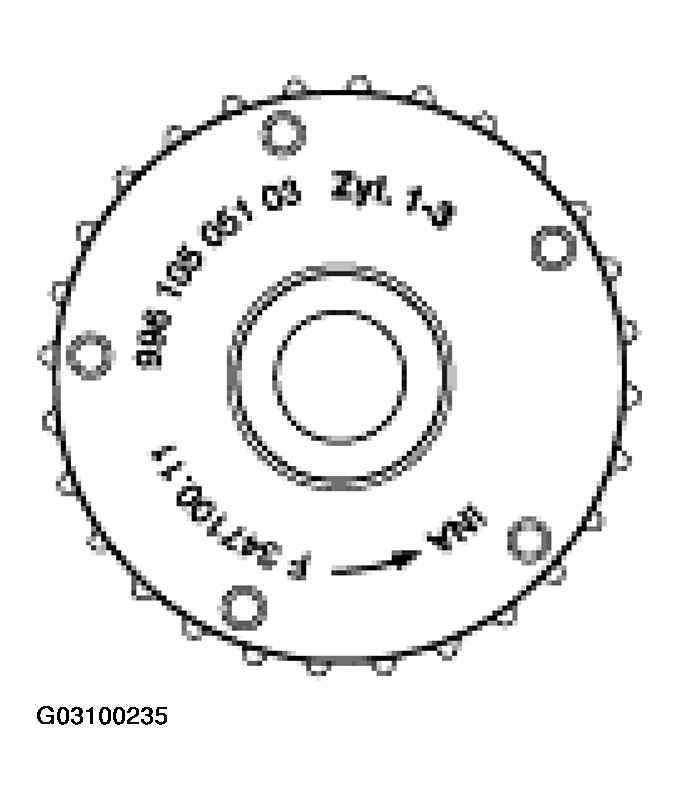

Fig 1: Identifying Camshaft Adjustment Device (Cylinder Bank 1-3)
Courtesy of PORSCHE OF NORTH AMERICA, INC.

Part number, cylinder bank, manufacturer information, direction of rotation of engine (arrow), production date.

Camshaft adjustment device on inlet camshaft, cylinder bank 4 - 6

NOTE:

Side 4 - 6: the arrow should be attached in anti-clockwise position

Designation, side 4-6:

Fig 2: Identifying Camshaft Adjustment Device (Cylinder Bank 4-6)
Courtesy of PORSCHE OF NORTH AMERICA, INC.

Part number, cylinder bank, manufacturer information, direction of rotation of engine (arrow), production date.
