Installing belt tensioner

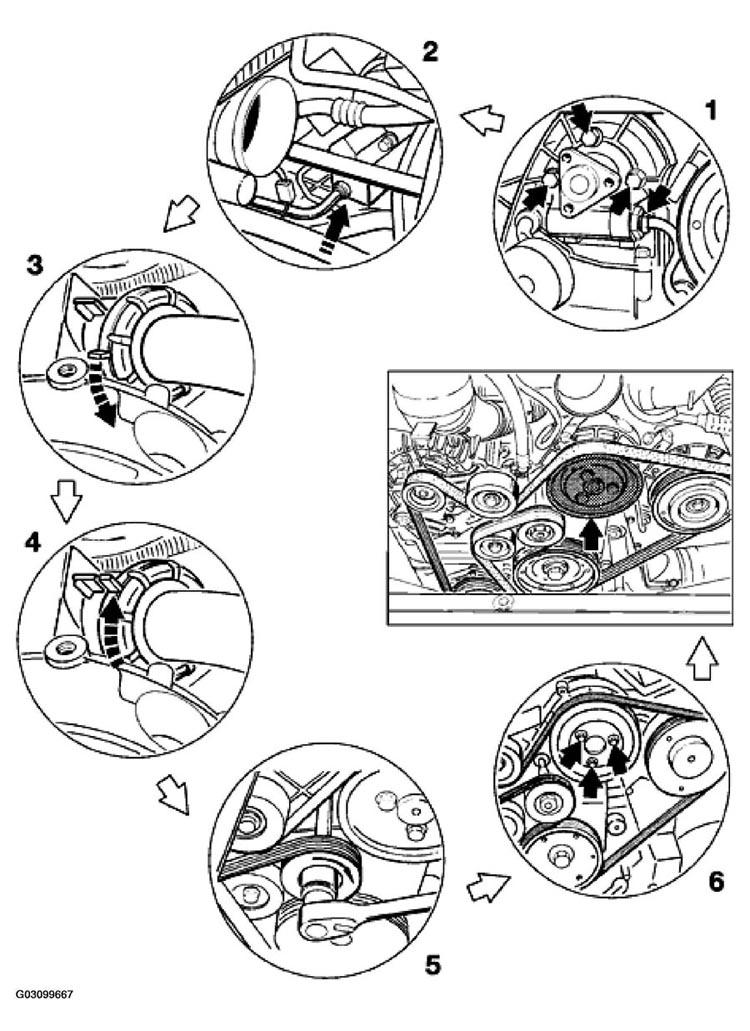

INSTALLATION PROCEDURE - BELT TENSIONER
| No. | Procedure | Instructions |
|---|---|---|
| 1 | Installing hydraulic pump | Fasten bracket with tensioning element on the crankcase. Tightening torque: 23 Nm (17 ftlb.) Insert hydraulic pump from the rear and fasten. Tightening torque: 23 Nm (17 ftlb.) |
| 2 | Fitting steering return line | Insert line into the plug-in coupling in a straight line. Then pull slightly to ensure that the connection is properly locked. |
| 3 | Fitting supply tank for power steering system | Turn bayonet lock to its initial position. |
| 4 | Fitting supply tank for power steering system | Remove plug. Position tank (observe markings). Lock bayonet lock. |
| 5 | Fitting drive belt | Fit belt pulley of the hydraulic pump and screw in hexagon-head bolts. Fit drive belt. Assembly instructions on |
| 6 | Fastening belt pulley for hydraulic pump | Tighten three hexagon-head bolts. Tightening torque: 23 Nm (17 ftlb.) |
| Note The belt pulley can also be held and tightened with a restraining strap before the drive belt is fitted. | ||
| Fasten air conditioning compressor. Tightening torque: 28 Nm (21 ftlb.) Fasten generator. Fit throttle body and air cleaner assembly. |
