Removing and installing belt pulley for crankshaft: Notes
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2005 Porsche 911, 2004 Porsche 911, 2003 Porsche 911, 2002 Porsche 911, and 2001 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
Never work on a hot engine as contact with hot components can cause injury!

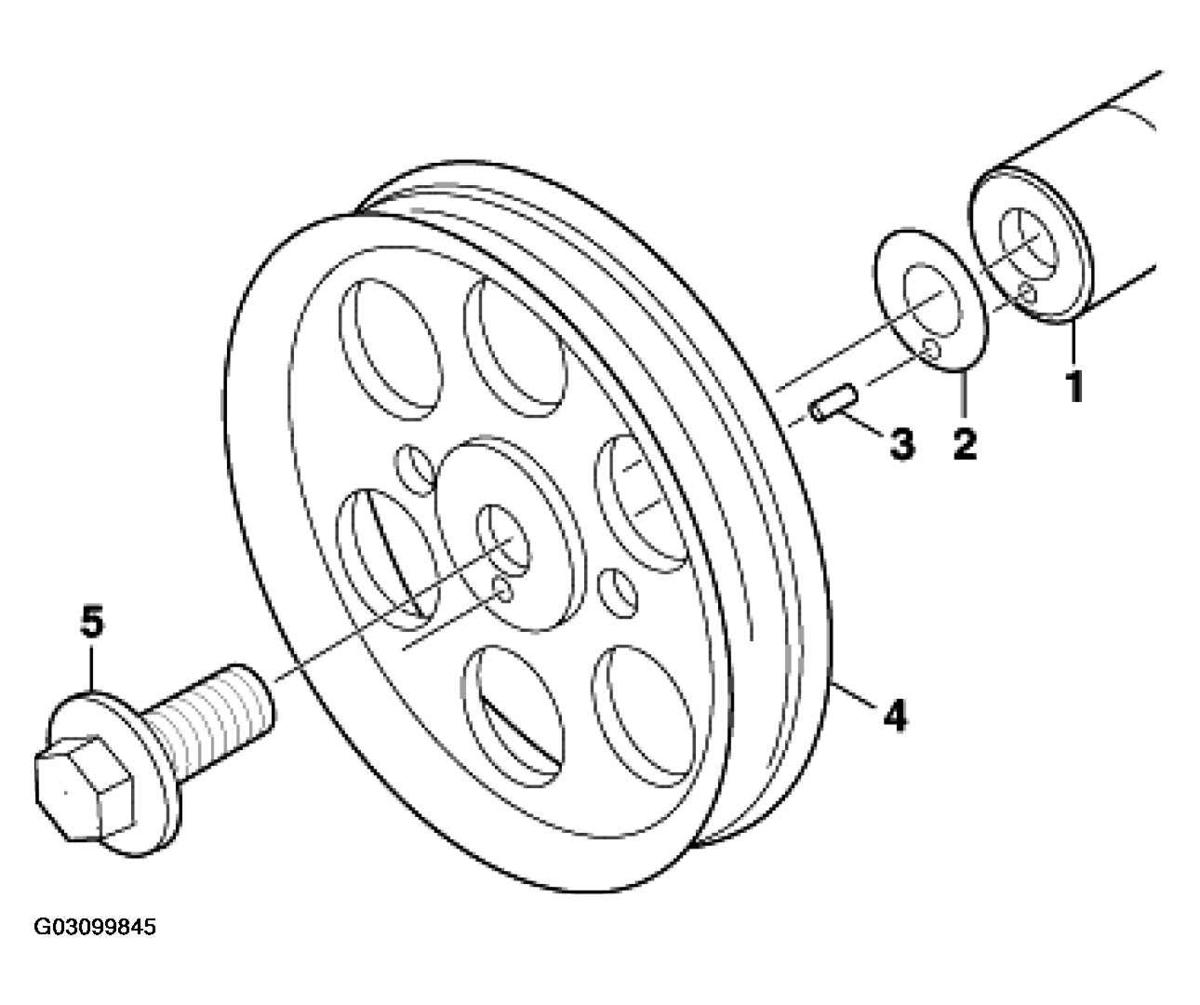

CRANKSHAFT BELT PULLEY REMOVAL/INSTALLATION
| No. | Designation | Qty. | Removal | Installation |
|---|---|---|---|---|
| -1- | Crankshaft journal | Straight pin of belt pulley must align with bore of crankshaft journal | ||
| -2- | Friction plate | 1 | Check for signs of damage | Fit between belt pulley and crankshaft flange! Replace if necessary |
| -3- | Straight pin | 1 | Check for signs of damage | Replace if necessary |
| -4- | Belt pulley | 1 | Note installation position (straight pin)! | |
| -5- | Collar screw | 1 | Replace |
