Removing and installing bearing cover for intermediate shaft, as of MY 2002: Notes

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2005 Porsche 911, 2004 Porsche 911, 2003 Porsche 911, 2002 Porsche 911, and 2001 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

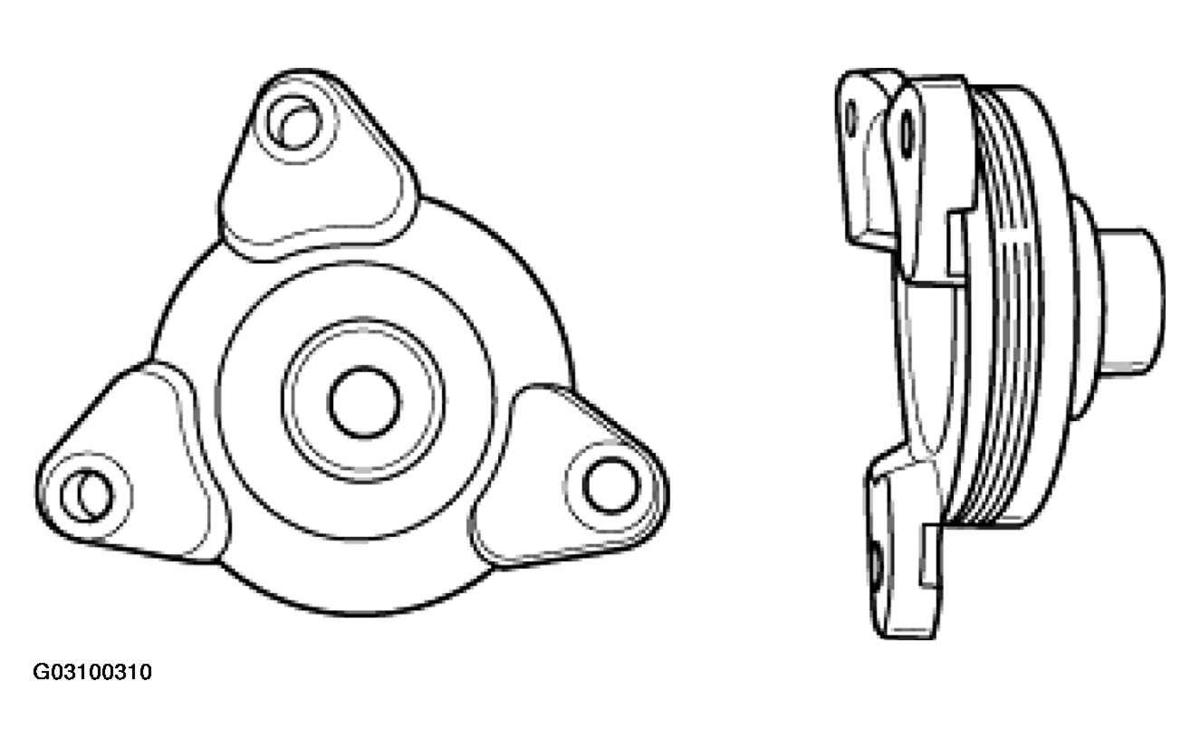

Fig 1: Identifying Bearing Cover

G03100310

Courtesy of PORSCHE OF NORTH AMERICA, INC.

CAUTION:

After removal of the chain tensioner, the crankshaft must not be turned under any circumstances, because otherwise the timing chain may jump over!
Danger of engine damage!

NOTE:

As from model year 2002, it will only be possible to remove the bearing cover with the engine installed in manual transmission vehicles!
In Tiptronic vehicles, the complete engine/transmission unit must be removed!

Preliminary work

NOTE:

Note the work instructions for disconnecting and reconnecting the battery.
Disconnect the battery, see WORK INSTRUCTIONS AFTER DISCONNECTING THE BATTERY .
Drain engine oil (insert the oil drain plug again with a new aluminum sealing ring and tighten with a tightening torque of 50 Nm (37 ftlb.).

Tiptronic:

Remove and install the engine. Refer to REMOVING AND INSTALLING ENGINE AS FROM MY 02 (TIPTRONIC TRANSMISSION) .
Remove transmission. Refer to REMOVING AND REFITTING THE TRANSMISSION (FROM MY 2002) .

Manual transmission:

Remove transmission. Refer to INSTALLING AND REMOVING TRANSMISSION G96/00 AND G96/01 .
