Removing and installing air/oil separator: Notes
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2005 Porsche 911, 2004 Porsche 911, 2003 Porsche 911, 2002 Porsche 911, and 2001 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
Engine removed
Engine in working position (engine turned 180°)

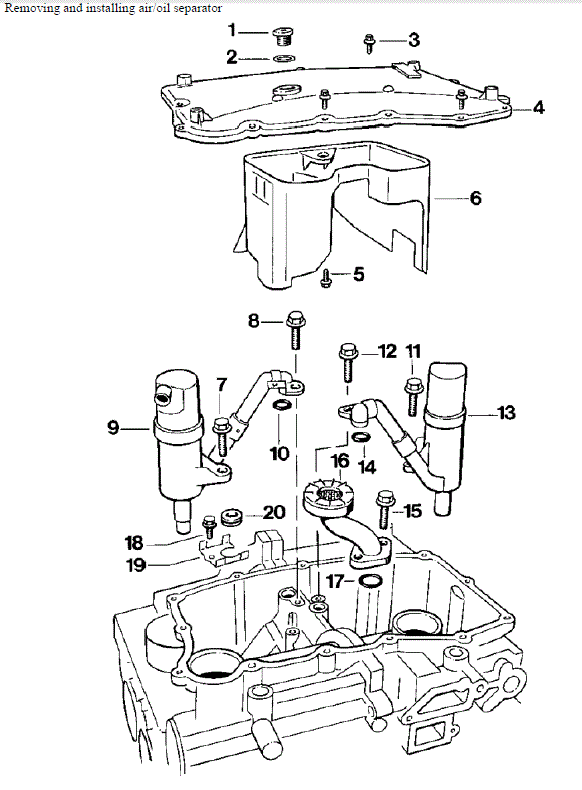

AIR/OIL SEPARATOR REMOVAL INSTALLATION
| No. | Designation | Qty. | Removal | Installation |
|---|---|---|---|---|
| 1 | Oil drain plug M18 x 1.5 | 1 | ||
| 2 | Sealing ring A18 x 24 | 1 | Always replace | |
| 3 | Hexagon-head bolt M6 x 16 | 13 | ||
| 4 | Oil pan | 1 | Clean sealing surface and apply silicone bead | |
| 5 | Hexagon-head bolt M6 x 16 | 3 | ||
| 6 | Bulkhead box | 1 | ||
| 7 | Hexagon-head bolt M6 x 20 | 1 | ||
| 8 | Hexagon-head bolt M6 x 20 | 1 | ||
| 9 | Air/oil separator | 1 | ||
| 10 | O-ring 12 x 2 | |||
| 11 | Hexagon-head bolt M6 x 20 | 1 | ||
| 12 | Hexagon-head bolt M6 x 12 | 1 | ||
| 13 | Air/oil separator | 1 | ||
| 14 | O-ring 12 x 2 | 1 | Lightly oiled | |
| 15 | Hexagon-head bolt M6 x 20 (micro-encapsulated) | 2 | Replace | |
| 16 | Oil suction pipe | 1 | ||
| 17 | O-ring 30 x 3 | Lightly oiled | ||
| 18 | Hexagon-head bolt M6 x 12 | 1 | ||
| 19 | Holder for oil probe | 1 | ||
| 20 | Grommet 9.5 x 18 x 1.2 | 1 |
