Sealing the oil pan

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2005 Porsche 911, 2004 Porsche 911, 2003 Porsche 911, 2002 Porsche 911, and 2001 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Only "Drei Bond" silicone type 1209, part No.

000.043.203.73 (30-gram tube) should be used as the surface seal. After application of surface seal (silicone bead), screw together within five minutes.

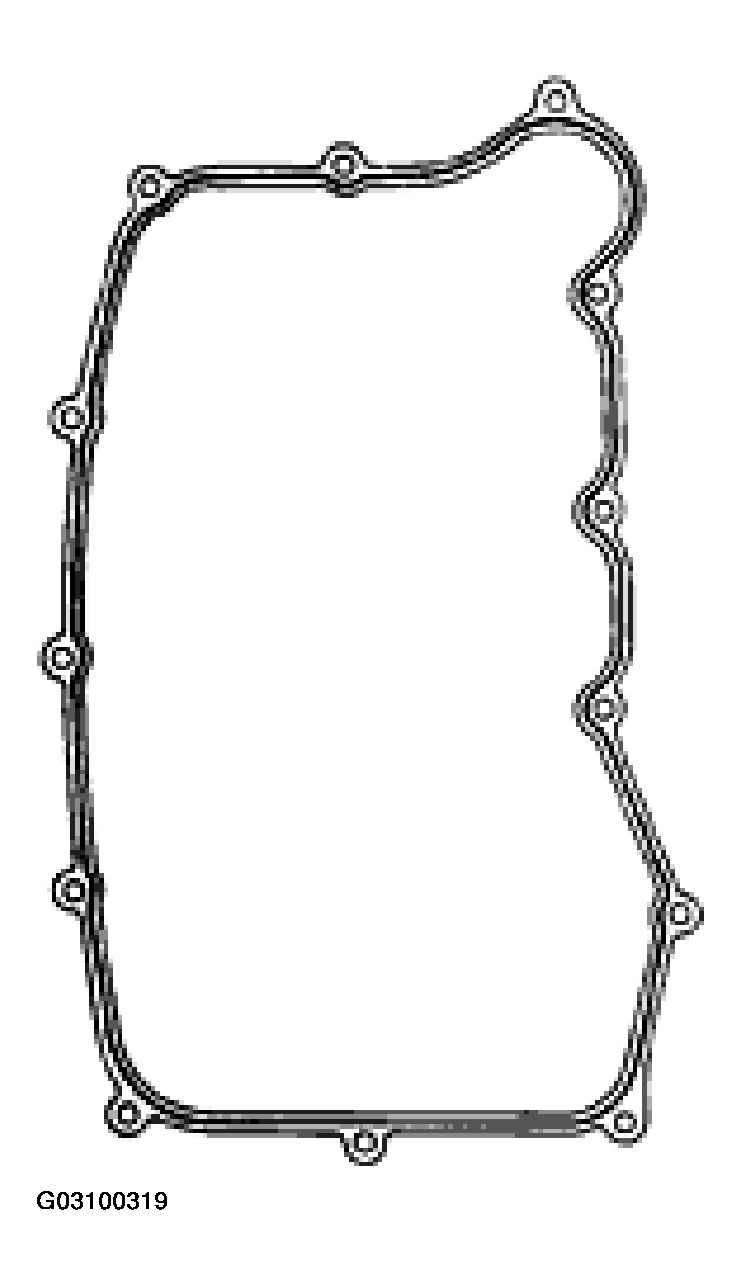

Fig 1: Sealing Oil Pan

Courtesy of PORSCHE OF NORTH AMERICA, INC.
