Oil/coolant mixing

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2005 Porsche 911, 2004 Porsche 911, 2003 Porsche 911, 2002 Porsche 911, and 2001 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Proceed as follow in the case of the complaint "Coolant in the engine oil": If coolant has entered the engine oil as a result of a leaking oil cooler, all guide and tensioning rails must be checked. Damaged and well worn rails must be replaced.

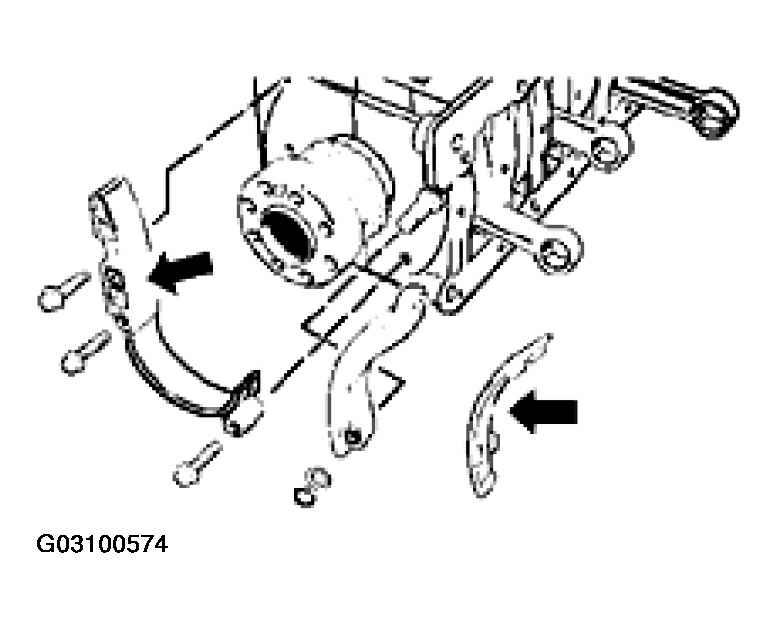

Fig 1: Identifying Guides And Tensioning Rails (1 Of 2)
Courtesy of PORSCHE OF NORTH AMERICA, INC.

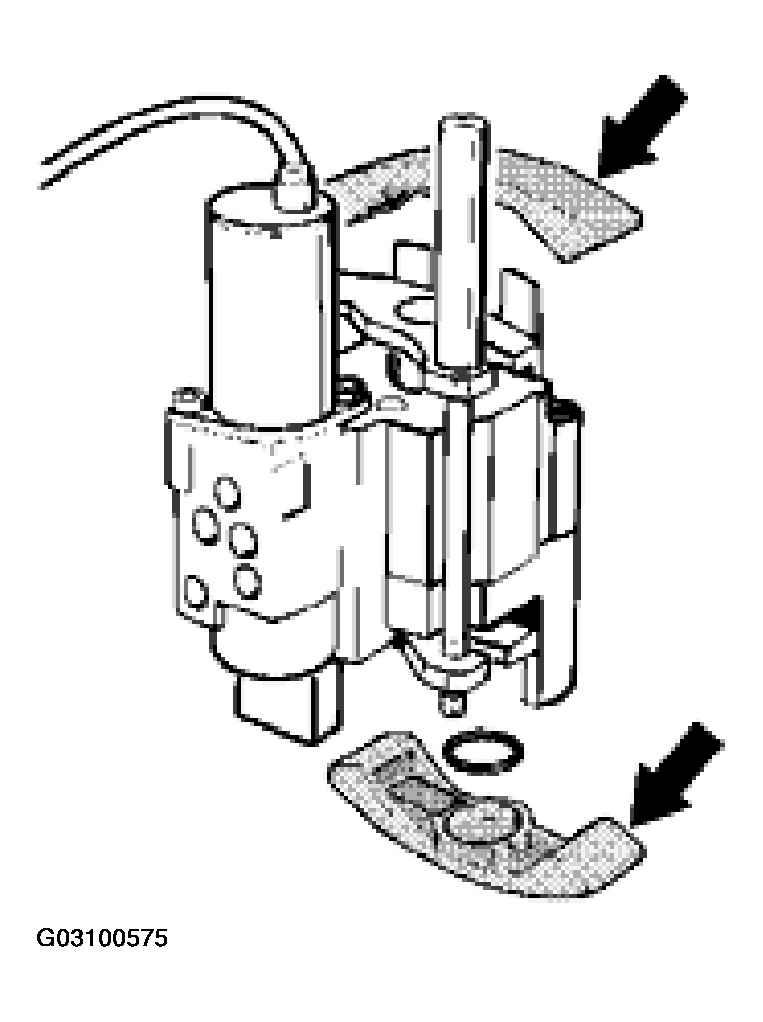

Fig 2: Identifying Guides And Tensioning Rails (2 Of 2)
Courtesy of PORSCHE OF NORTH AMERICA, INC.
The connecting-rod bearings must always be replaced.

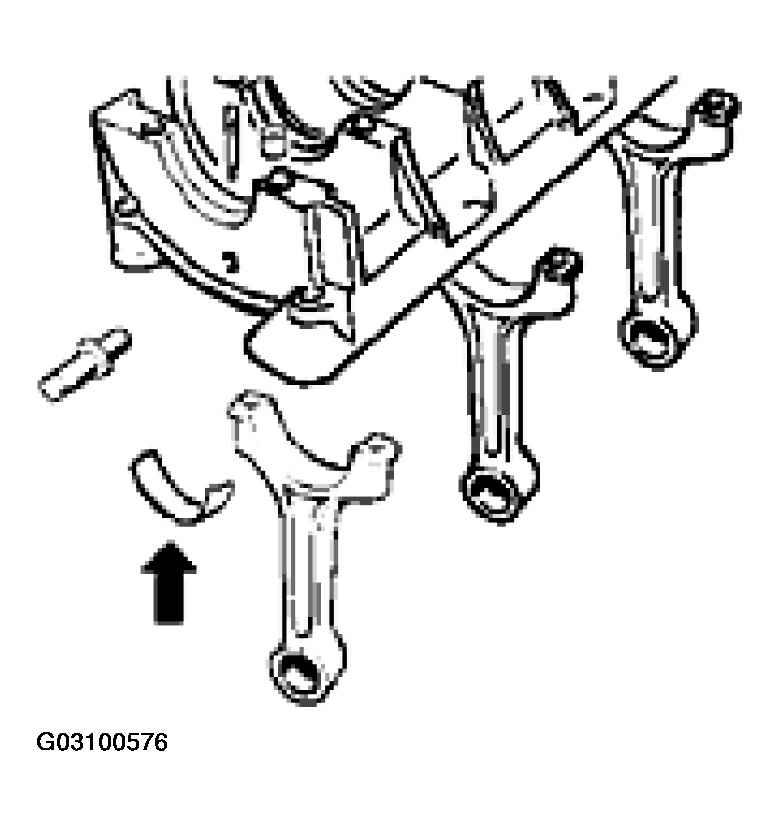

Fig 3: Identifying Connecting-Rod Bearings
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Inspect the bearing shells of the crankshaft for scoring and replace if necessary
Check the camshaft bearing, replace cylinder heads if necessary.
