Installing valve tappets - Cylinder bank 1 - 3

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2005 Porsche 911, 2004 Porsche 911, 2003 Porsche 911, 2002 Porsche 911, and 2001 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
  1. Check guide for damage. Refer to: CHECKING GUIDE FOR VALVE TAPPET , Serv. No. 15 59 02
  2. Fit guide. Tighten pan-head screws (M6 x 35) from the inside to the outside. Tightening torque 10 Nm (7.5 ftlb.)
  3. Lightly oil the valve tappet and fit it in the guide.
  4. Lay the complete unit, camshafts with chain and tensioning element in the cylinder head. The groove or tab of the camshaft position sensor cover must face upward If the allocation should be uncertain, e.g. chain jumped over, reallocation is necessary. Refer to: COMPLETING CAMSHAFTS .

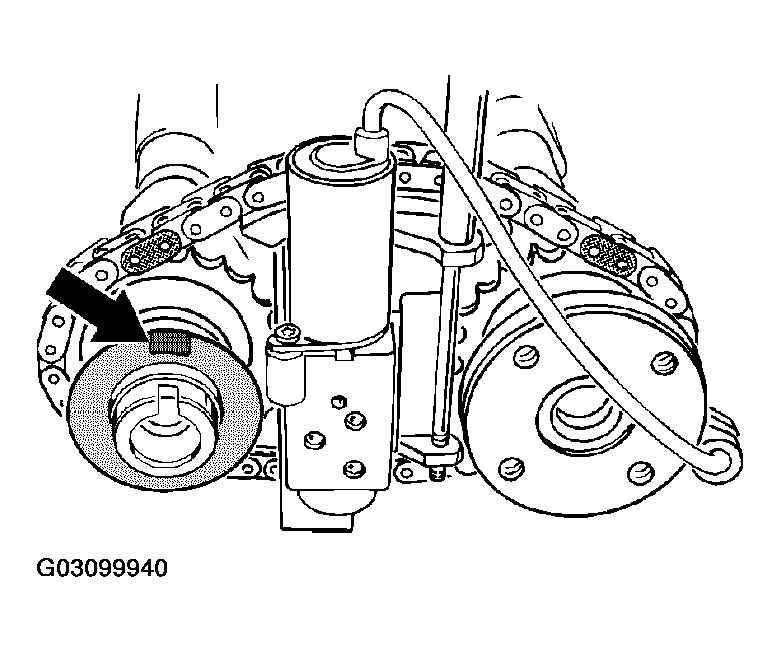

    Fig 1: Identifying Camshafts With Chain And Tensioning Element
    G03099940Courtesy of PORSCHE OF NORTH AMERICA, INC.
  5. Special tool 9611; fit holding-down device for camshafts. Fit auxiliary screws M6 x 45 with washers and tighten to 10 Nm (7.5 ftlb.).

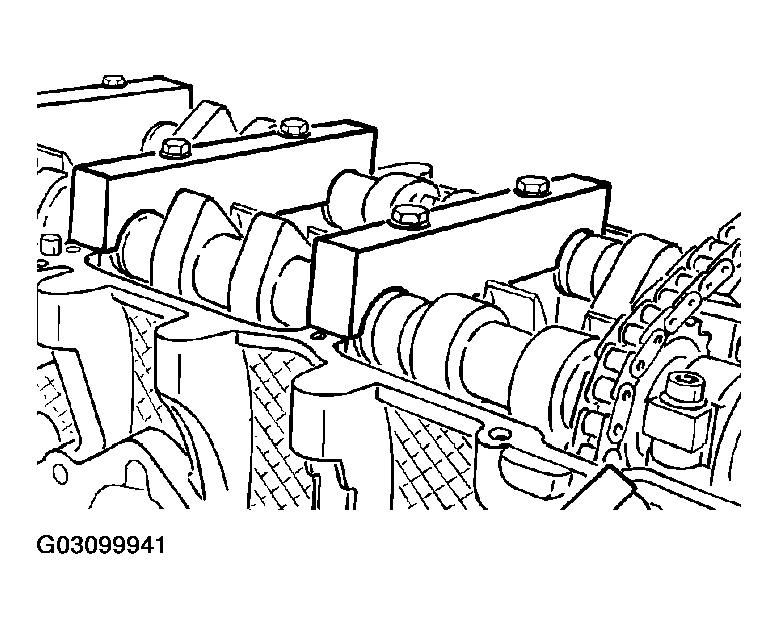

    Fig 2: Fitting Holding-Down Device For Camshafts
    G03099941Courtesy of PORSCHE OF NORTH AMERICA, INC.
  6. Check dowel sleeves (4 ea.) of the bearing saddles to ensure that they are properly seated in the cylinder head. Oil bearing surface. Fit bearing saddles in the correct position and tighten evenly. Tightening torque 10 Nm (7.5 ftlb.)

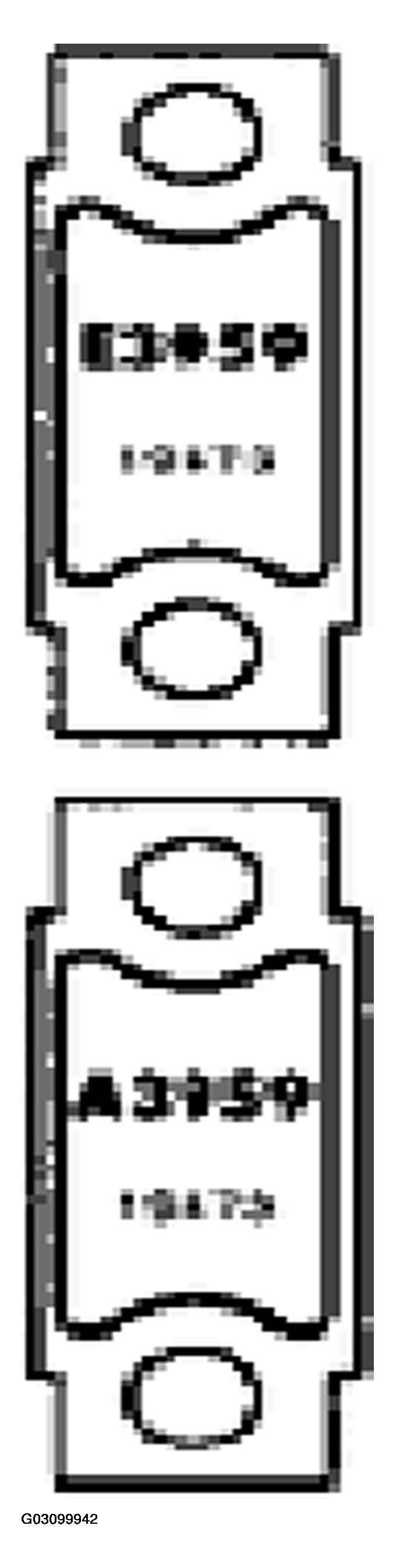

    Fig 3: Identifying Camshaft Bearing Saddles
    G03099942Courtesy of PORSCHE OF NORTH AMERICA, INC.

    E Bearing saddle for inlet camshaft

    A Bearing saddle for exhaust camshaft

  7. Fit tensioning element (VarioCam). Tighten 3 M6 x 95 pan-head screws. Tightening torque 10 Nm (7.5 ftlb.)
  8. Unscrew tensioning screw (special tool 9632) from the tensioning element.
  9. Remove tie wrap and fit sprocket wheel with chain on the flange of the exhaust camshaft.

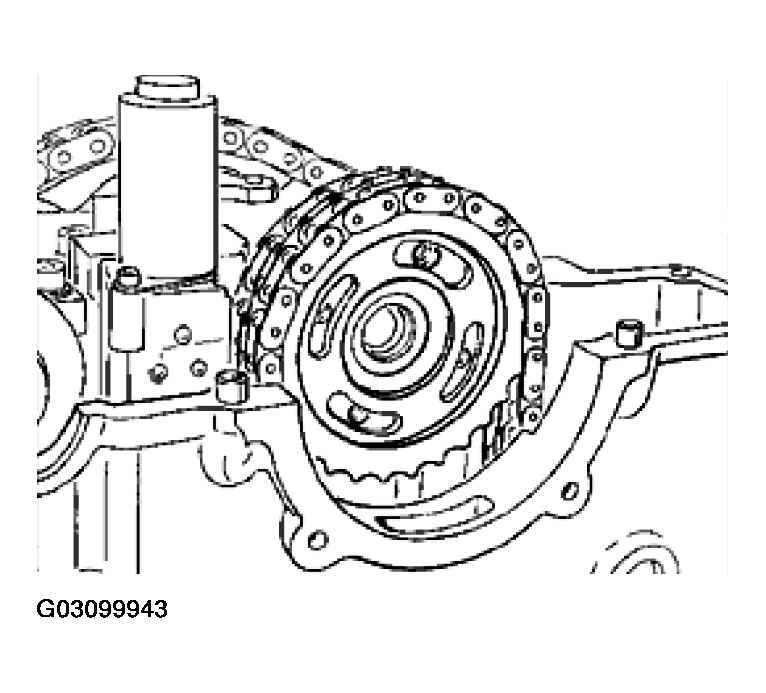

    Fig 4: Fitting Sprocket Wheel With Chain On Flange Of Exhaust Camshaft
    G03099943Courtesy of PORSCHE OF NORTH AMERICA, INC.
  10. Position drive plate or driver star on the sprocket wheel. Fit hexagon-head bolts M6 x 15 (10.9). Tighten hexagon-head bolts by hand only.
  11. Unscrew chain tensioner (fitted on the crankcase half of cylinder bank 4 - 6) and fasten auxiliary chain tensioner (special tool 9599).
  12. Fit auxiliary chain tensioner without sealing ring and fasten on the crankcase only hand-tight. The mechanical auxiliary chain tensioners must be install with the correct pre-tension when the valve timing is adjusted or checked. The necessary pre-tension force has been achieved when the measuring pin is flush with the face surface of the pressure screw. Turn the screw if necessary.

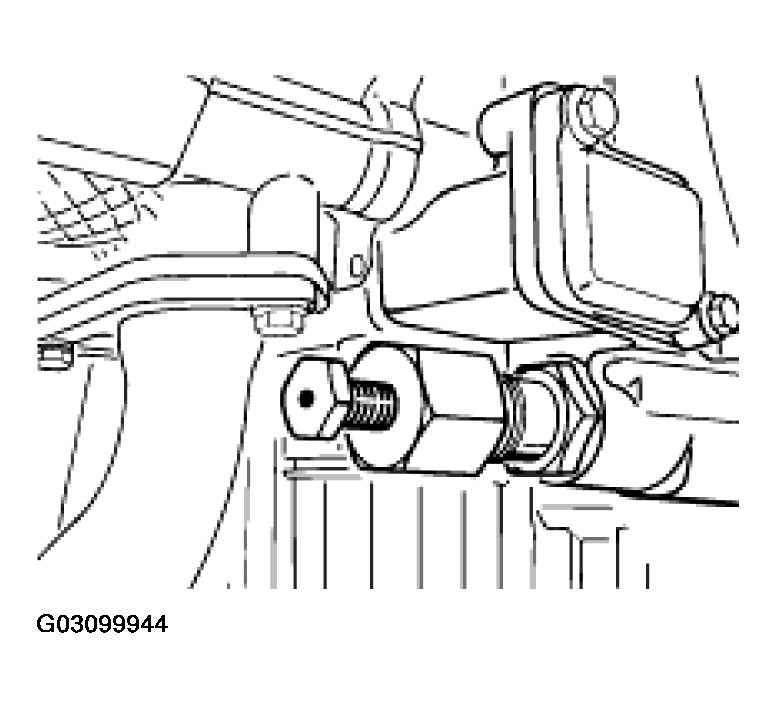

    Fig 5: Fitting Auxiliary Chain Tensioner On Cylinder Head 4-6
    G03099944Courtesy of PORSCHE OF NORTH AMERICA, INC.
  13. Fit auxiliary chain tensioner on cylinder head 1 - 3 and adjust pre-tension force (refer to step 12).

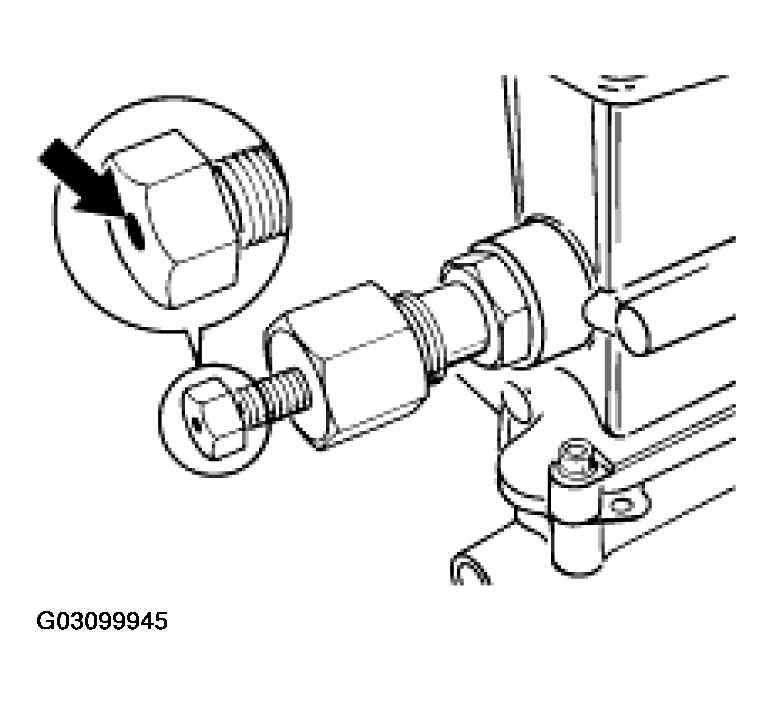

    Fig 6: Fitting Auxiliary Chain Tensioner On Cylinder Head 1-3
    G03099945Courtesy of PORSCHE OF NORTH AMERICA, INC.
  14. Fit cylinder head cover. Remove holding-down device 9611. Clean sealing surface of the cylinder head and cylinder head cover very carefully. Apply a silicone bead to the cylinder head cover. Refer to: SEALING COVER FOR CAMSHAFT HOUSING (CYLINDER HEAD COVER) .

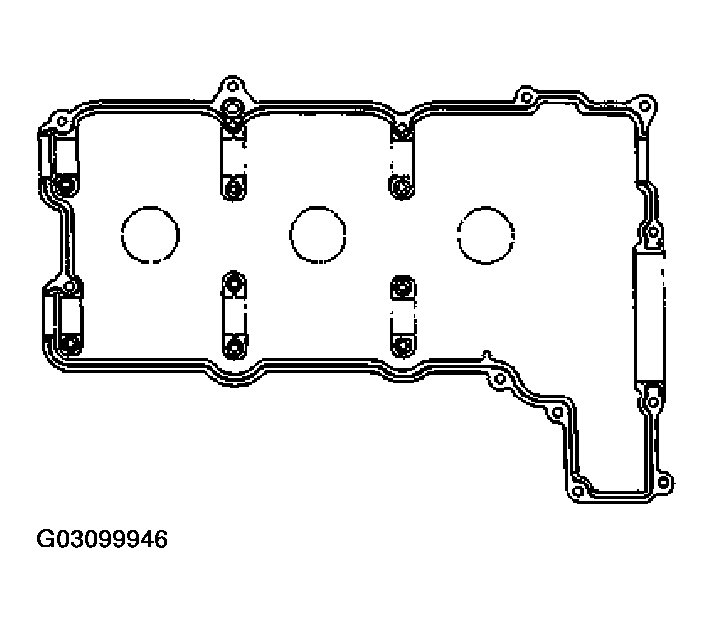

    Fig 7: Identifying Cylinder Head Cover
    G03099946Courtesy of PORSCHE OF NORTH AMERICA, INC.

    Carefully place the cylinder head cover in the correct position so that the sealing bead is not damaged. Screw two studs or centering pins into the corners of the cylinder head as centering aids.

    Immediately remove silicone material emerging in the area of the camshaft closure cap.

  15. For the subsequent adjustment work on the camshaft, the pulley must be fixed at bore 1 OT (TDC) with the fixing pin special tool 9595).

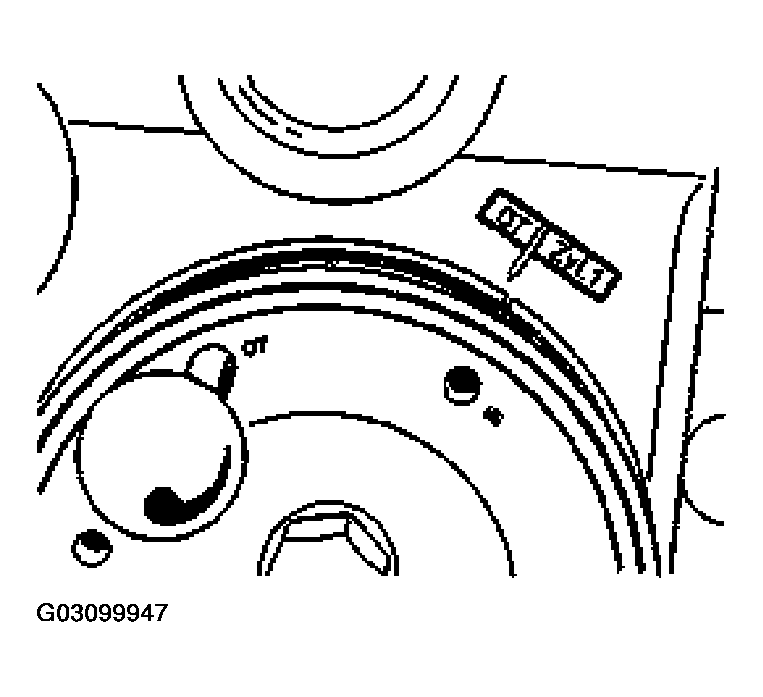

    Fig 8: Fixing Belt Pulley Bore 1 OT To Crankcase
    G03099947Courtesy of PORSCHE OF NORTH AMERICA, INC.
  16. Fasten blocking device (special tool 9612) on the cylinder head.

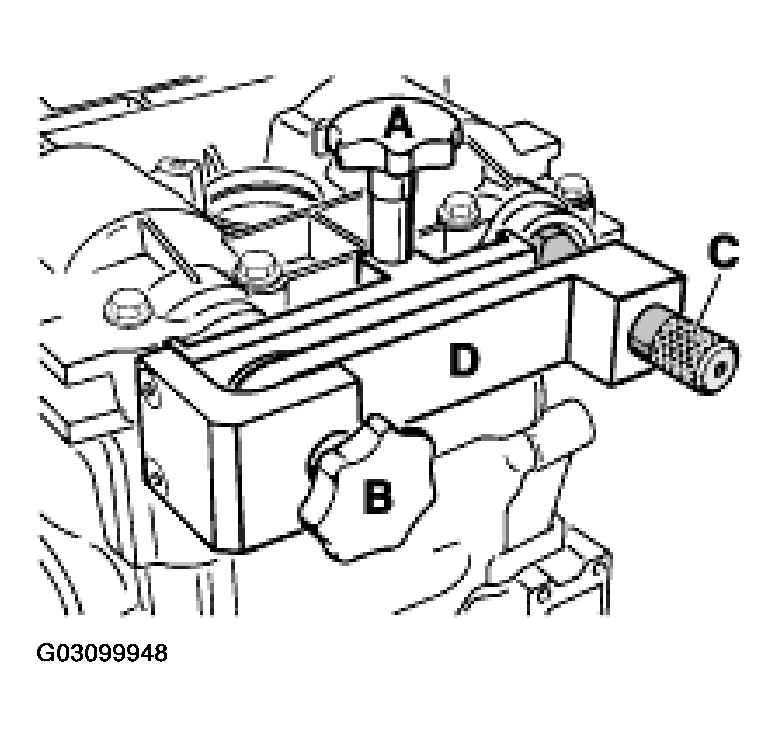

    Fig 9: Fastening Blocking Device On Cylinder Head
    G03099948Courtesy of PORSCHE OF NORTH AMERICA, INC.

    Special tool fitting sequence:

    A - Fastening screw with star knob on cylinder head lug.

    Pull back B and C when tightening.

    B - Centring piece in groove of the exhaust camshaft.

    Pull sword bolt (C) back when tightening.

    C - Sword bolt

  17. Allocate camshafts; to do this, turn the pre-tensioned center piece accordingly until the sword bolt can be fixed in the bearing bore.

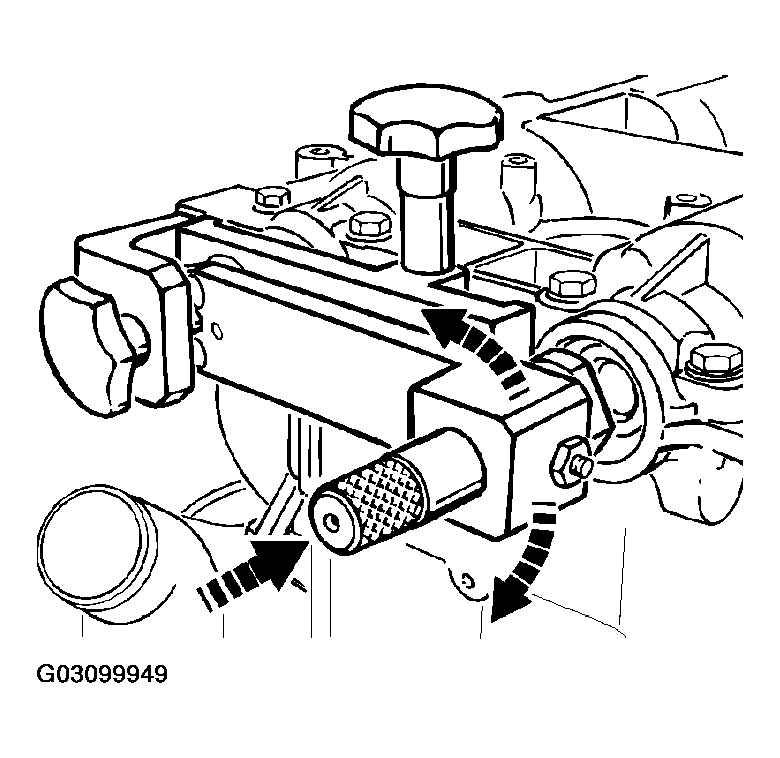

    Fig 10: Turning Pre-Tensioned Centre Piece
    G03099949Courtesy of PORSCHE OF NORTH AMERICA, INC.
  18. Fasten sprocket wheel. Tightening torque 14 Nm (10.5 ftlb.)
  19. Remove blocking device.
    NOTE:
    • The auxiliary chain tensioners must remain fitted on cylinder bank 4 - 6 for the subsequent assembly work.
  20. Fit oil extraction pump
    NOTE:
    • The oil extraction pumps on the cylinder heads are identical parts. Therefore, the installation position and direction of rotation must be correct.

    Installation position of oil extraction pump at cylinder head 1 - 3 (flywheel side).

    The arrow for the direction of rotation or the marking "1 - 3" must face the crankcase.

    Fit oil extraction pump. Use new sealing ring and new micro-encapsulated hexagon socket head screws.

    Tightening torque 10 Nm (7.5 ftlb.)

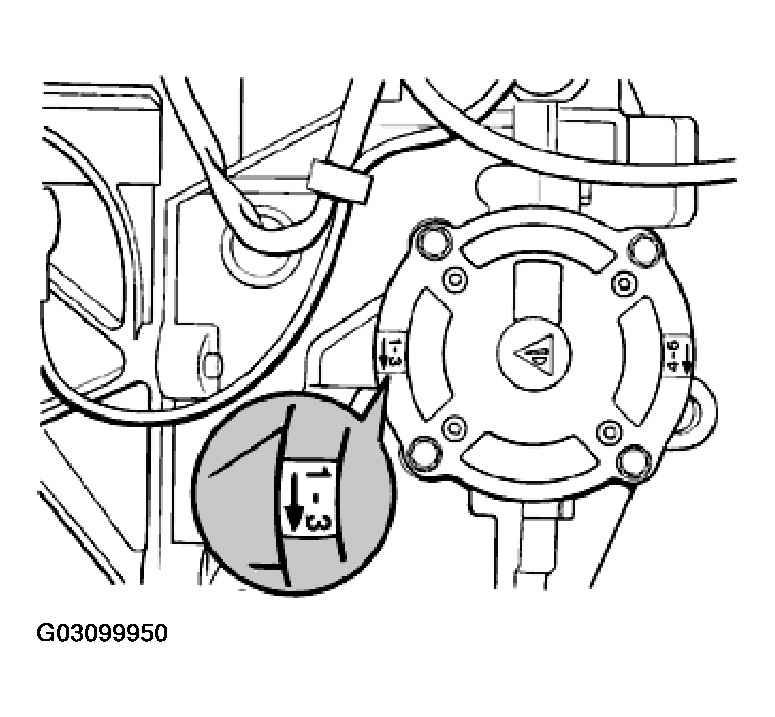

    Fig 11: Identifying Oil Extraction Pump Arrow For Direction Of Rotation - Cylinder Head 1-3
    G03099950Courtesy of PORSCHE OF NORTH AMERICA, INC.
  21. Fit camshaft closure cap dry.
  22. Fit closure cap on tensioning element (VarioCam).
