Installing camshafts: Tools
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2005 Porsche 911, 2004 Porsche 911, 2003 Porsche 911, 2002 Porsche 911, and 2001 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

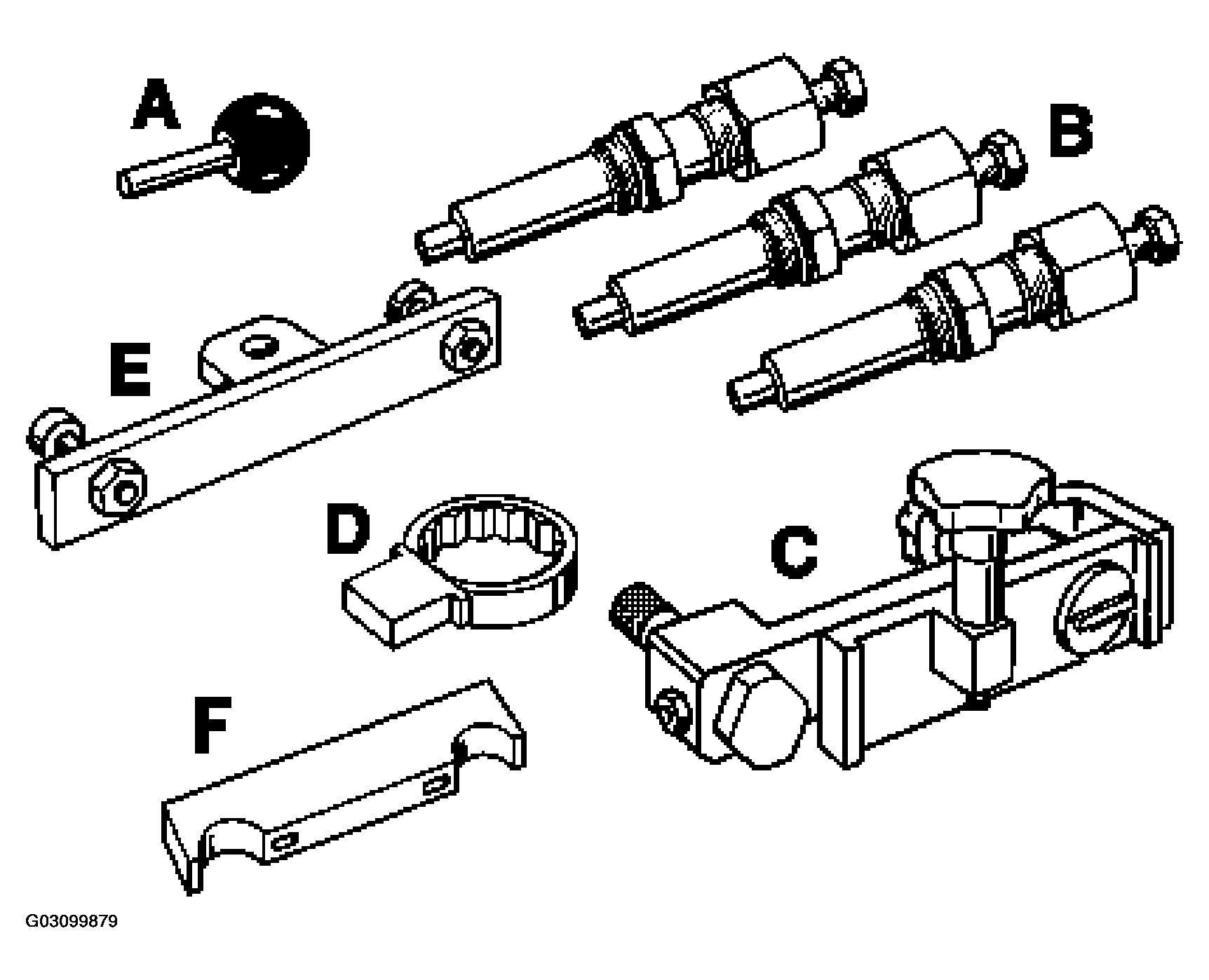

SPECIAL TOOL DESIGNATION - CAMSHAFT INSTALLATION
| Item | Designation | Special tool | Explanation |
|---|---|---|---|
| A | Fixing pin for belt pulley | 9595 | 1 set = 2 ea. (use short fixing pin) |
| B | Auxiliary chain tensioner for valve timing adjustment | 9599 | 1 set = 3 ea. |
| C | Locking device for camshafts in timing position | 9612 | |
| D | Ring wrench (32 mm) | ||
| E | Holding-down device for camshafts | 9634 | |
| F | Holding-down device for camshafts | 9611 | 1 set = 4 ea. |
