Installing camshafts of cylinder bank 4 - 6

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2005 Porsche 911, 2004 Porsche 911, 2003 Porsche 911, 2002 Porsche 911, and 2001 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Turn engine to installation position on assembly support. Remove fixing pin. Advance crankshaft 360° clockwise until the bore 1 OT (top dead center) in the belt pulley is aligned with the fixing bore on the crankcase. Position or fix with fixing pin (short) of special tool 9595.
1.1 Turn engine 90° counterclockwise on the assembly support until cylinder bank 4 - 6 faces up.

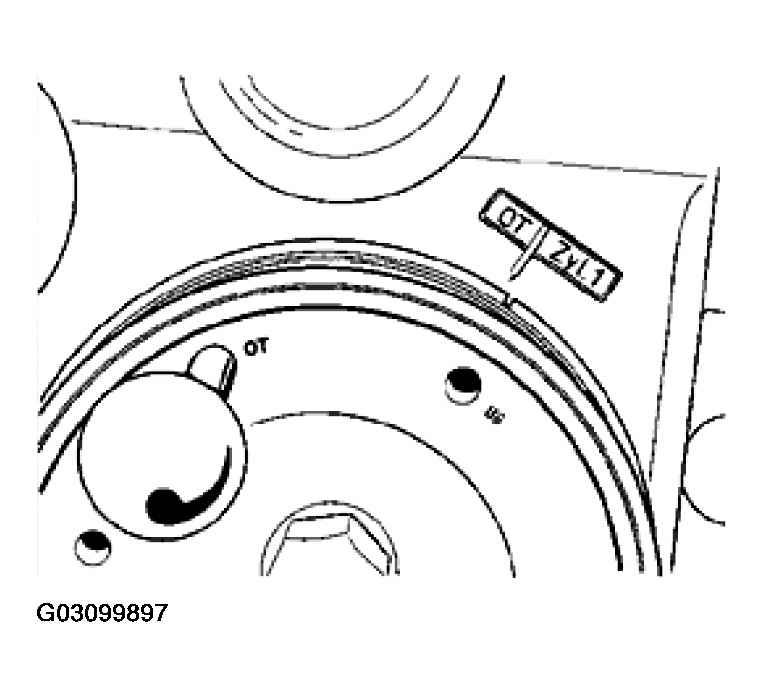

Fig 1: Aligning Belt Pulley Bore 1 OT With Fixing Bore On Crankcase
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Fit cylinder head. Observe identification on the cylinder head.

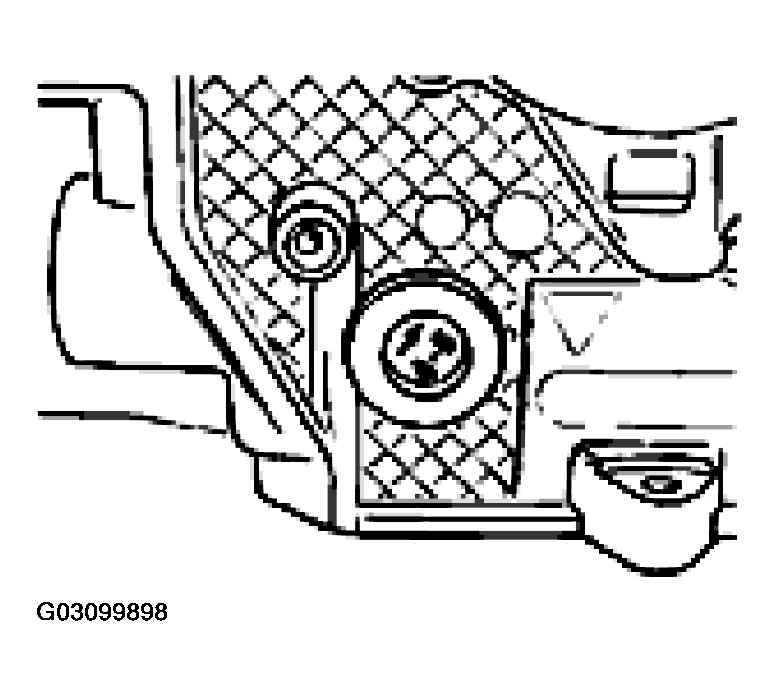

Fig 2: Locating Identification On Cylinder Head
Courtesy of PORSCHE OF NORTH AMERICA, INC.

2.1 Fit cylinder head gasket. The gasket is identified by Zyl. 4 - 6 with OBEN/TOP, plus the corresponding part number. Ensure correct seating of dowel sleeves in crankcase. Fit gasket.

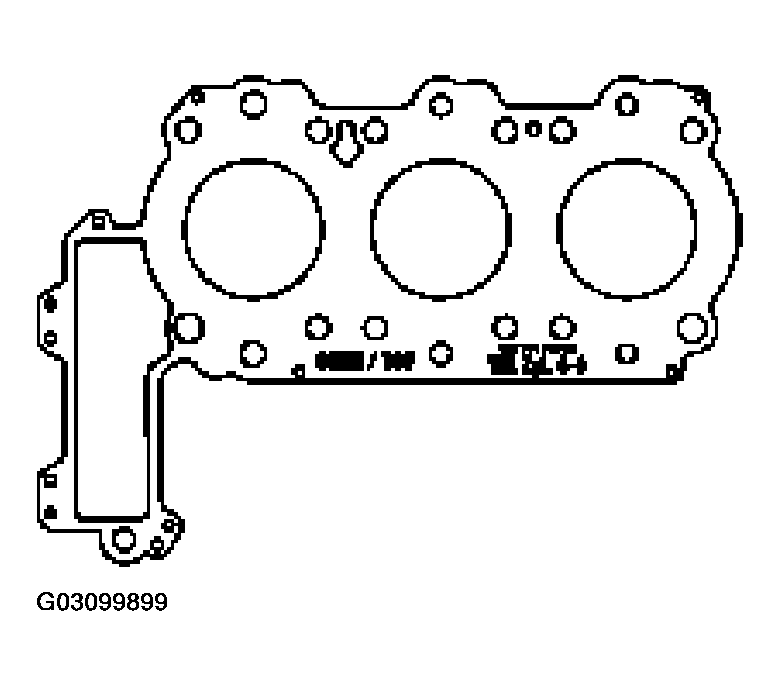

Fig 3: Identifying Cylinder Head Gasket - Cylinder Head 4-6
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Fit guide housing for valve tappets.
Lay the completely preassembled unit, camshafts with chain and tensioning element into the cylinder head. The groove on the inlet camshaft or lug of the camshaft position sensor cover must face downward.

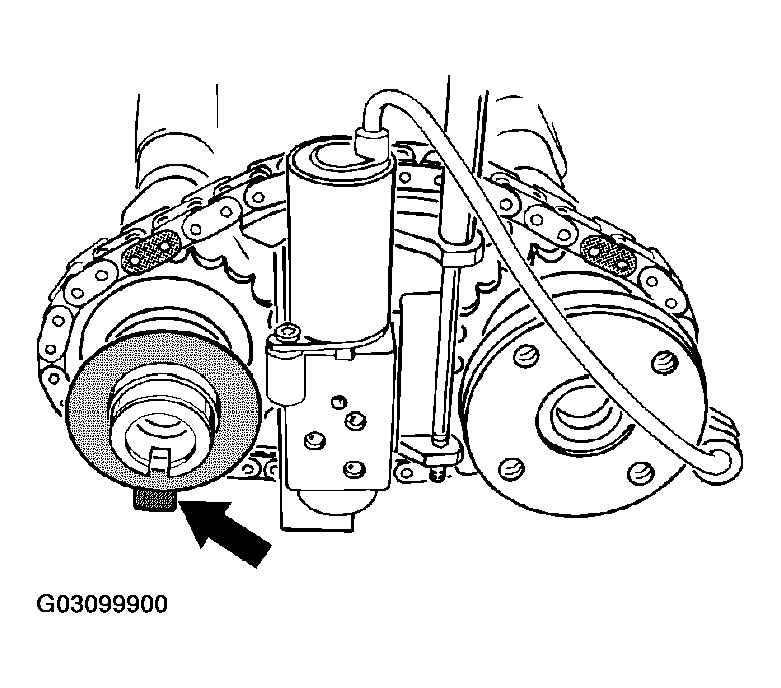

Fig 4: Identifying Groove On Inlet Camshaft
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Align camshafts accordingly and fasten with holding-down device, special tool 9611, and holding-down device, special tool 9624.

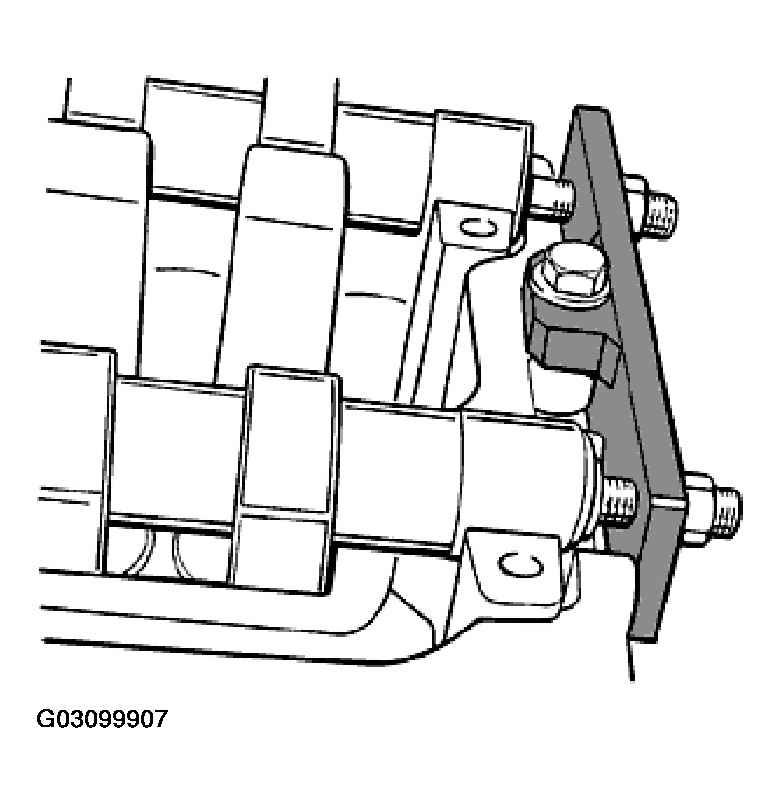

Fig 5: Aligning Camshafts With Holding-Down Devices, Special Tool 9611
Courtesy of PORSCHE OF NORTH AMERICA, INC.

5.1 Fasten holding-down device 9611 with auxiliary screws M6 x 45.

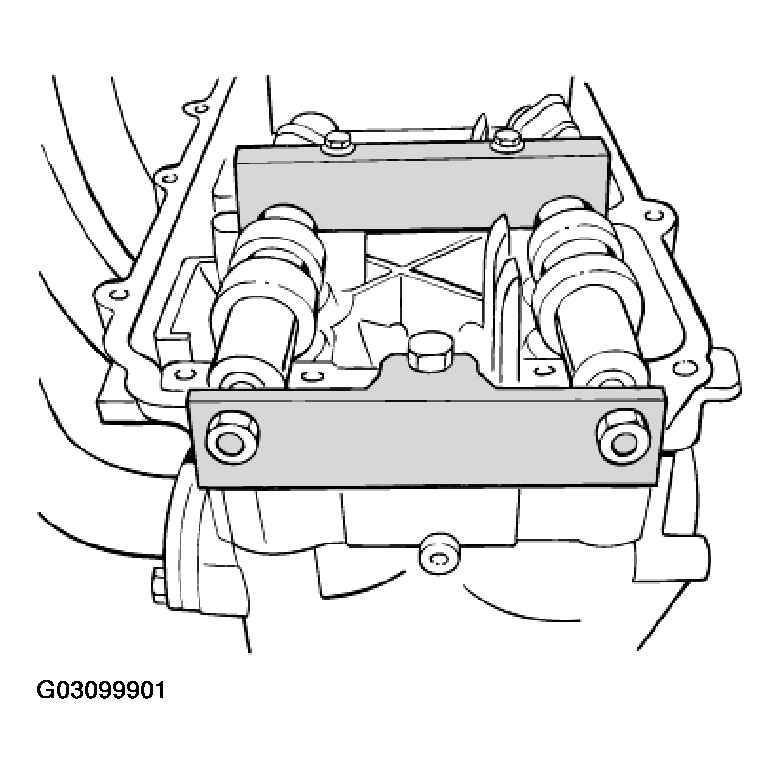

Fig 6: Identifying Camshaft Holding-Down Device 9611
Courtesy of PORSCHE OF NORTH AMERICA, INC.

5.2 Fit holding-down device 9624 on the cylinder head using a M8 x 30 hexagon-head bolt.

Fig 7: Identifying Holding-Down Device 9624
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Check dowel sleeves (4 ea.) of the bearing saddles to ensure that they are properly seated in the cylinder head. Grease bearing surface, fit bearing saddles in correct position and tighten evenly. Tightening torque: 10 Nm (7.5 ftlb.) It is essential to compare the pairing numbers of cylinder head, cylinder head cover and bearing saddles.

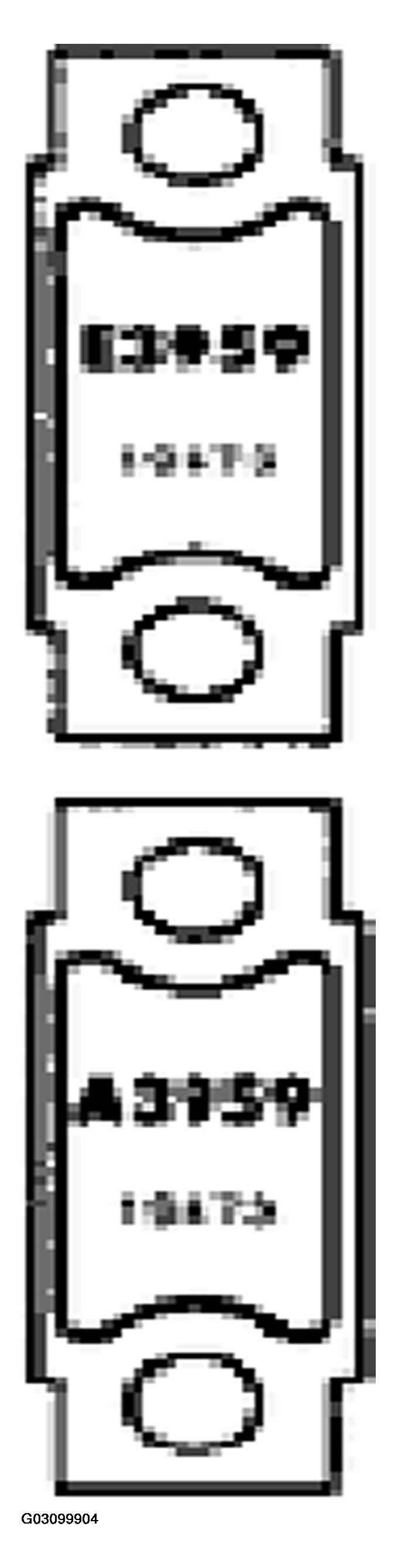

Fig 8: Identifying Camshaft Bearing Saddles
Courtesy of PORSCHE OF NORTH AMERICA, INC.

E Bearing saddle for inlet camshaft

A Bearing saddle for exhaust camshaft
Fit tensioning element (VarioCam). Tighten 3 M6 x 95 pan-head screws. Tightening torque: 10 Nm (7.5 ftlb.)
Unscrew tensioning screw, special tool 9632, from the tensioning element.
Fit sprocket wheel with chain on the flange of the exhaust camshaft. Fasten guide rail. Tightening torque: 10 Nm (7.5 ftlb.)

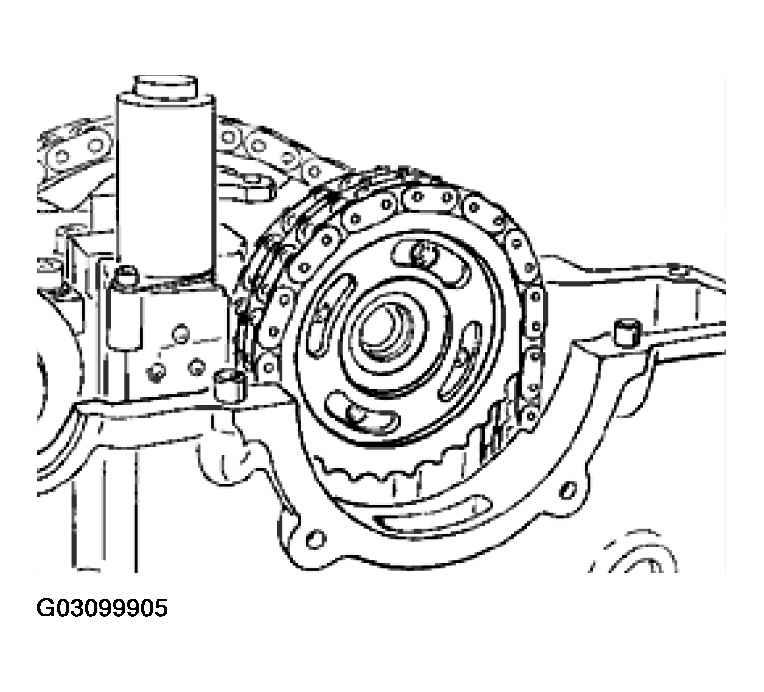

Fig 9: Fitting Sprocket Wheel With Chain On Flange Of Exhaust Camshaft
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Position drive plate on the sprocket wheel. Fit hexagon-head bolt M6 x 15 (10.9). Tighten hexagon-head bolts by hand only.

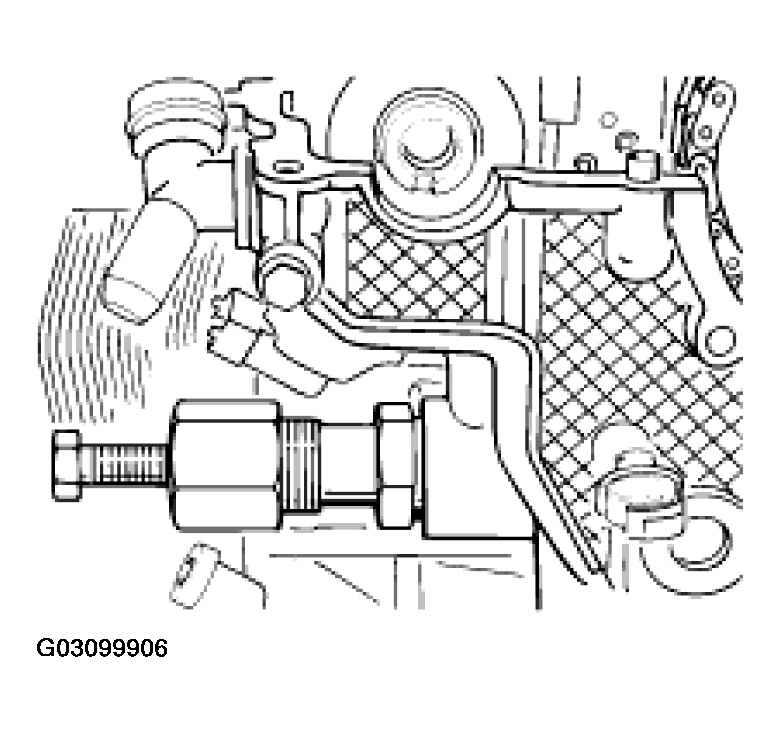

Fit auxiliary chain tensioner of special tool 9599 on cylinder head 4 - 6. Fit auxiliary chain tensioner without sealing ring and fasten on the crankcase only hand-tight. Adjust pre-tension force with the hexagon-head bolt.
11.1 Slightly tighten hexagon-head bolts on the sprocket wheel to 10 Nm (7.5 ftlb.)

Fig 10: Tightening Auxiliary Chain Tensioner - Cylinder Head 4-6
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Remove holding-down device 9611.
Holding-down device 9624 remains in the cylinder head until the cylinder head cover is fastened.

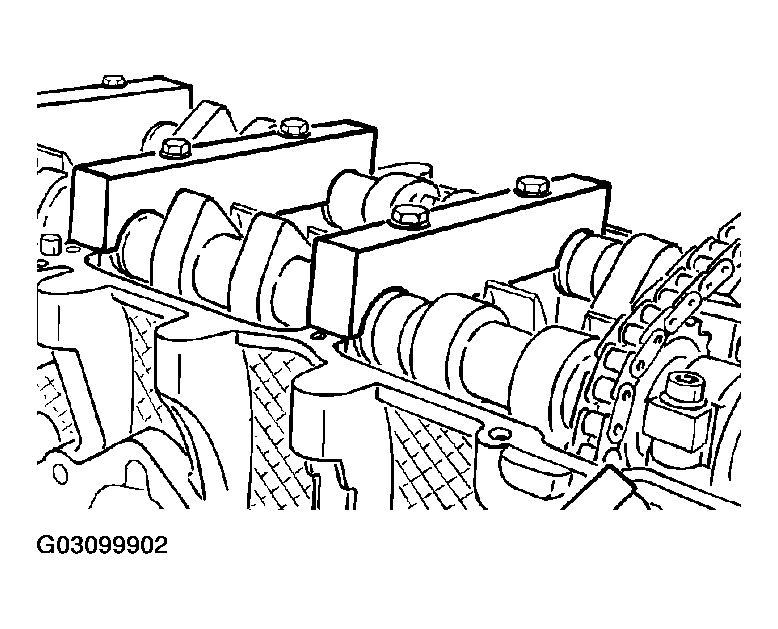

Fig 11: Identifying Holding-Down Device 9624
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Prepare cylinder head cover for installation: Clean sealing surface of the cylinder head and cylinder head cover very carefully. Apply a silicone bead to the cylinder head cover. Refer to: SEALING COVER FOR CAMSHAFT HOUSING (CYLINDER HEAD COVER) .

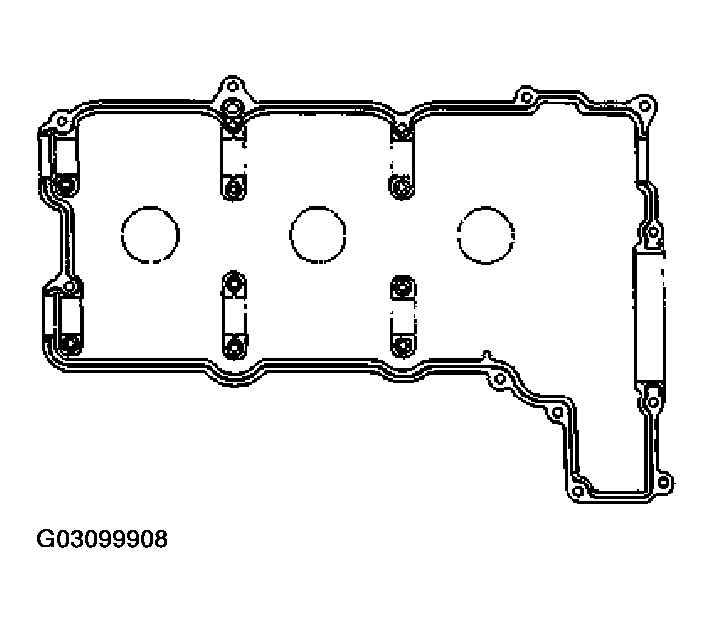

Fig 12: Identifying Cylinder Head Cover
Courtesy of PORSCHE OF NORTH AMERICA, INC.

Carefully place the cylinder head cover in the correct position so that the sealing bead is not damaged. Screw two studs or centering pins into the corners of the cylinder head as centering aids.

Immediately remove silicone material emerging in the area of the camshaft closure cap.
Remove holding-down device 9624 from the cylinder head.
