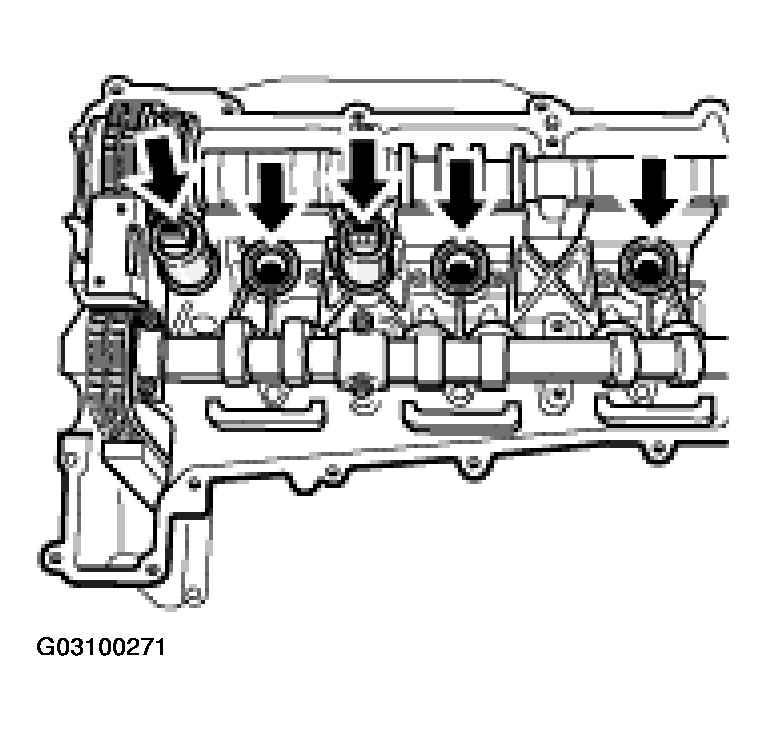

Align camshafts. On both camshafts, the smaller circular cutouts must lie at the top -arrows-.

Fig 1: Aligning Camshafts (Cylinder Bank 4-6)
Courtesy of PORSCHE OF NORTH AMERICA, INC.

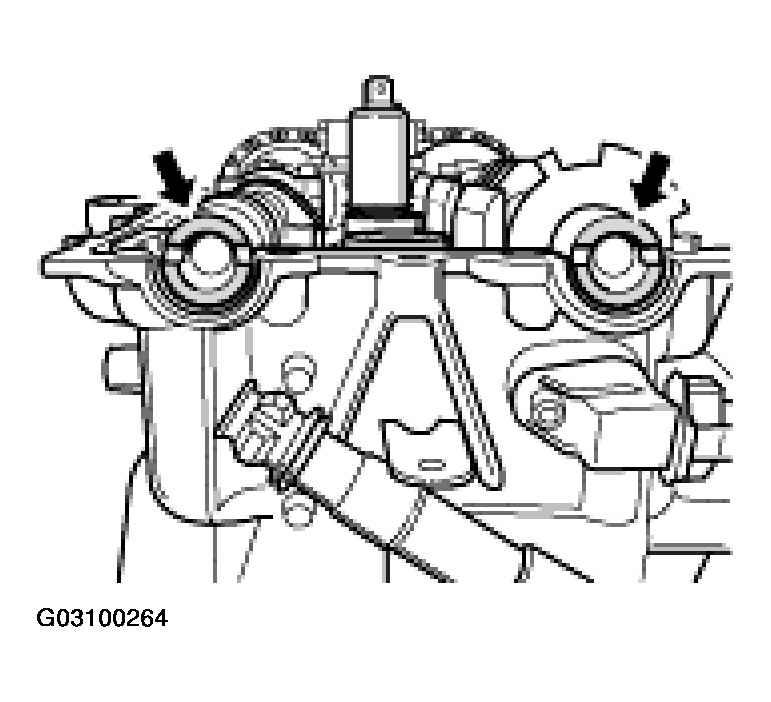

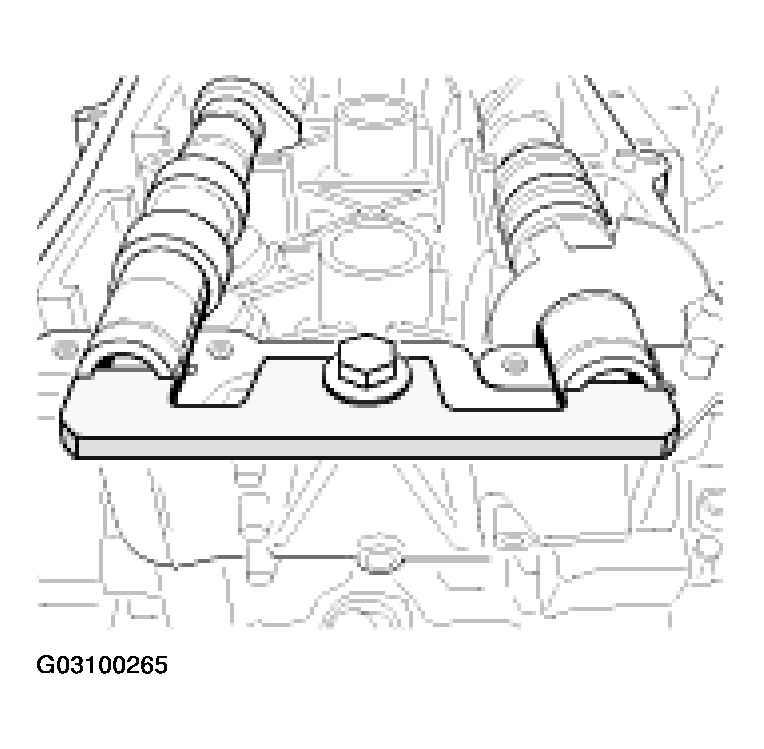

Fix the camshafts with special tool adjustment gauge 9686 and fasten the gauge with one M8 auxiliary screw (for example, M8 x 16 hexagon-head bolt) (flat tool surface should face upwards). Only tighten the screw slightly.

Fig 2: Fixing Camshafts With Special Tool Adjustment Gauge 9686
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Screw the bearing cover screws of the inlet and exhaust camshafts and the auxiliary screw of the adjustment gauge alternately by another approx. 90° until the specified tightening torque of 10 Nm (7.5 ftlb.) is reached.
Tightening torque: 10 Nm (7.5 ftlb.)
Insert the guide rail screw with a new O-ring and tighten. Hexagon socket M6, a/f 5.
Tightening torque: 10 Nm (7.5 ftlb.)
Fit the chain tensioner, side 4-6 (hexagon socket a/f 14). Replace sealing ring. Position the chain tensioner with new sealing ring and tighten with a torque wrench.

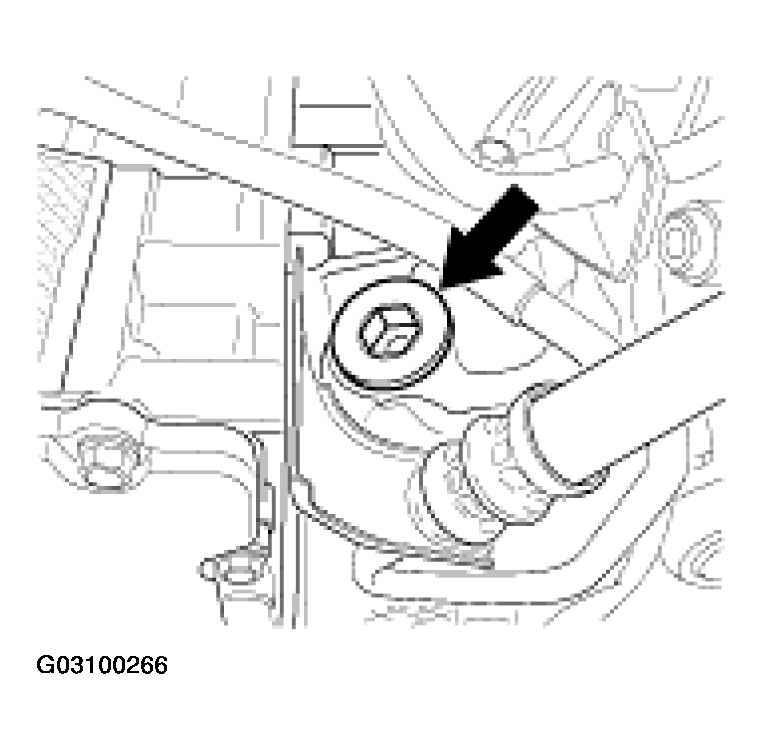

Fig 3: Fitting Chain Tensioner, Cylinder Bank 4-6
Courtesy of PORSCHE OF NORTH AMERICA, INC.

Tightening torque: 80 Nm (59 ftlb.)
NOTE:
- Move the engine at the belt pulley of the crankshaft to the TDC marking without fail.

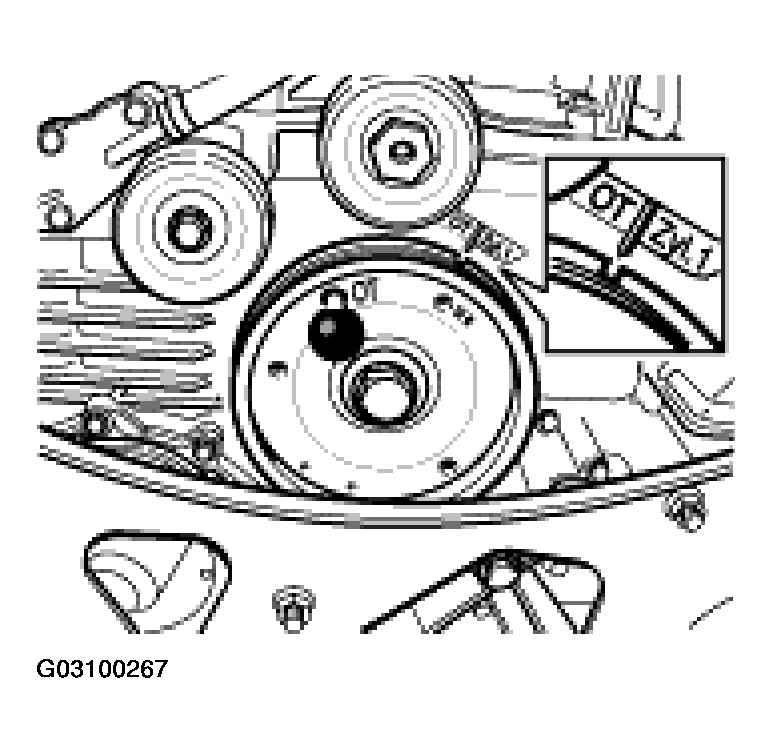

Turn the engine at the belt pulley of the crankshaft clockwise (engine direction of rotation) to the TDC marking (the TDC bore in the belt pulley is flush with the fixing bore in the crankcase). Fix with the special tool fixing pins as of mod. 98 9595/1. Use short fixing pin.

Fig 4: Turn Engine At Belt Pulley Of Crankshaft Clockwise To TDC Marking
Courtesy of PORSCHE OF NORTH AMERICA, INC.

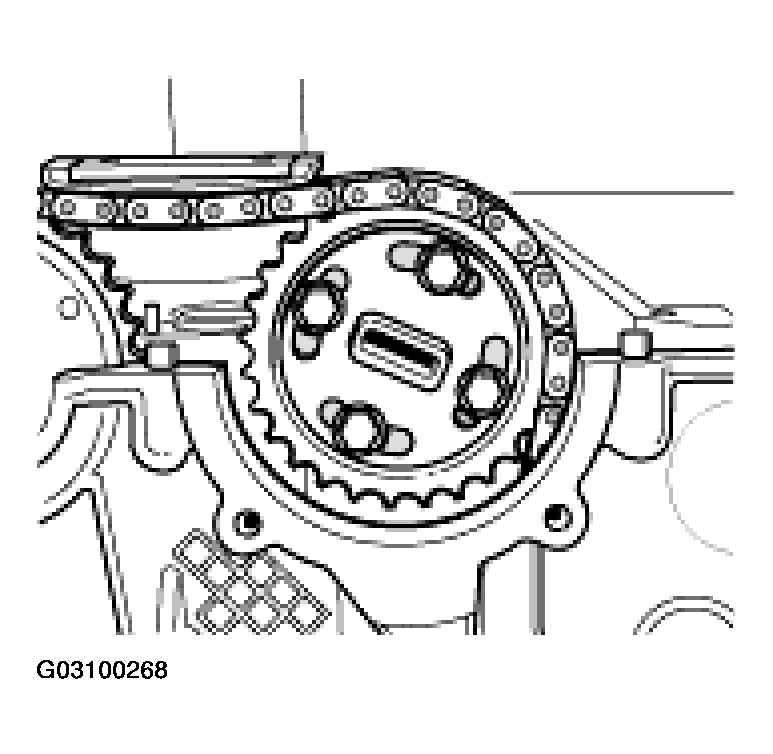

Position the four M6 x 12 hexagon-head bolts for the chain sprocket of the exhaust camshaft and tighten crosswise with a torque wrench.

Fig 5: Identifying Position Of Four M6 X 12 Hexagon-Head Bolts For Chain Sprocket
Courtesy of PORSCHE OF NORTH AMERICA, INC.

Tightening torque: 14 Nm (10.5 ftlb.)

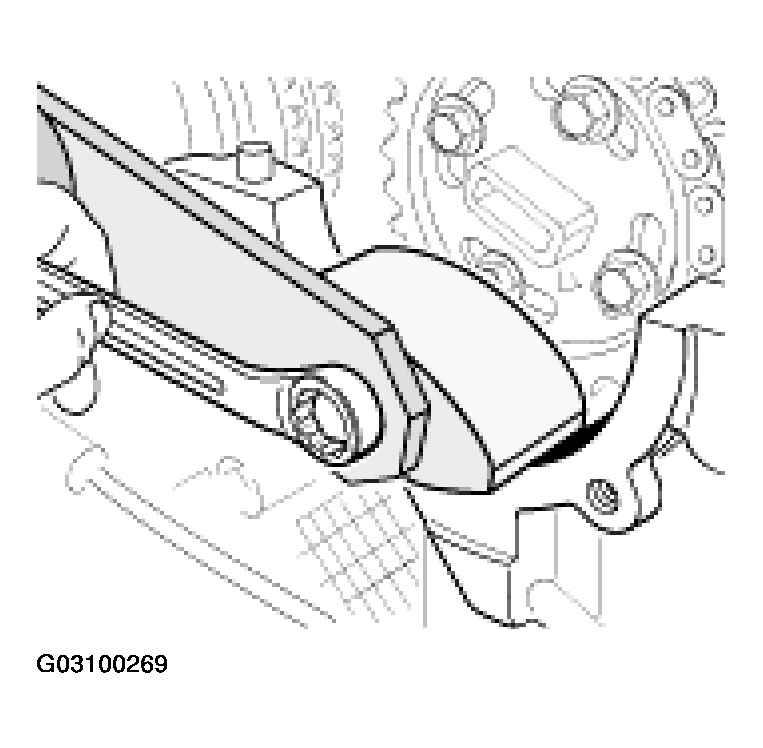

Tighten the central screw of the camshaft adjusting device. Position special tool retaining tool 9685 on the adapter of the central screw and place the loose contact block at the fitting bore of the oil extraction pump. Tighten the hexagon-head bolt on the contact block.

Fig 6: Tightening Central Screw Of Camshaft Adjusting Device
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Tighten the central screw in two stages.
First stage: pre-tightening torque: 50 Nm (37 ftlb.)

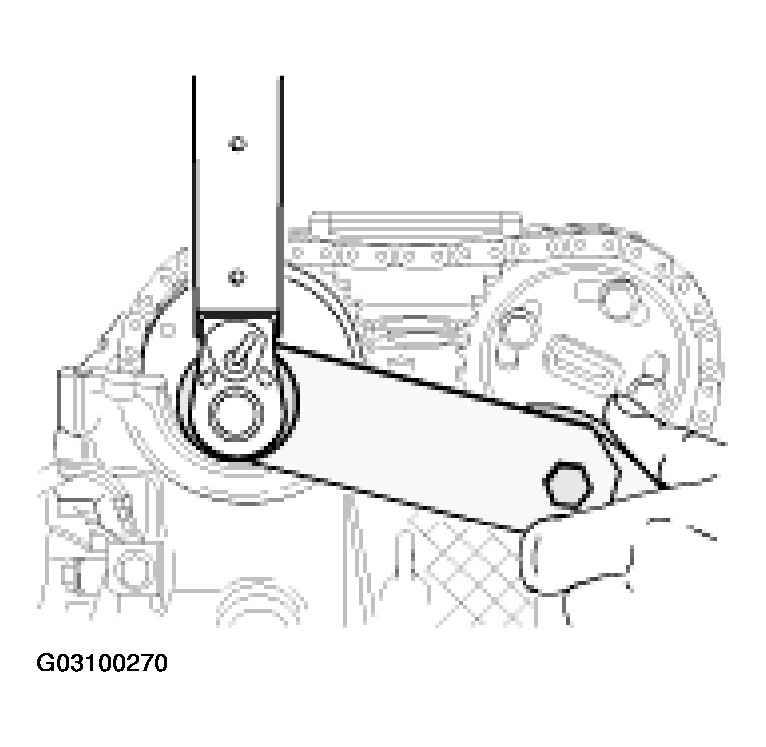

Fig 7: Tightening Central Screw
Courtesy of PORSCHE OF NORTH AMERICA, INC.
NOTE:
- Before the final tightening of the central screw, remove special tool adjustment gauge 9686 without fail.
Remove special tool adjustment gauge 9686. Unscrew the M8 auxiliary screw and pull off the gauge.
Second stage: final tightening of central screw: 110° torque angle with torque angle wrench.
Insert two magnetic hydraulic valves and three seals for the spark-plug recesses. Fit new O-rings into both the magnetic hydraulic valves and insert into the bores in the cylinder head. (Camshaft adjustment with dowel pin, valve lift control without dowel pin). Replace the three seals for the spark-plug recesses.

Fig 8: Inserting Two Magnetic Hydraulic Valves And Three Seals For Spark-Plug Recesses
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Install cylinder head cover. See REMOVING AND INSTALLING CYLINDER HEAD COVER - ENGINE REMOVED (AS OF MY 02) .

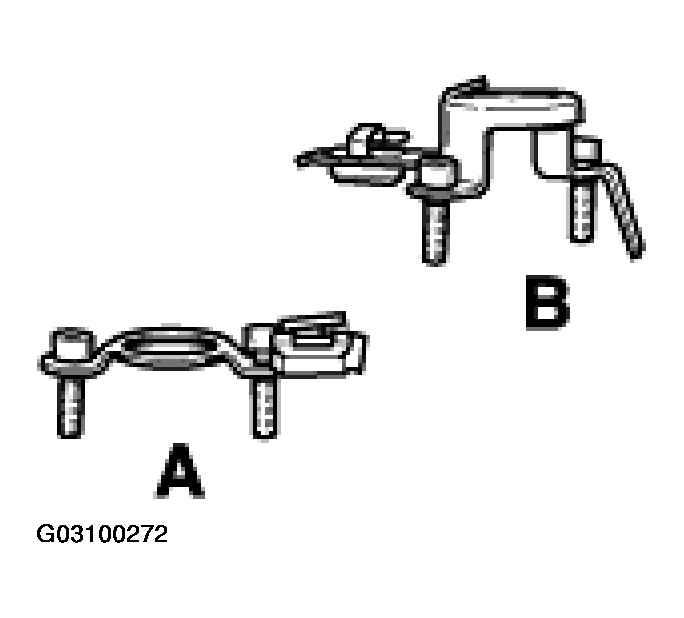

Fit both holders (A and B) and two new covers for the magnetic hydraulic valves for Vario-Cam Plus. Push two new covers (identical parts) over the valves and position and tighten two holders with two M6 x 20 hexagon socket head bolts each.

Fig 9: Identifying Holders
Courtesy of PORSCHE OF NORTH AMERICA, INC.
- A: Holder for camshaft adjustment valve
- B: Holder for valve lift adjustment valve
Cover for magnetic hydraulic valves in installation position with integrated seal

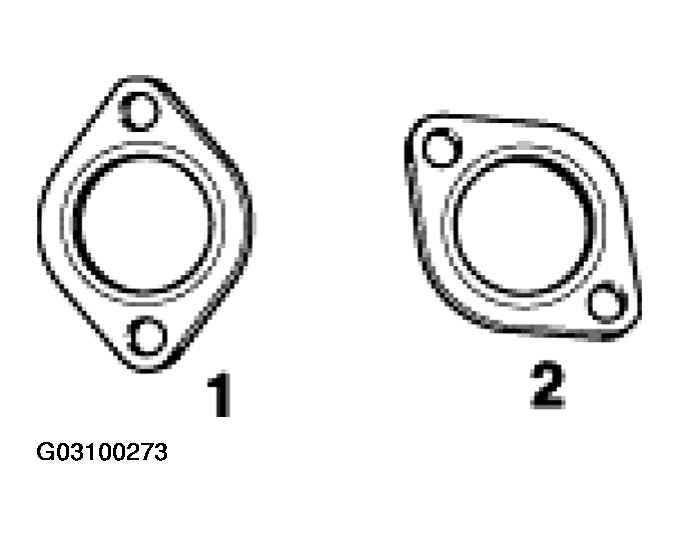

Fig 10: Identifying Covers For Magnetic Hydraulic Valves
Courtesy of PORSCHE OF NORTH AMERICA, INC.
- 1 : Camshaft adjustment valve (control chain side)
- 2 : Valve lift adjustment valve
Tightening torque: 10 Nm (7.5 ftlb.)
Install ground strap on cylinder head. Position and tighten M8 x 20 hexagon-head bolt.
Tightening torque: 23 Nm (17 ftlb.)
Install ignition coils. Insert three ignition coils in the spark-plug recesses, position and then tighten two M6 x 25 hexagon socket head bolts.
Tightening torque: 10 Nm (7.5 ftlb.)
Install holder for the main muffler. Insert holder from the belt pulley side, position two M8 x 30 hexagon-head bolts at the top and two M8 x 25 hexagon-head bolts at the bottom and tighten. Connect the electrical plug of ignition coil cylinder 5 and the two electrical plugs of the magnetic hydraulic valves, then fasten the cable in the sheetmetal brackets.
Tightening torque: 23 Nm (17 ftlb.)
Install the shield. Insert the shield, position and tighten the two M6 x 16 hexagon-head bolts.
Tightening torque: 10 Nm (7.5 ftlb.)
Connect the two cable plugs on the oil temperature switch.
Turn the engine at the assembly support by approx. 90° until the engine is horizontal (intake system at the top).
