Removing oil pump lid

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2005 Porsche 911, 2004 Porsche 911, 2003 Porsche 911, 2002 Porsche 911, and 2001 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Place collection pan beneath engine to catch remaining engine oil.
Drain engine oil. Reinstall oil drain plug (hexagon socket a/f 8) with new sealing ring after a drainage period of approx. 20 minutes.

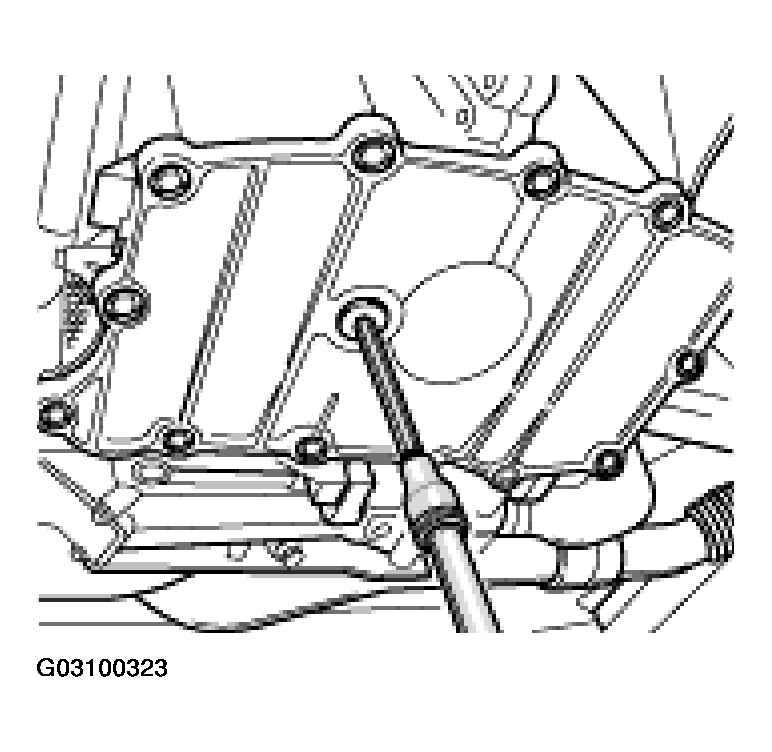

Fig 1: Reinstalling Oil Drain Plug
Courtesy of PORSCHE OF NORTH AMERICA, INC.

Tightening torque 50 Nm (37 ftlb.)
Remove catalytic converters. Refer to REMOVING AND INSTALLING REAR MUFFLERS .
Remove engine carrier. To do this, unscrew four M10 hexagon-head collar nuts (self-locking, a/f 15) and one M6 hexagonal-head bolt, -Arrow- . Remove engine carrier.

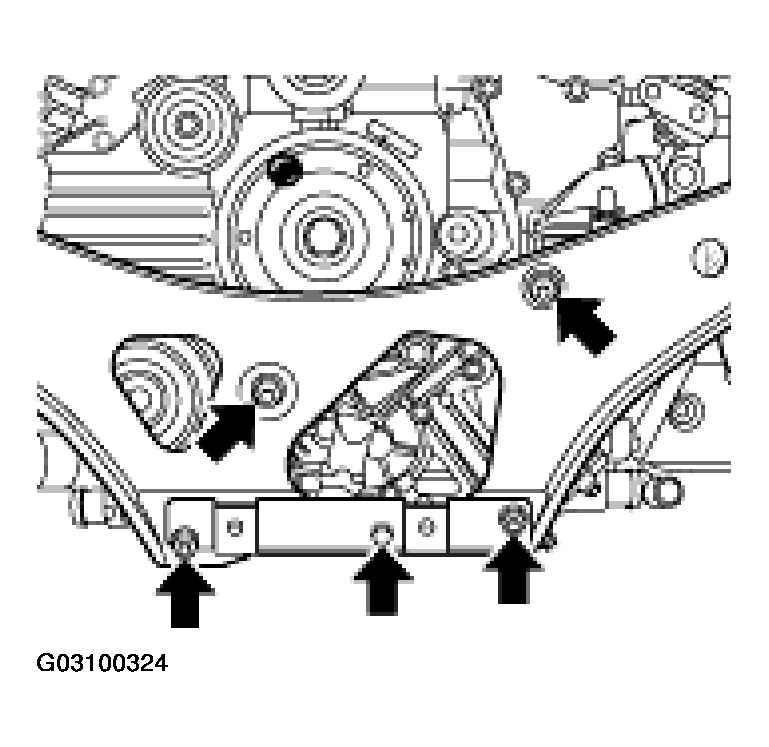

Fig 2: Removing Engine Carrier Nuts & Bolt
Courtesy of PORSCHE OF NORTH AMERICA, INC.
NOTE:
- Release pressure relief valve (hexagon a/f 17) -Item 1, bottom of figure- before removing oil pump lid, as the lid may not be tensioned in a tensioning device to release the valve in the case of the oil pump being disassembled.
Remove oil pump lid. To do this, unscrew hexagon-head bolts: Six M6 x 20, two M6 x 80 and one M10 (a/f 15) -Arrows- .

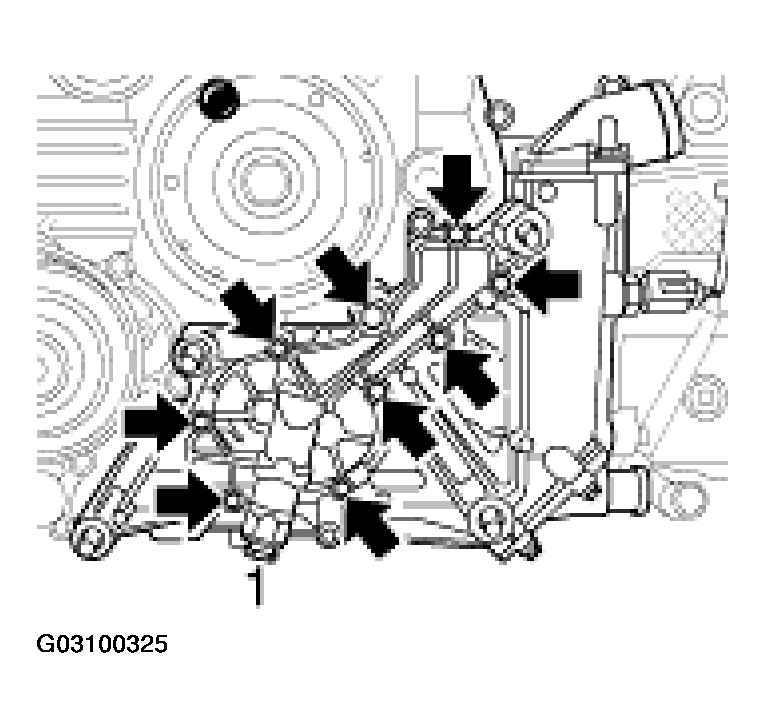

Fig 3: Removing Oil Pump Lid Hexagon-Head Bolts
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Carefully remove oil pump lid. Do not use metal tools to lever up the lid, as the sealing surface can be damaged. Remove moulded seal, -Arrow- .

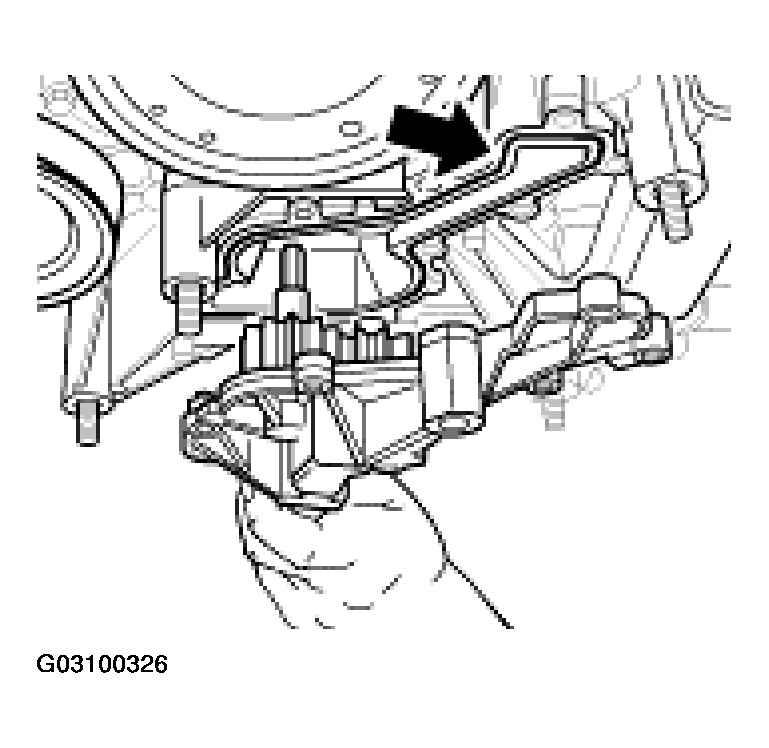

Fig 4: Identifying Moulded Seal
Courtesy of PORSCHE OF NORTH AMERICA, INC.
