Special tools
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2005 Porsche 911, 2004 Porsche 911, 2003 Porsche 911, 2002 Porsche 911, and 2001 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

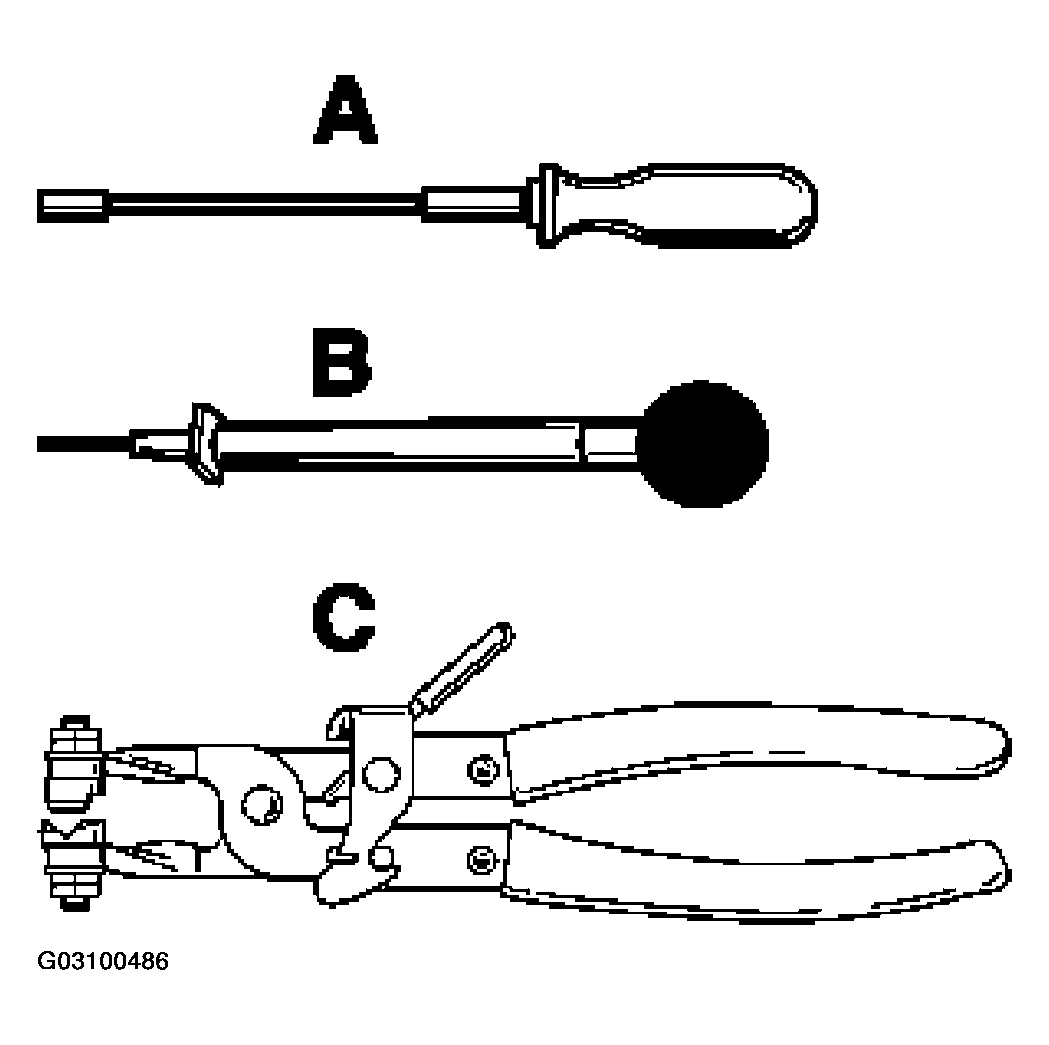

SPECIAL TOOL DESIGNATION (1 OF 2)
| Item | Designation | Special tool | Remarks |
|---|---|---|---|
| A | Flexible screwdriver SW 7 | Commercially available | For undoing or tightening screw hose clamps |
| B | Frost protection testing device. Commercially available | For checking the frost protection content in the coolant circuit. | The structural shape can deviate from that in shown in the illustration. |
| C | Spring-band clamp pliers | Commercially available | For opening and closing spring-band clamps |

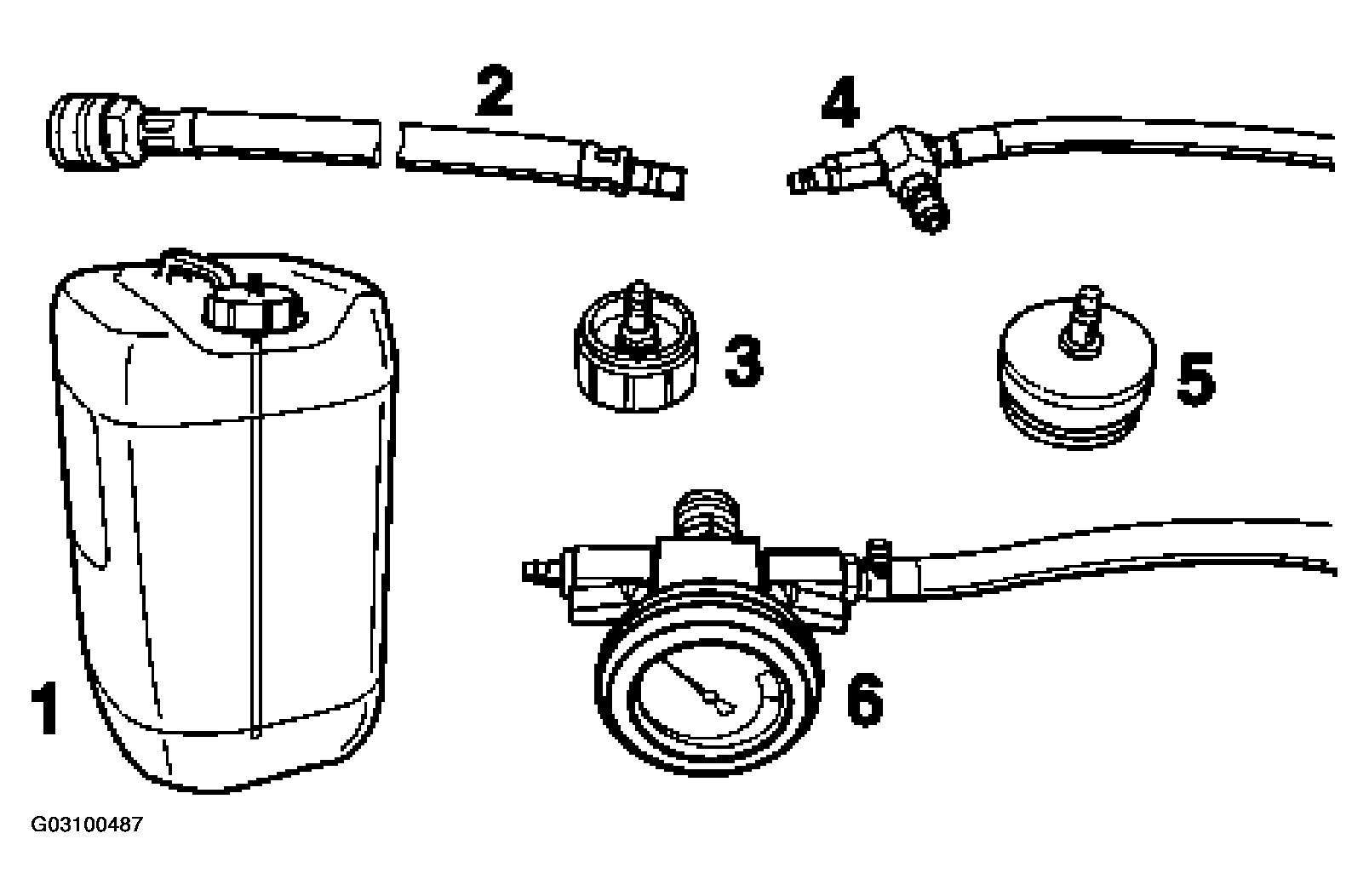

SPECIAL TOOL DESIGNATION (2 OF 2)
| Item | Designation | Special tool | Remarks |
|---|---|---|---|
| 1 | Canister | Canister with lifting tube, capacity approx. 30 l. | |
| 2 | Hose extension FZ 100 | ||
| 3 | Adapter K 22 | Included in the scope of delivery of radiator, vacuum filling device | |
| 4 | Venturi nozzle | Included in the scope of delivery of radiator, vacuum, filling device | |
| 5 | Adapter K 60 | Included in the scope of delivery of radiator, vacuum, filling device | |
| 6 | Pressure gauge | Contained in scope of delivery of |
