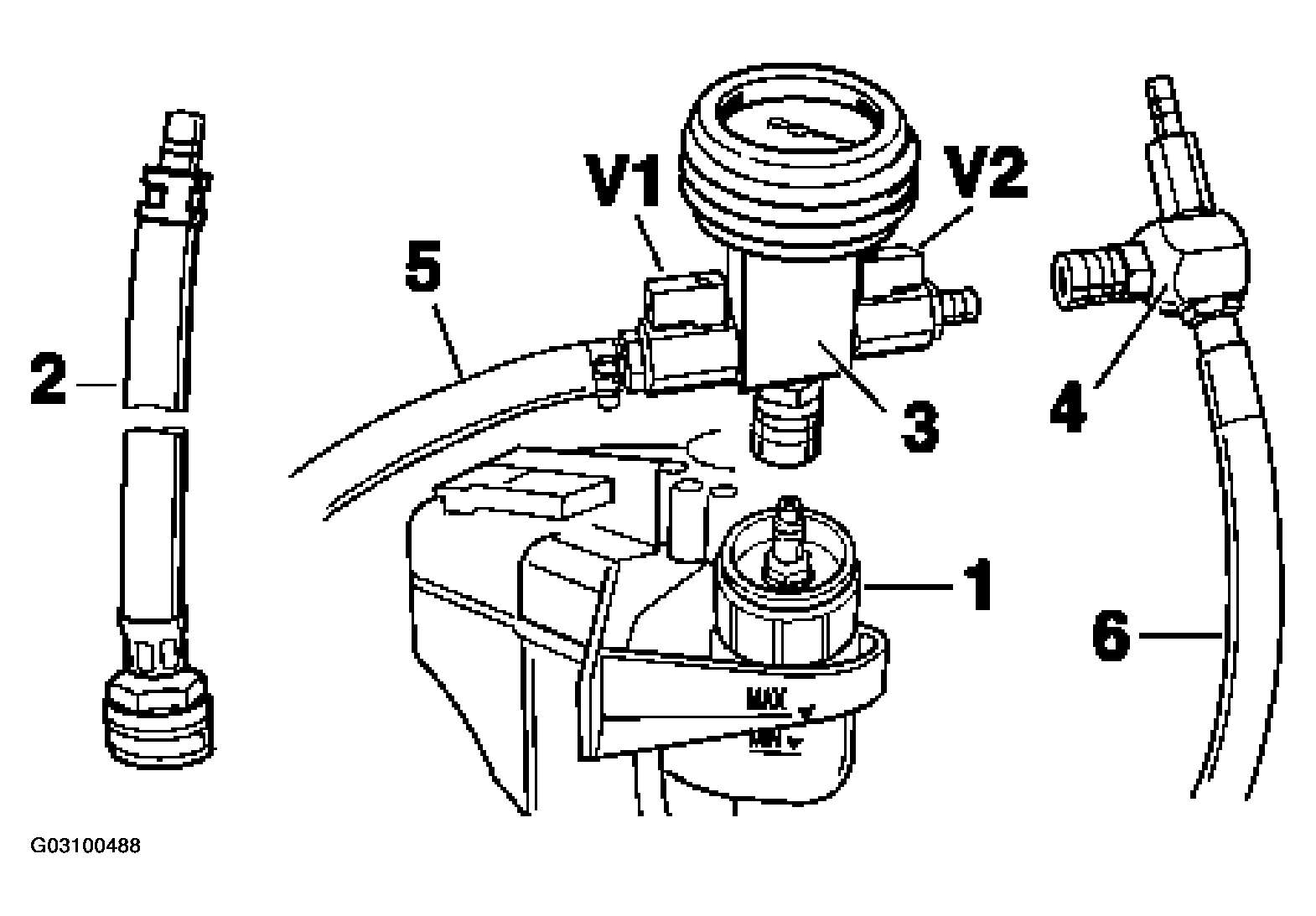

Components of the radiator, vacuum, filler device
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2005 Porsche 911, 2004 Porsche 911, 2003 Porsche 911, 2002 Porsche 911, and 2001 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
SPECIAL TOOL DESIGNATION
| Item | Designation | Special tool | Remarks |
|---|---|---|---|
| 1 | Adapter K 22 | Is installed in place of the cap of the coolant expansion tank. | |
| 2 | Hose extension FZ 100 | Is installed between K22 and KVB 01. | |
| 3 | KVB 01 | Vacuum pressure gauge with two shutoff valves. | |
| V1 | Shutoff valve V1 | Shutoff valve for the filler hose. | |
| V2 | Shutoff valve V2 | Shutoff valve for the return line hose. | |
| 4 | Venturi nozzle | Commercially available, included in the scope of delivery of KVB 01 | A vacuum is produced in this component by means of the compressed air. A pressure between 6 and 10 Bar must be present. |
| 5 | Filler hose | The cooling system is refilled via this hose. | |
| 6 | Return line | The compressed air and the intake coolant are drawn off via this hose. |
