Disassembling and assembling inlet camshaft: Notes
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2005 Porsche 911, 2004 Porsche 911, 2003 Porsche 911, 2002 Porsche 911, and 2001 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
Preassemble inlet camshaft before inserting in cylinder head

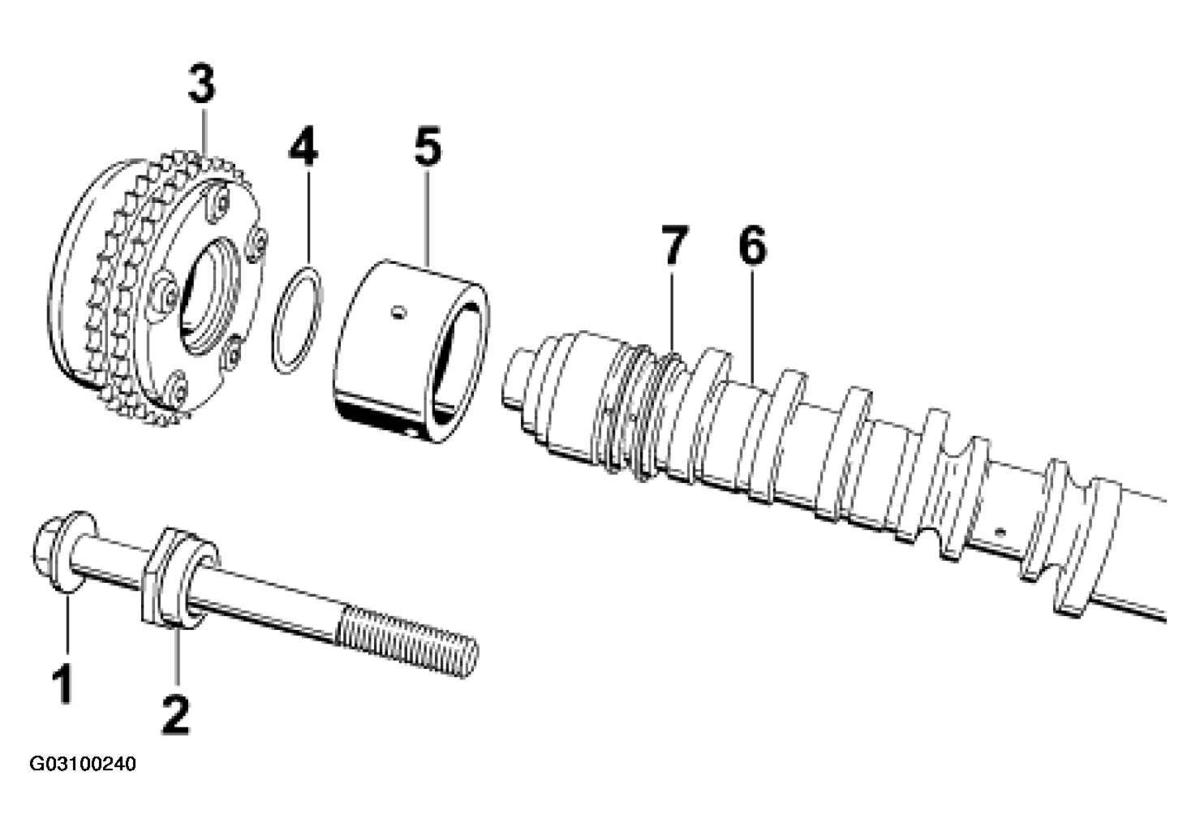

INLET CAMSHAFT REMOVAL/INSTALLATION
| No. | Designation | Qty. | Removal | Installation |
|---|---|---|---|---|
| 1 | Central screw | 1 | Replace | |
| 2 | Adapter | 1 | Re-use | |
| 3 | Camshaft adjustment device | 1 | Observe identification! | |
| 4 | Washer | 1 | Re-use | |
| 5 | Bearing sleeve | 1 | Pay attention to the installation position! Inscription should face towards camshaft | |
| 6 | Inlet camshaft | 1 | Do not damage rotor cover | Do not damage rotor cover |
| 7 | Piston rings | 2 |
