Disassembling and assembling cylinder head - Inner parts: Tools
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2005 Porsche 911, 2004 Porsche 911, 2003 Porsche 911, 2002 Porsche 911, and 2001 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

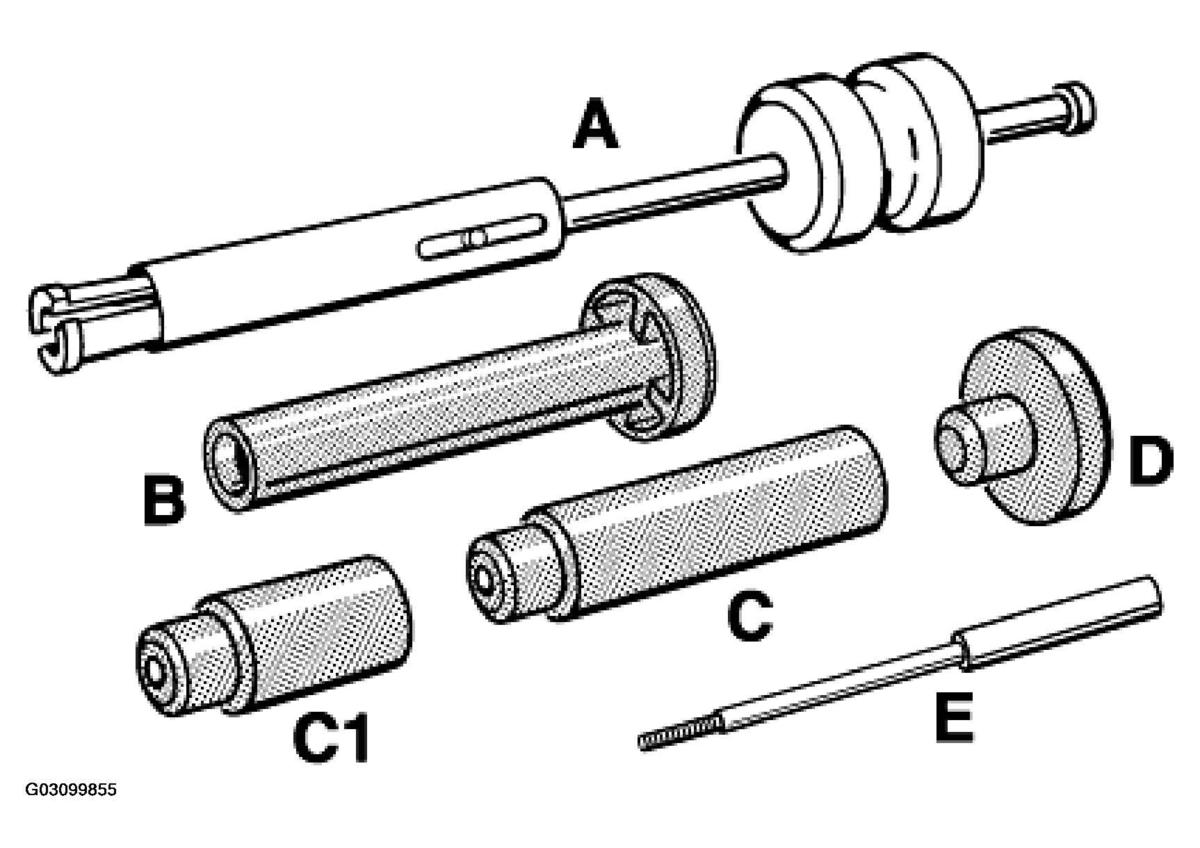

SPECIAL TOOL DESIGNATION (2 OF 2)
| Item | Designation | Special tool | Explanation |
|---|---|---|---|
| A | Extractor for valve stem seal | 3364 | VW special tool |
| B | Press-on tool for valve stem seal | 3365 | VW special tool |
| C | Pressure piece, for fitting the oil protection tubes | 9605 | |
| C1 | Pressure piece, for fitting the oil protection tubes (engine installed) | 9605/1 | |
| D | Hand pressure piece | 9604 | |
| E | Tensioning screw for relieving the tensioning elements (VarioCam) | 9632 | 1 set = 2 ea. |
