Tools (commercially available)
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2005 Porsche 911, 2004 Porsche 911, 2003 Porsche 911, 2002 Porsche 911, and 2001 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

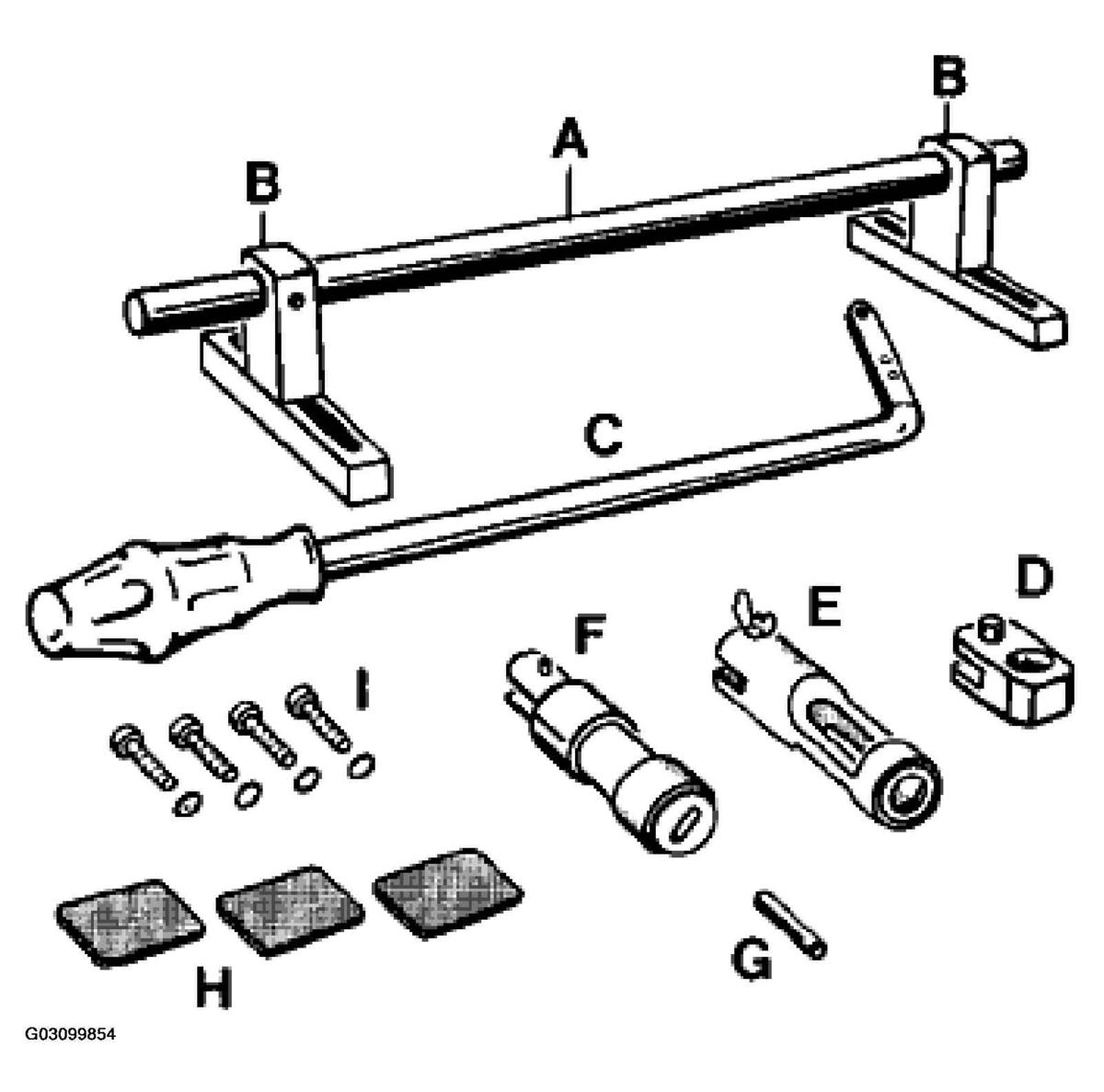

SPECIAL TOOL DESIGNATION (1 OF 2)
| Item | Designation | Special tool | Explanation |
|---|---|---|---|
| A | Shaft ( "PHI" 20 x 450 mm) | Art. No. 6024515 | |
| B | Aluminium supports (1 pair) | Art. No. 6023620 | |
| C | Lever arm | Art. No. 6023530 | |
| D | Joint with screw | Art. No. 6024520 | |
| E | Magnetic disassembly head | Art. No. 6024650 | |
| F | Assembly head 1b for valve keys | Art. No. 6000102 | |
| G | Pressure piece 6e (3 ea.) | Art. No. 6006015 | |
| H | Pad for valve discs (3 ea.) | Art.-No. 6025665 | |
| I | Screws for aluminium supports (4 ea.) | Commercially available, M6 x 40 |
