Assembly instructions

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2005 Porsche 911, 2004 Porsche 911, 2003 Porsche 911, 2002 Porsche 911, and 2001 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

The cylinder heads differ in the area of the chain tensioners and are therefore marked on the front with 1 - 3 or 4 - 6 to prevent mix-ups.

Cylinder bank 1-3

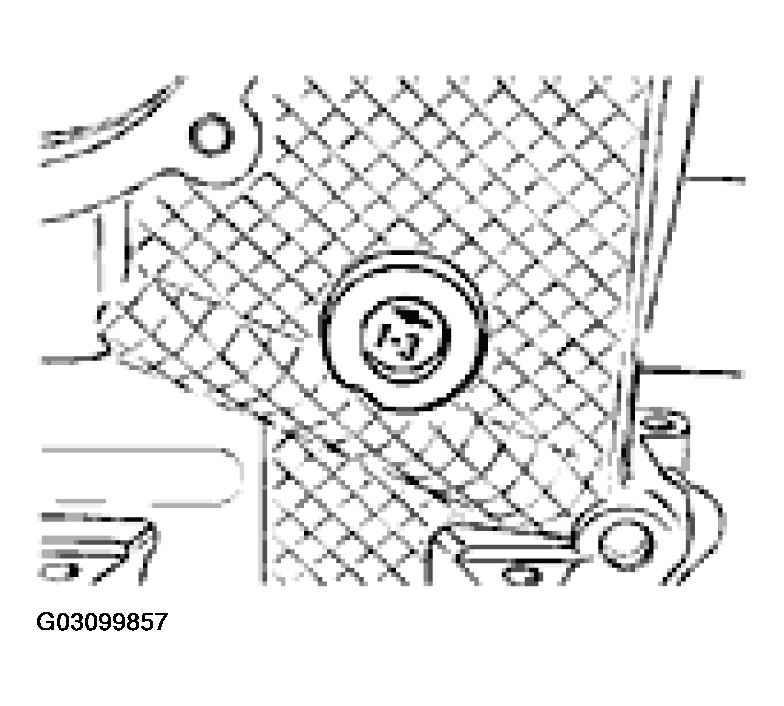

Fig 1: Identifying Cylinder Bank 1-3
G03099857Courtesy of PORSCHE OF NORTH AMERICA, INC.

Cylinder bank 4-6

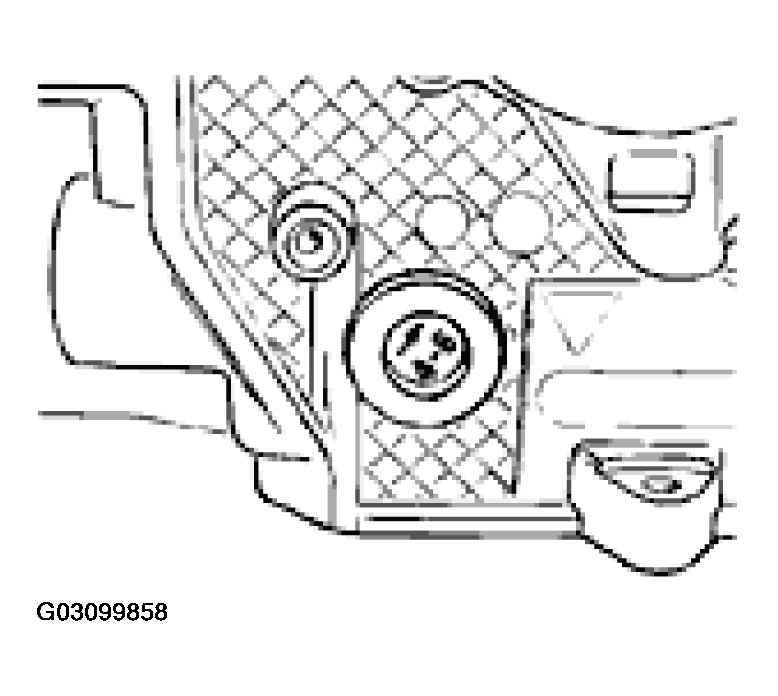

Fig 2: Identifying Cylinder Bank 4-6
G03099858Courtesy of PORSCHE OF NORTH AMERICA, INC.
