Cylinder head assembly instructions

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2005 Porsche 911, 2004 Porsche 911, 2003 Porsche 911, 2002 Porsche 911, and 2001 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Pairing numbers or identification for cylinder head, cylinder head cover and camshaft bearing saddles.

The cylinder head, cylinder head cover and camshaft bearing saddles are machined together and must therefore always be installed together. Observe pairing numbers.

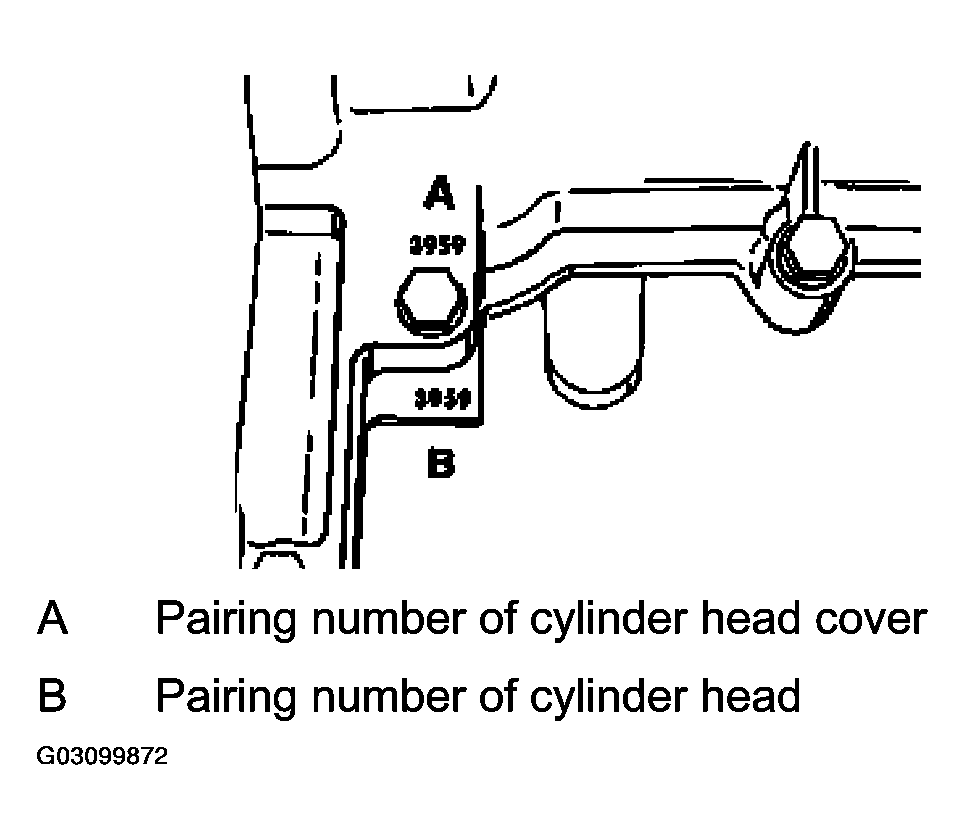

Fig 1: Identifying Pairing Numbers Of Cylinder Head And Cover

Courtesy of PORSCHE OF NORTH AMERICA, INC.

Pairing number of cylinder head cover
Pairing number of cylinder head
Pairing number of the two bearing saddles

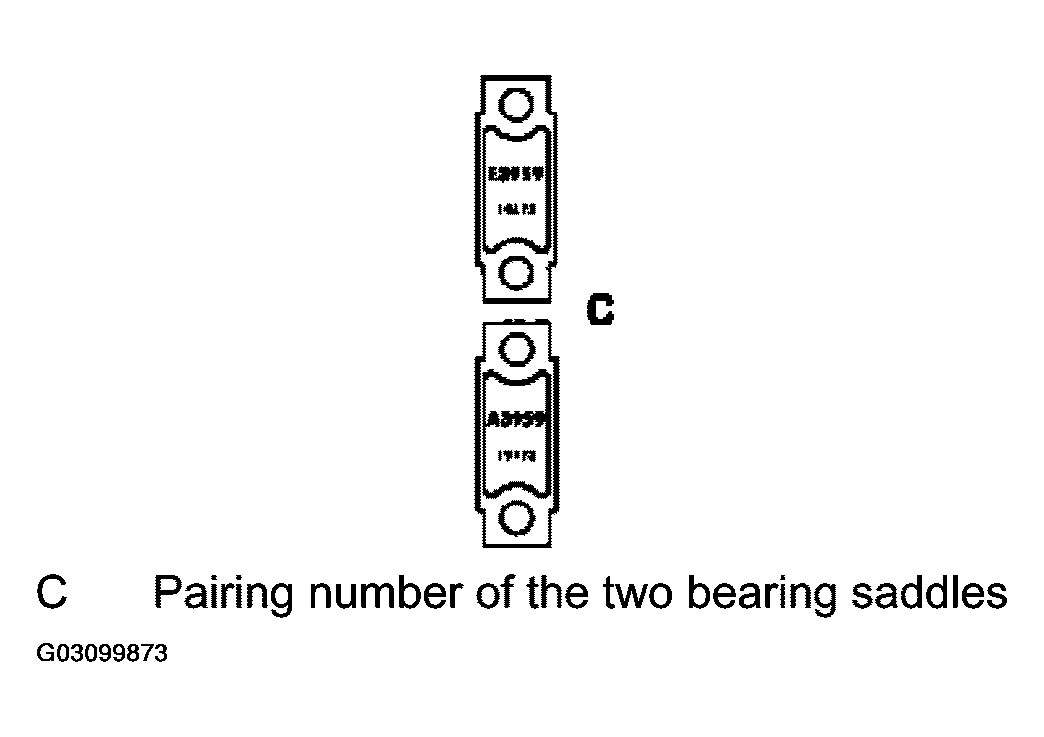

Fig 2: Identifying Pairing Number Of Two Camshaft Bearing Saddles

Courtesy of PORSCHE OF NORTH AMERICA, INC.

NOTE:

The letters E or A before pairing numbers mean:
E = Bearing saddle for inlet camshaft
A = Bearing saddle for exhaust camshaft
