Allocating tensioning elements

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2005 Porsche 911, 2004 Porsche 911, 2003 Porsche 911, 2002 Porsche 911, and 2001 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Identification of the chain tensioner for cylinder bank 1 - 3:

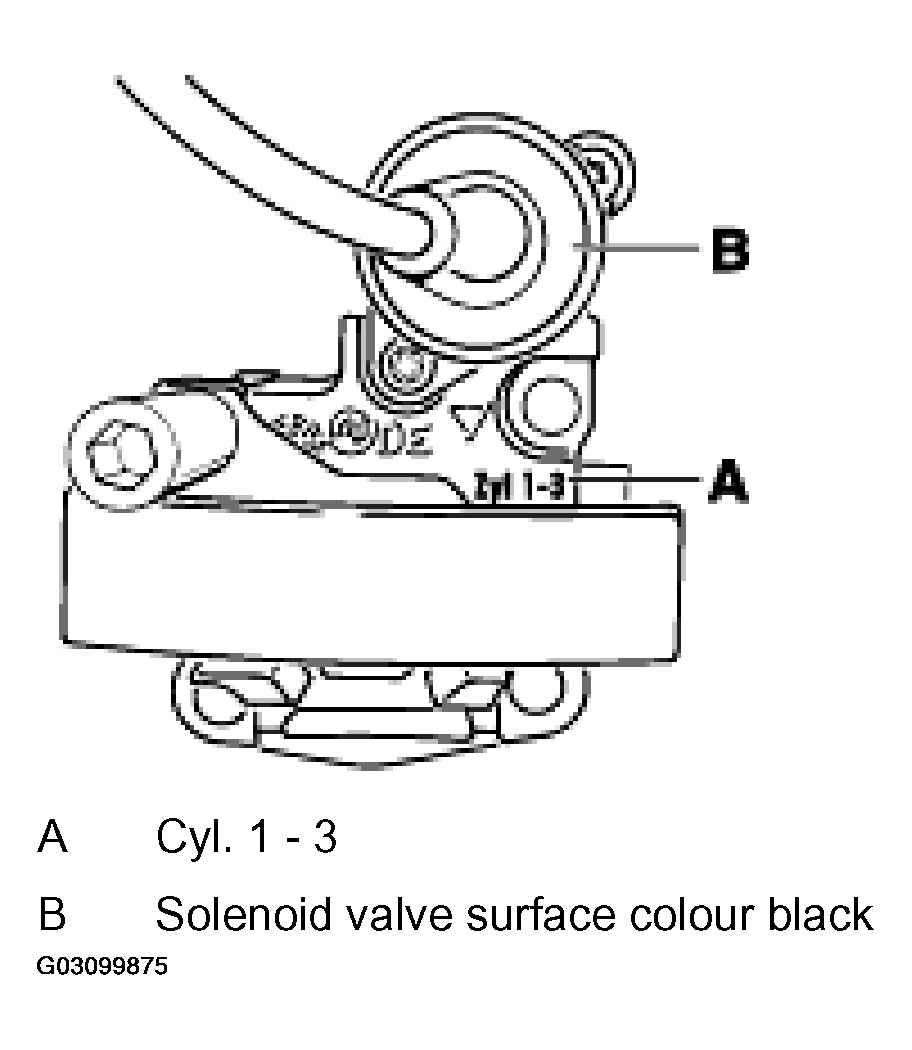

Fig 1: Identifying Chain Tensioner For Cylinder Bank 1 - 3

Courtesy of PORSCHE OF NORTH AMERICA, INC.

Cyl. 1 - 3
Solenoid valve surface colour black

Identification of the tensioning element for cylinder bank 4 - 6:

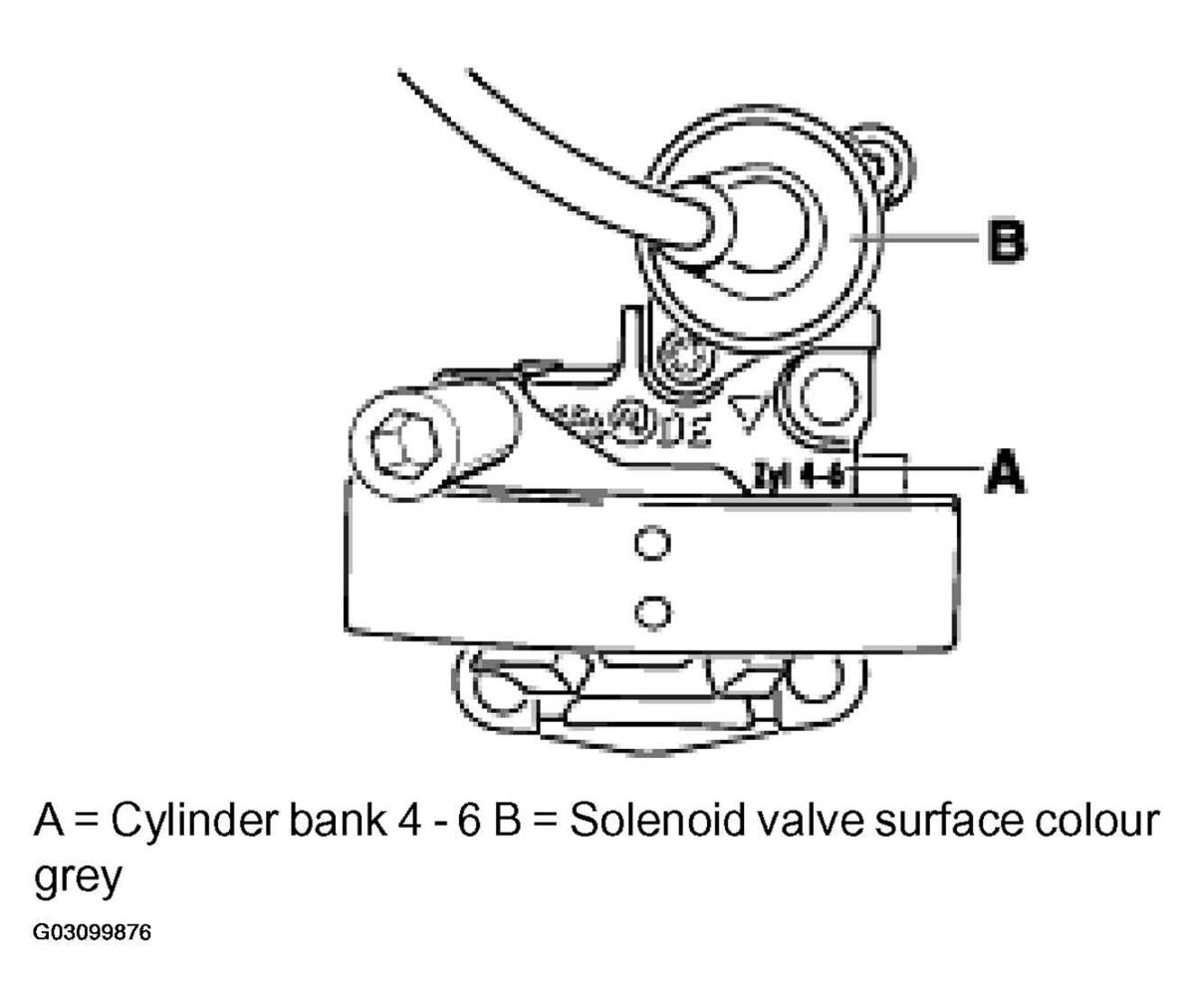

Fig 2: Identifying Chain Tensioning Element For Cylinder Bank 4 - 6

Courtesy of PORSCHE OF NORTH AMERICA, INC.

A = Cylinder bank 4 - 6 B = Solenoid valve surface colour grey
