Disassembling crankshaft

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2005 Porsche 911, 2004 Porsche 911, 2003 Porsche 911, 2002 Porsche 911, and 2001 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove tensioning sleeve (6 x 16) with a vice-grip wrench.
  2. Clamp retaining plate P 209 a in the vice.
  3. Fasten the crankshaft to the retaining plate with 3 -pan-head screws-  Part No. 928 102 151 01.

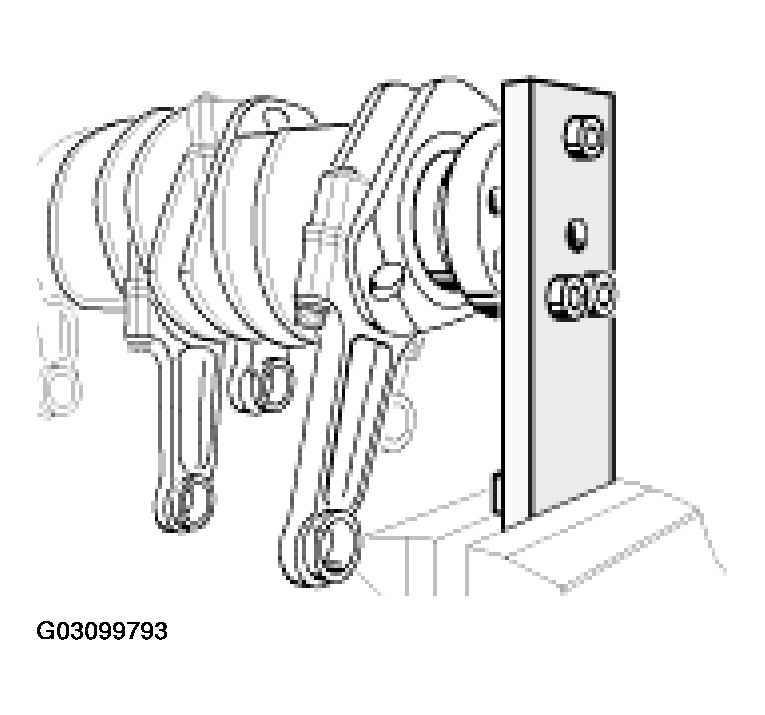

    Fig 1: Fastening Crankshaft To Retaining Plate With 3 Pan-Head Screws
    G03099793Courtesy of PORSCHE OF NORTH AMERICA, INC.
  4. Loosen connecting rods with socket wrench insert M14 and remove.
  5. Remove snap ring with snap ring pliers.

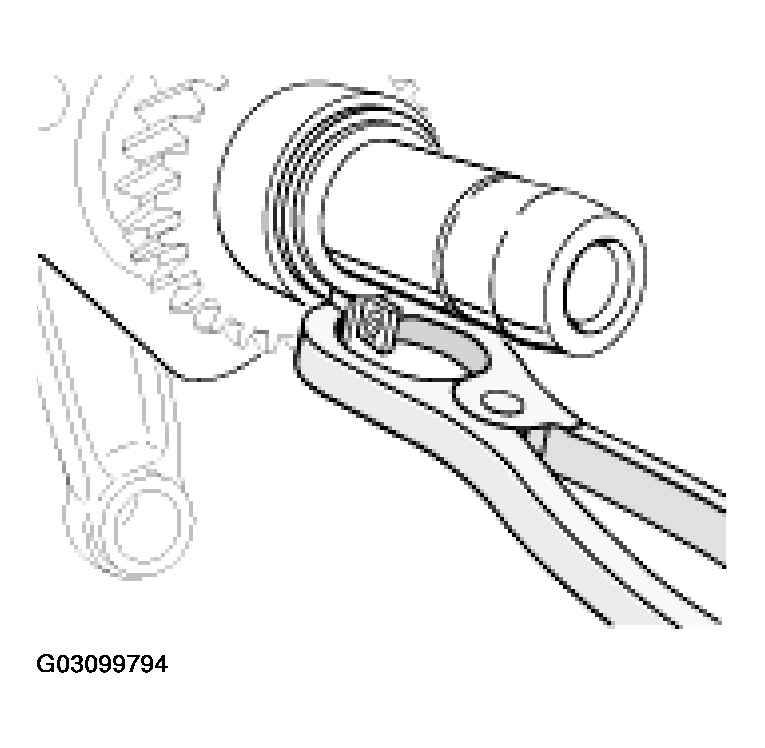

    Fig 2: Removing Spacer Ring And Timing Gear Snap Ring With Snap Ring Pliers
    G03099794Courtesy of PORSCHE OF NORTH AMERICA, INC.
  6. Remove spacer ring and timing gear with a conventional puller.
  7. Lift Woodruff key with side cutters and remove.
  8. Remove crankshaft from retaining plate.
  9. Check crankshaft for eccentricity, cracks and wear.
  10. Carry out sounding test.
