Mounting instructions: Notes

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2005 Porsche 911, 2004 Porsche 911, 2003 Porsche 911, 2002 Porsche 911, and 2001 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Before assembling the crankcase halves, check a threaded bore (arrow) on the lower part of the crankcase half of cylinder bank 1 - 3 for continuity.

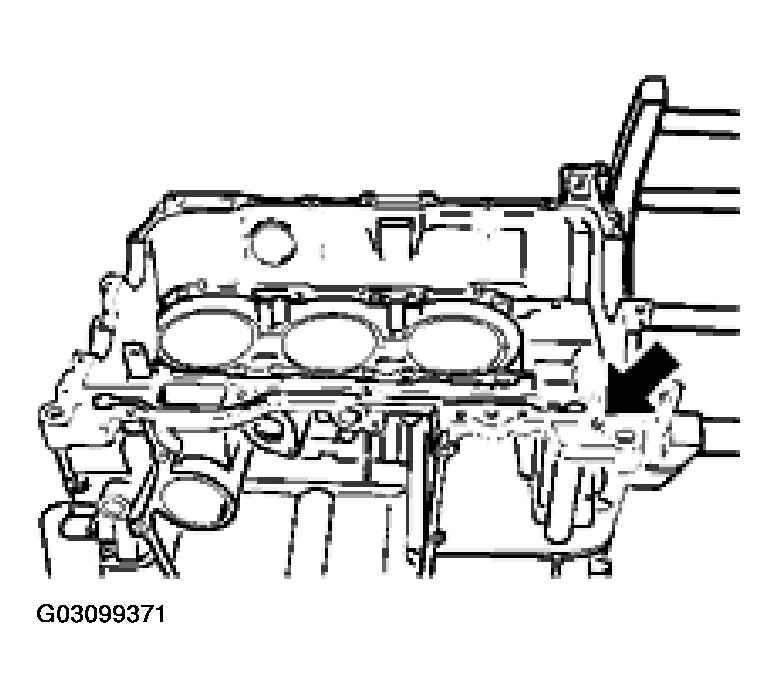

Fig 1: Checking Threaded Bore On Lower Part Of The Crankcase Half Of Cylinder Bank 1-3
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Re-cut thread or cut it all the way through if necessary.

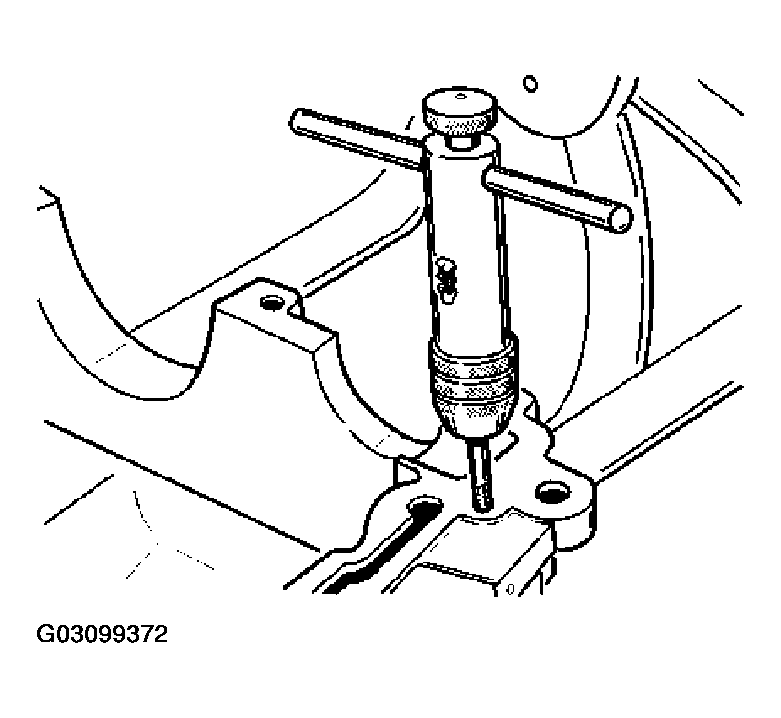

Fig 2: Re-Cutting Thread
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Insert an M6 x 40 (was M6 x 35) hexagon-head bolt into this thread with Loctite 574 when assembling the crankcase halves.
