Fitting crankshaft sealing ring

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2005 Porsche 911, 2004 Porsche 911, 2003 Porsche 911, 2002 Porsche 911, and 2001 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

(Flywheel side)

Insert sealing ring as far as it will go using insertion tool 9609.

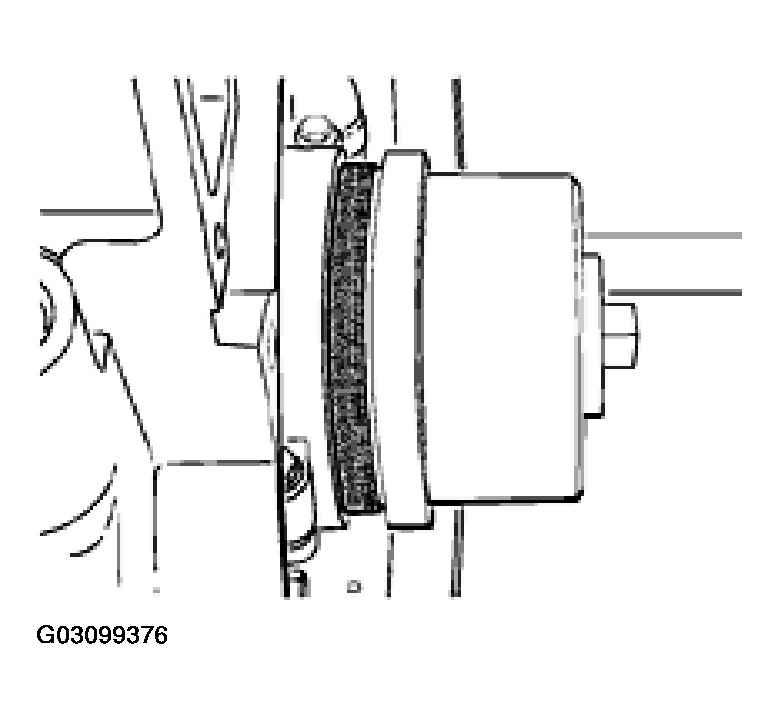

Fig 1: Inserting Sealing Ring (Flywheel Side)

Courtesy of PORSCHE OF NORTH AMERICA, INC.

(Pulley side)

Insert sealing ring as far as it will go using insertion tool 9610.

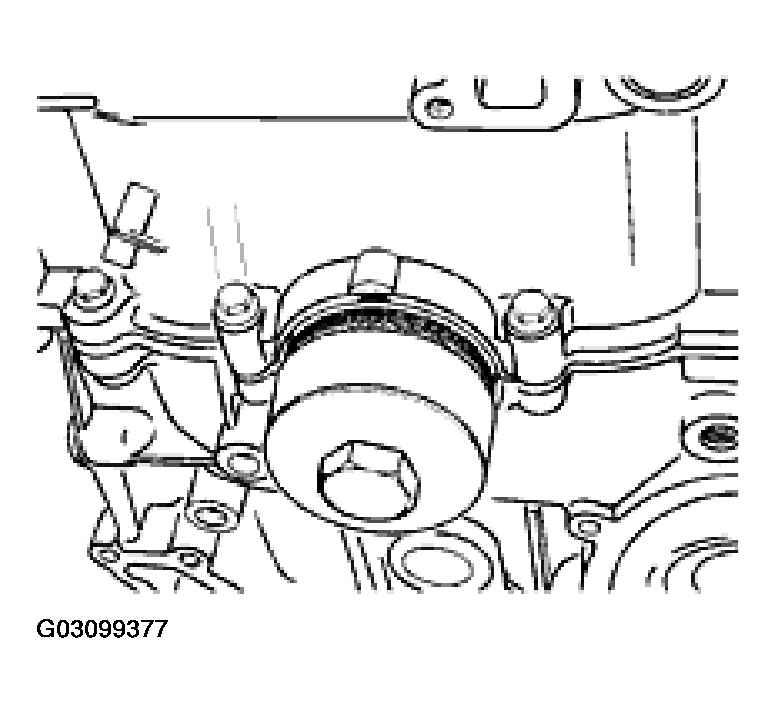

Fig 2: Inserting Sealing Ring (Pulley Side)

Courtesy of PORSCHE OF NORTH AMERICA, INC.
