Disassembling and assembling bearing housing with intermediate shaft
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2005 Porsche 911, 2004 Porsche 911, 2003 Porsche 911, 2002 Porsche 911, and 2001 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

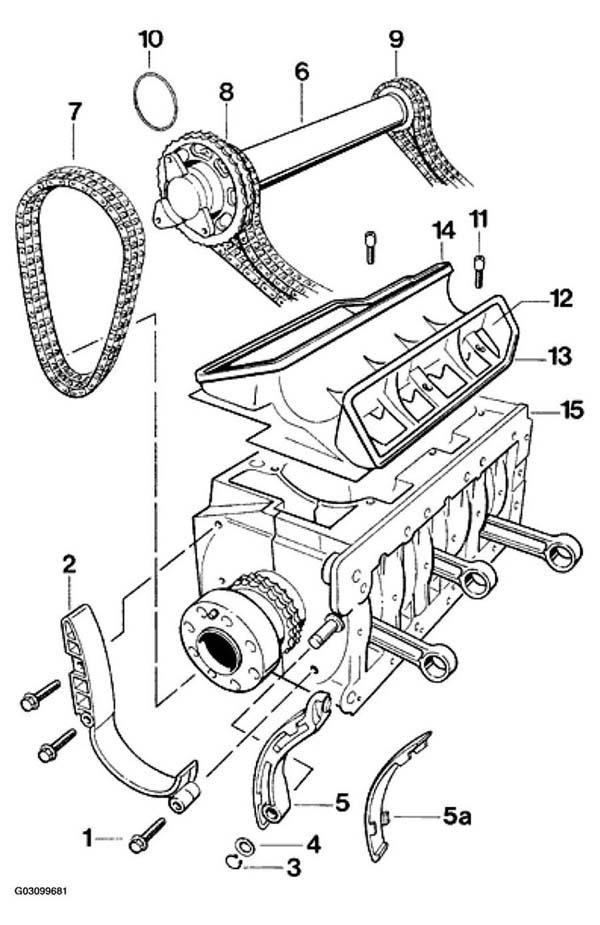

BEARING HOUSING WITH INTERMEDIATE SHAFT DISASSEMBLY/ASSEMBLY PROCEDURE (1 OF 2)
| No. | Designation | Qty. | Removal | Installation |
|---|---|---|---|---|
| 1 | Hexagon-head screw with captive washer M6 x 40 | 3 | ||
| 2 | Guide rail | 1 | Check for wear marks and replace if necessary | |
| 3 | Snap ring | 1 | Replace; ensure correct seating | |
| 4 | Shim 10 x 16 x 1.2 | 1 | ||
| 5 | Tensioning rail | 1 | ||
| 5a | Lining for tensioning rail | 1 | Unclip | Check for wear marks and replace if necessary |
| 6 | Intermediate shaft | 1 | ||
| 7 | Chain for intermediate shaft drive | 1 | ||
| 8 | Chain for camshaft drive of cylinder bank 1 - 3 | 1 | ||
| 9 | Chain for camshaft drive of cylinder bank 4 - 6 | 1 | ||
| 10 | O-ring 52 x 2.5 | 1 | Always replace; do not fit twisted | |
| 11 | Pan-head screw M6 x 16 (micro-encapsulated) | 6 | Replace | |
| 12 | Gasket | 1 | ||
| 13 | Gasket | 1 | Ensure correct seating | |
| 14 | Oil guide | Ensure correct seating | ||
| 15 | Bearing housing, completely preassembled | 1 | Assemble on assembly fixture 9607 | Assemble on assembly fixture 9607 |

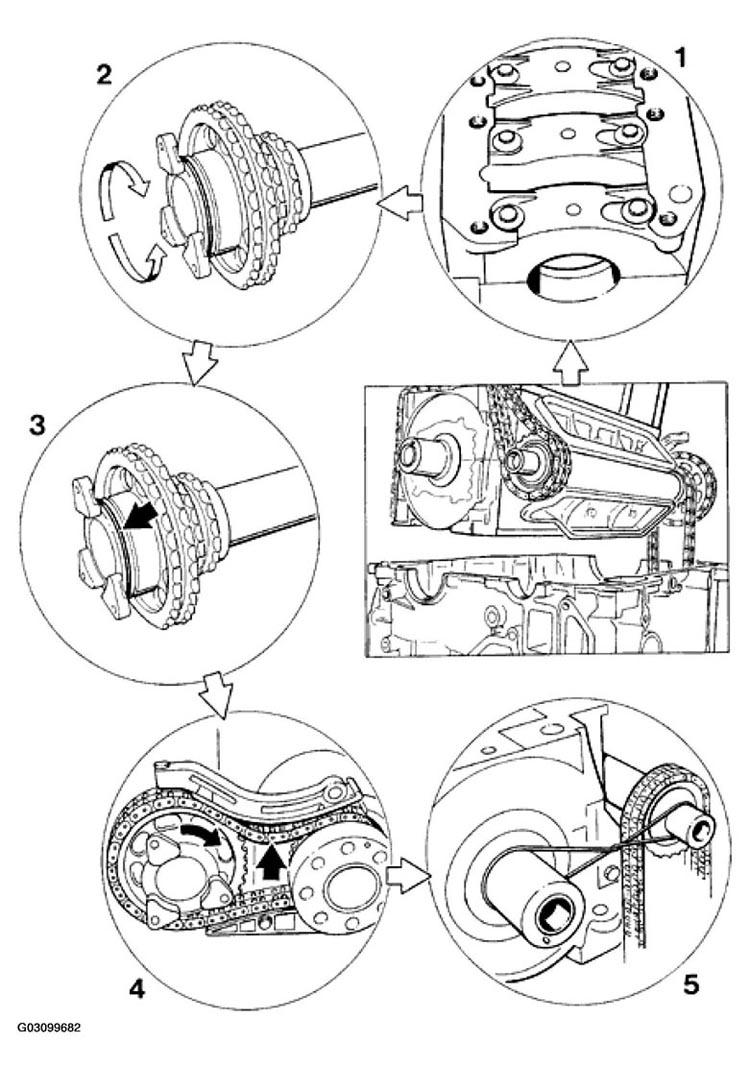

BEARING HOUSING WITH INTERMEDIATE SHAFT DISASSEMBLY/ASSEMBLY PROCEDURE (2 OF 2)
| No. | Procedure | Instructions |
|---|---|---|
| 1 | Checking sealing surfaces | Check both sealing surfaces of bearing housing for damage and cleanliness before installation in the bearing housing. Grind off sharp edges if necessary. |
| 2 | Checking flange bearing of intermediate shaft | Check flange for ease of movement or roughness of bearing; replace intermediate shaft if necessary. |
| 3 | Fitting O-ring | Carefully fit O-ring in the groove of the intermediate-shaft flange. Do not fit twisted. Grease lightly |
| 4 | Fitting chain for intermediate shaft | Put on chain between crankshaft drive sprocket and intermediate shaft drive sprocket. Fit guide rail and tensioning rail. After installation, turn intermediate shaft sprocket slightly by hand in clockwise direction and check whether there is sag in the upper chain area. Check chain installation if necessary. |
| 5 | Prepare intermediate shaft and crankshaft for installation | To facilitate assembly, before installing the complete bearing housing unit in the crankcase half (cylinder row 1-3), connect the crankshaft and intermediate shaft with an O-ring. |
