Special tools
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2005 Porsche 911, 2004 Porsche 911, 2003 Porsche 911, 2002 Porsche 911, and 2001 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

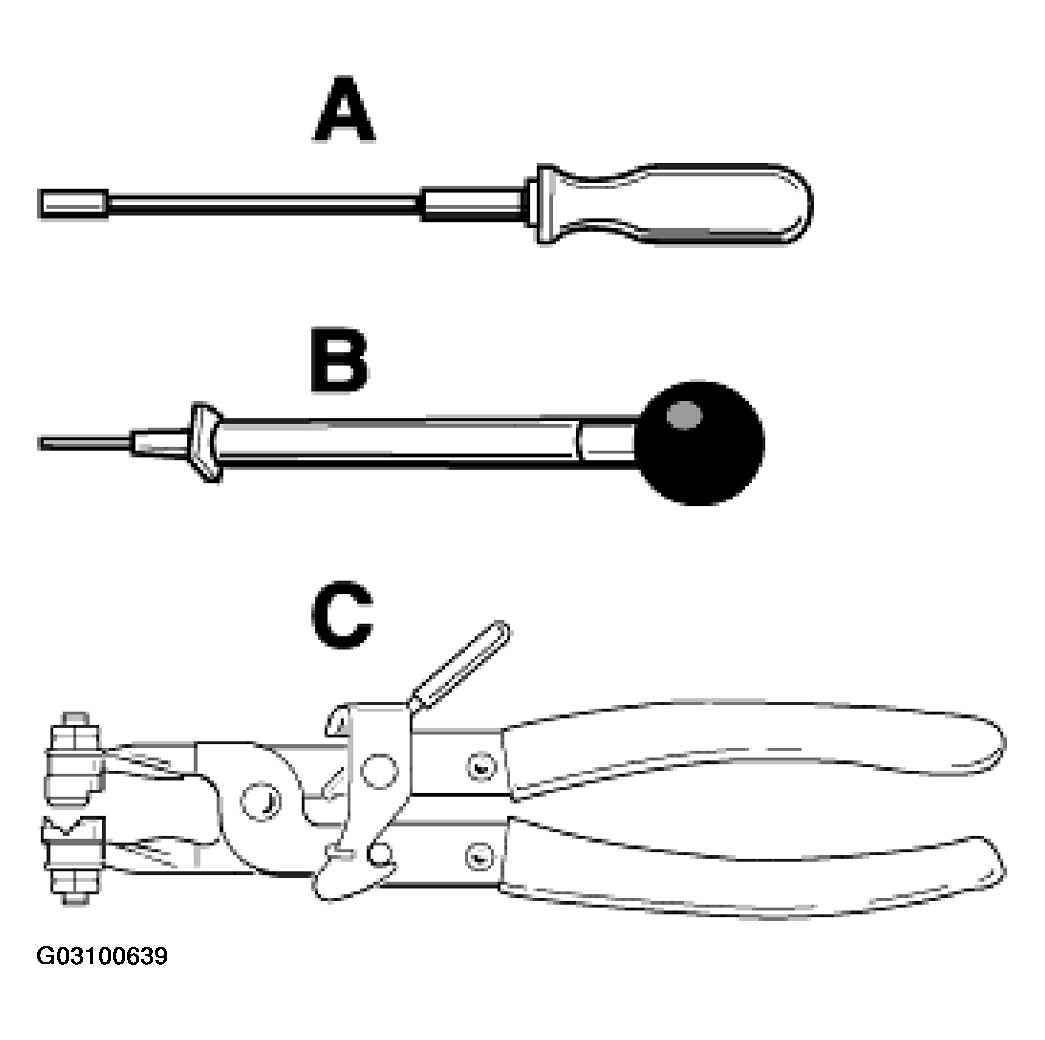

SPECIAL TOOLS DESIGNATION - COOLING SYSTEM CLEANING (1 OF 2)
| Item | Designation | Special tool | Remarks |
|---|---|---|---|
| A | Flexible screwdriver SW 7 | Commercially available | For undoing or tightening screw hose clamps. |
| B | Frost protection testing device | Commercially available | For checking the frost protection content in the coolant circuit. The structural shape can deviate from that in shown in the illustration. |
| C | Spring-band clamp pliers | Commercially available | For opening and closing spring-band clamps |

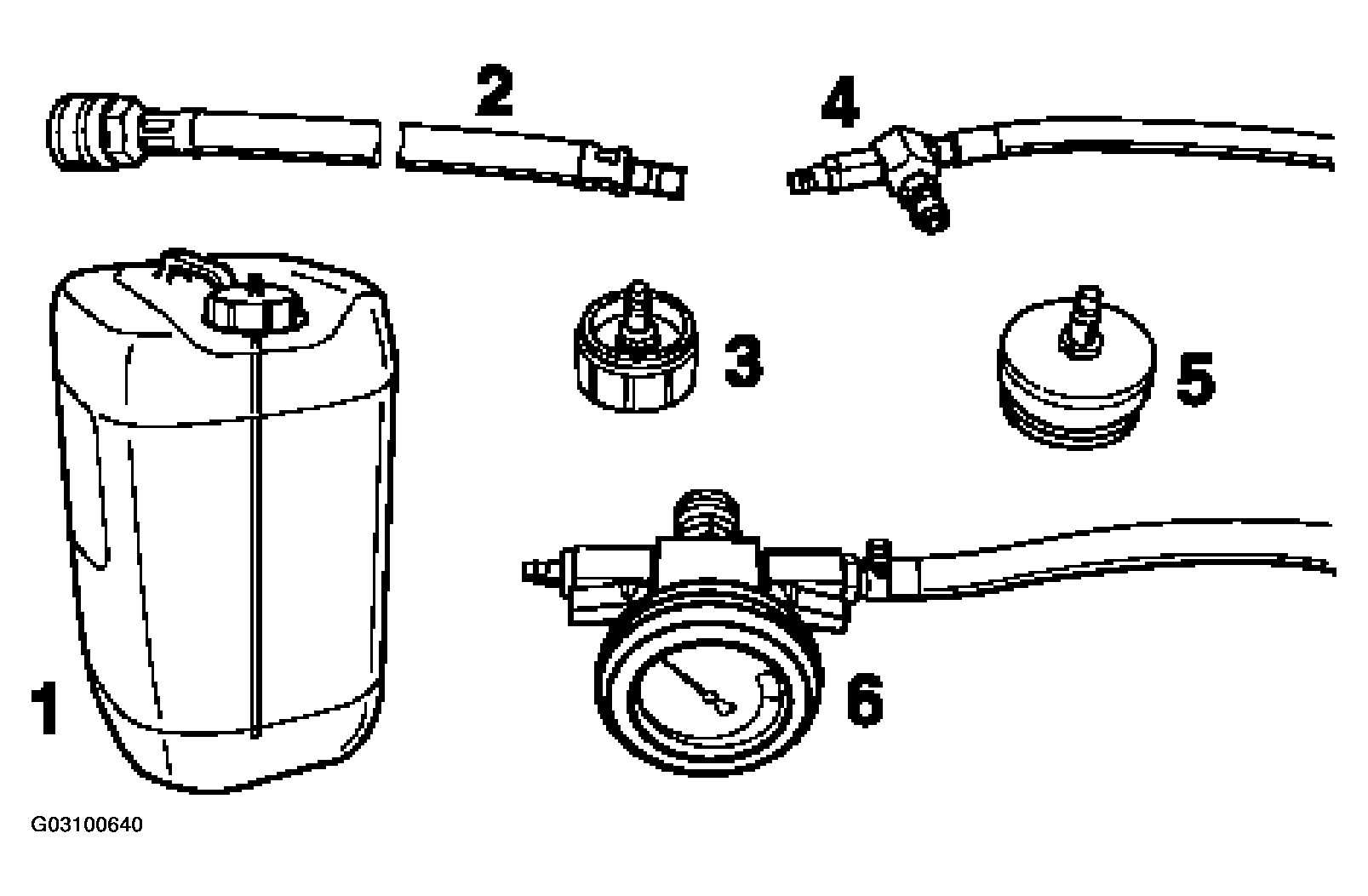

SPECIAL TOOLS DESIGNATION - COOLING SYSTEM CLEANING (2 OF 2)
| Item | Designation | Special tool | Remarks |
|---|---|---|---|
| 1 | Canister | Contained in scope of delivery of 9696 | 30 L canister with lifting tube. |
| 2 | Hose extension FZ 100 K | Contained in scope of delivery of 9696. | Is connected between adapter K22 and pressure gauge part. |
| 3 | Adapter K 22 | Contained in scope of delivery of 9696. | Is mounted onto the coolant expansion tank. |
| 4 | Venturi nozzle (KVB 01) | Contained in scope of delivery of 9696. | For producing vacuum. |
| 5 | Adapter K 65 | Contained in scope of delivery of 9696 | |
| 6 | Pressure gauge (KVB 01) | Contained in scope of delivery of 9696. | Displays the existing vacuum. |
