Move camshafts, chain and tensioning element of cylinder bank 1 -3 to basic position or installation position.

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2005 Porsche 911, 2004 Porsche 911, 2003 Porsche 911, 2002 Porsche 911, and 2001 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Place the inlet camshaft and exhaust camshaft on a soft surface. The lug of the camshaft position sensor cover or the groove on the inlet camshaft and the dotting marks must face upward.

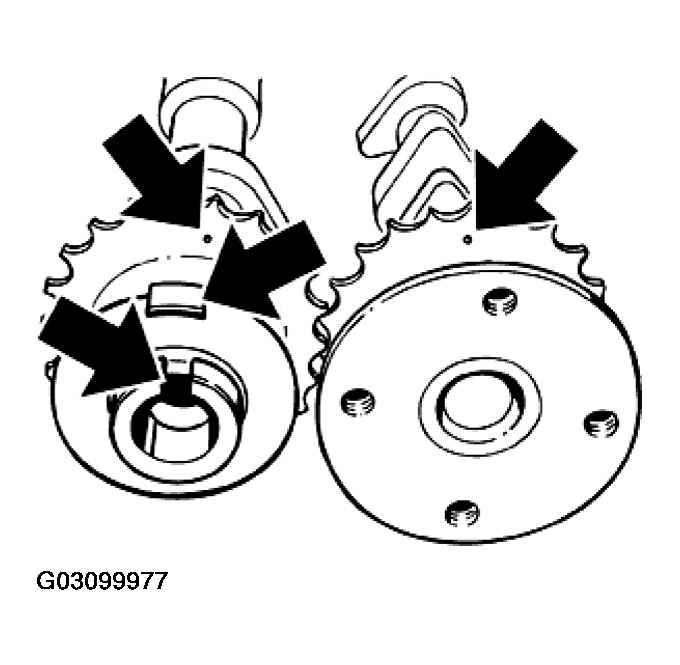

Fig 1: Identifying Inlet Camshaft Groove, Camshaft Position Sensor Cover Lug & Dotting Marks
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Place chain on the drive sprockets of the camshafts. The colored outer lugs of the chain must face the dotting marks.

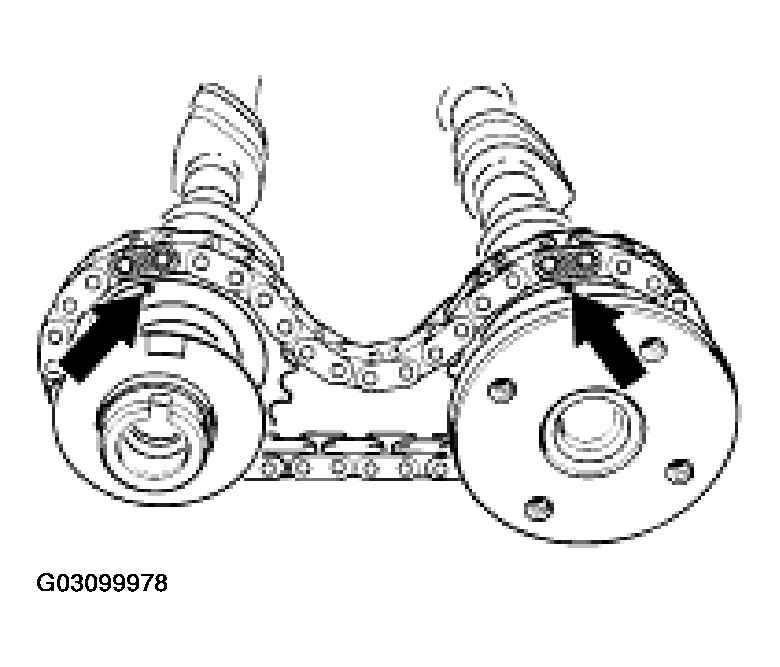

Fig 2: Aligning Colored Outer Lugs Of Chain With Dotting Marks On Drive Sprockets Of Camshafts
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Fit tensioning element.
3.1 Press slide rails together and push upward.

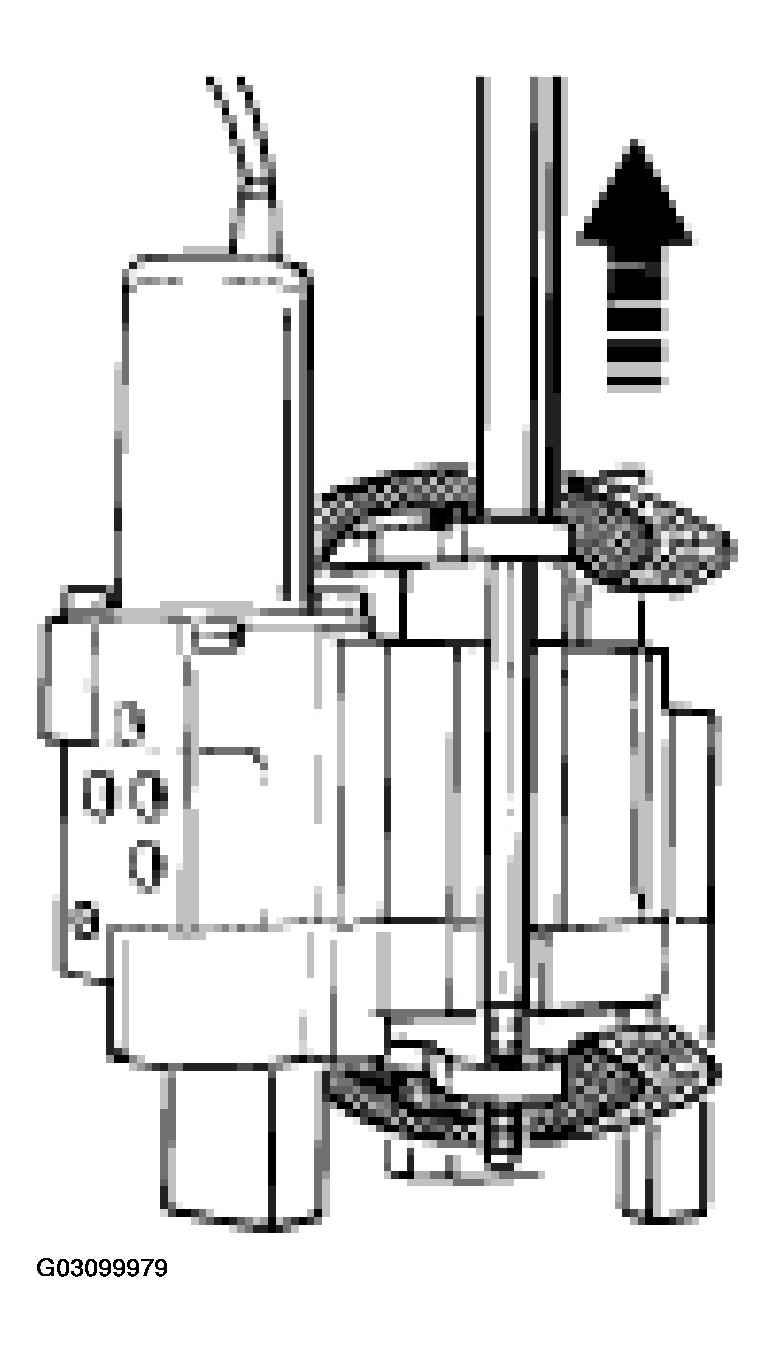

Fig 3: Pressing Tensioning Element Slide Rails Together And Pushing Upward
Courtesy of PORSCHE OF NORTH AMERICA, INC.

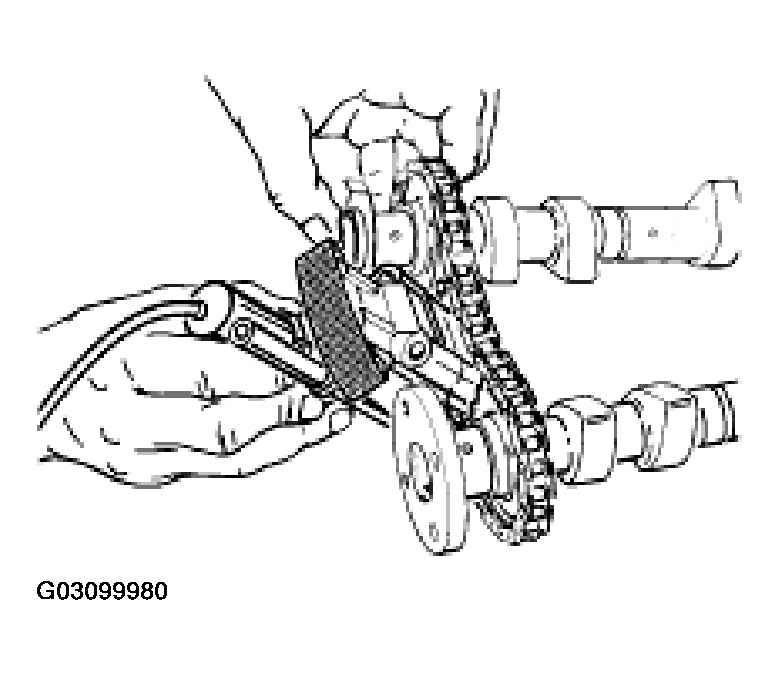

3.2 Lift inlet camshaft and insert tensioning element from the front.

Fig 4: Lifting Inlet Camshaft And Insert Tensioning Element From Front
Courtesy of PORSCHE OF NORTH AMERICA, INC.

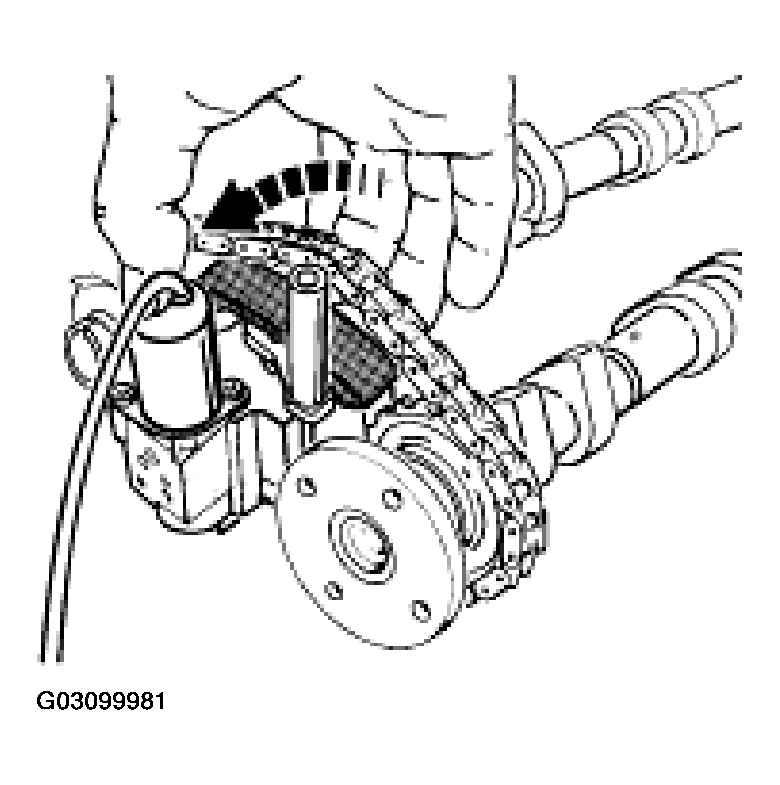

3.3 Fit chain; when doing so, observe clearance between the gear wheels and the lower slide rail.

Fig 5: Installing Chain On Tensioning Element
Courtesy of PORSCHE OF NORTH AMERICA, INC.

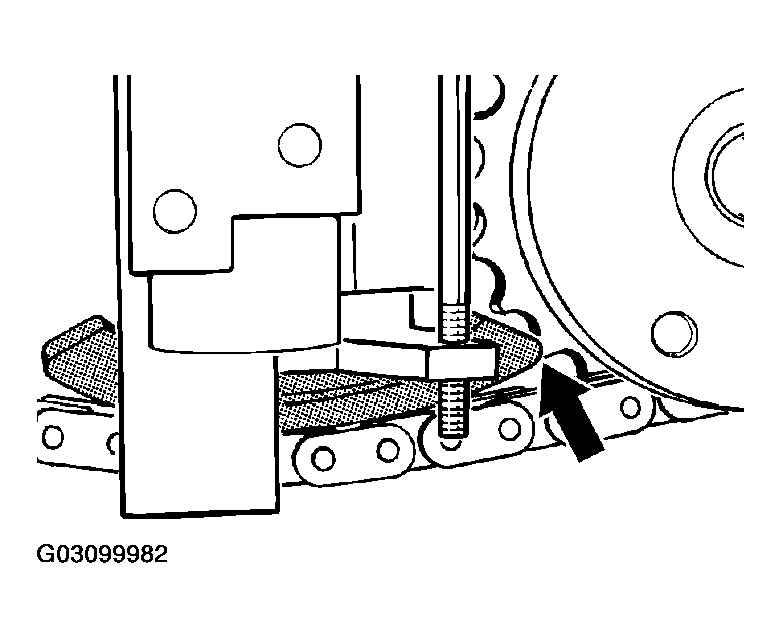

Fig 6: Checking Clearance Between Gear Wheels And Lower Slide Rail
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Completely preassembled and ready for installation. Do not remove the tensioning screw, special tool 9632, until the bearing saddles and the chain tensioner have been fastened on the cylinder head. If allocation is correct, the groove or lug of the camshaft position sensor housing face upward.

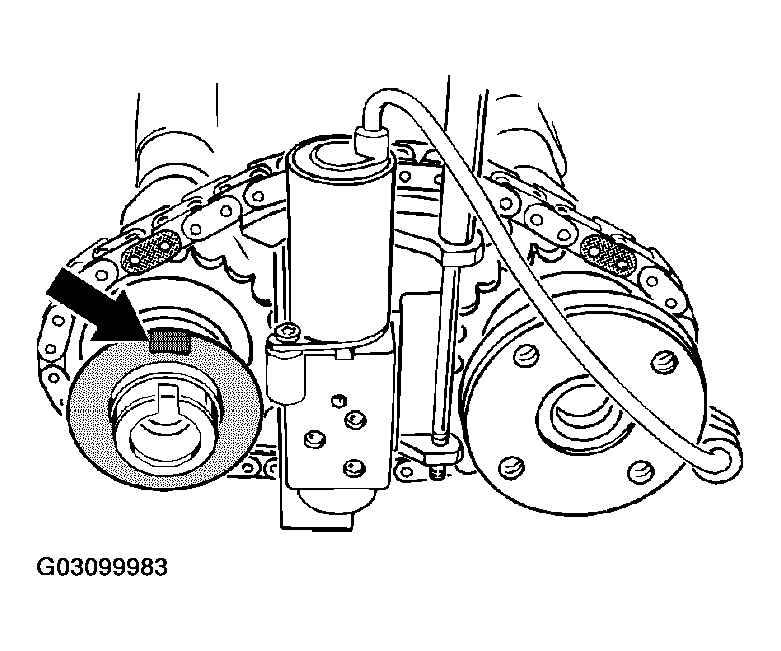

Fig 7: Ensuring Groove Or Lug Of The Camshaft Position Sensor Housing Faces Upward
