Camshaft allocation

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2005 Porsche 911, 2004 Porsche 911, 2003 Porsche 911, 2002 Porsche 911, and 2001 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Camshafts of cylinder bank 1 - 3

CAMSHAFT ALLOCATION (CYLINDER BANK 1 - 3)

Inlet camshaft:	221,55/3.4 IN 13
Exhaust camshaft:	222,55/3.4 EX 13

Camshafts of cylinder bank 4 - 6

CAMSHAFT ALLOCATION (CYLINDER BANK 4 - 6)

Inlet camshaft:	216.55/3.4 IN 46
Exhaust camshaft:	218.55/3.4 EX 46

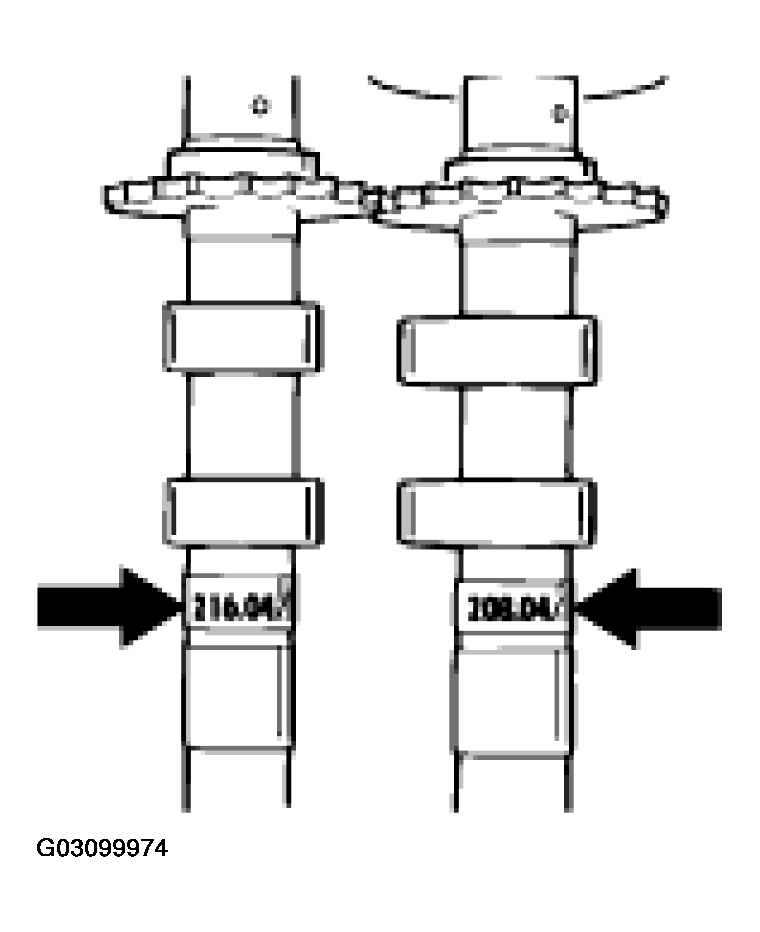

Fig 1: Locating Camshaft Identification Numbers

G03099974

Courtesy of PORSCHE OF NORTH AMERICA, INC.

Allocating tensioning elements

Identification for cylinder bank 1 - 3:

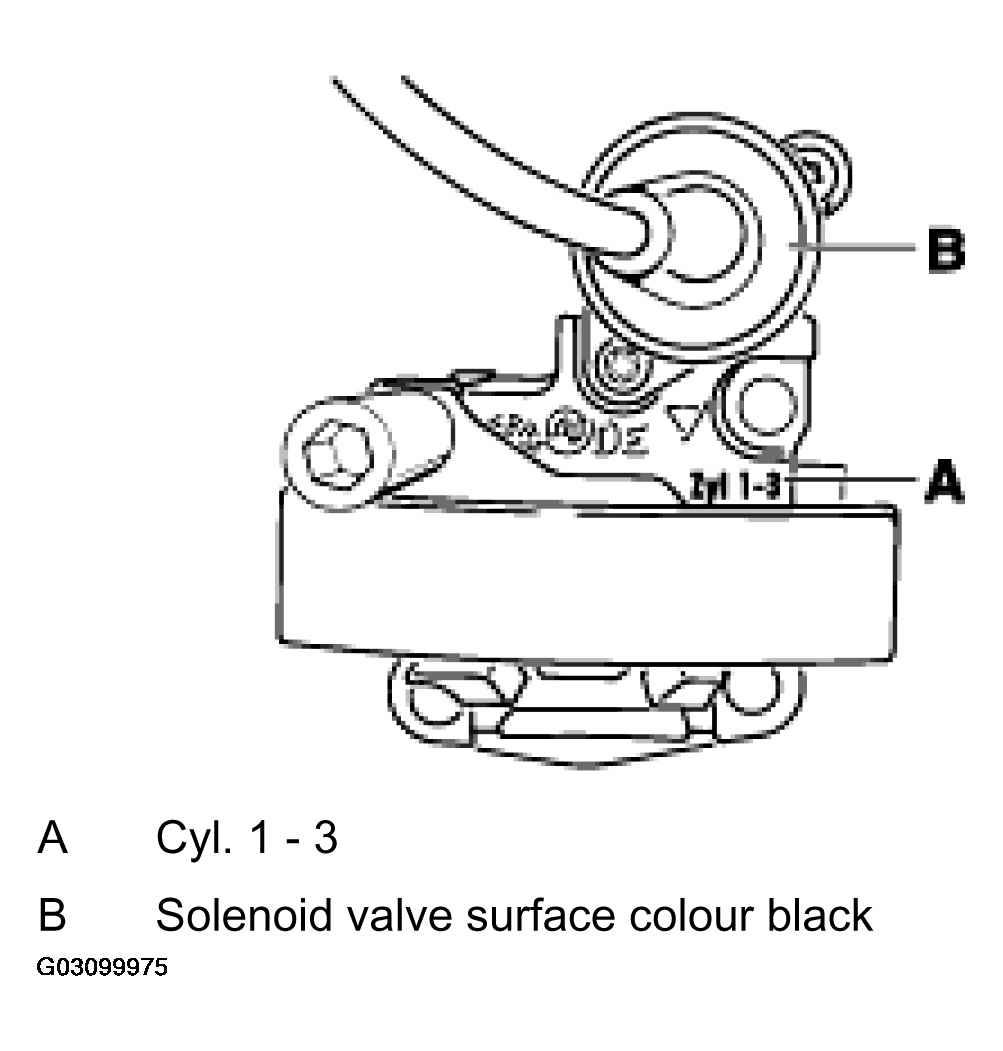

Fig 2: Identifying Cylinder Bank 1 - 3 Tensioning Element

G03099975

Courtesy of PORSCHE OF NORTH AMERICA, INC.

Cyl. 1 - 3
Solenoid valve surface colour black

Identification for cylinder bank 4 - 6:

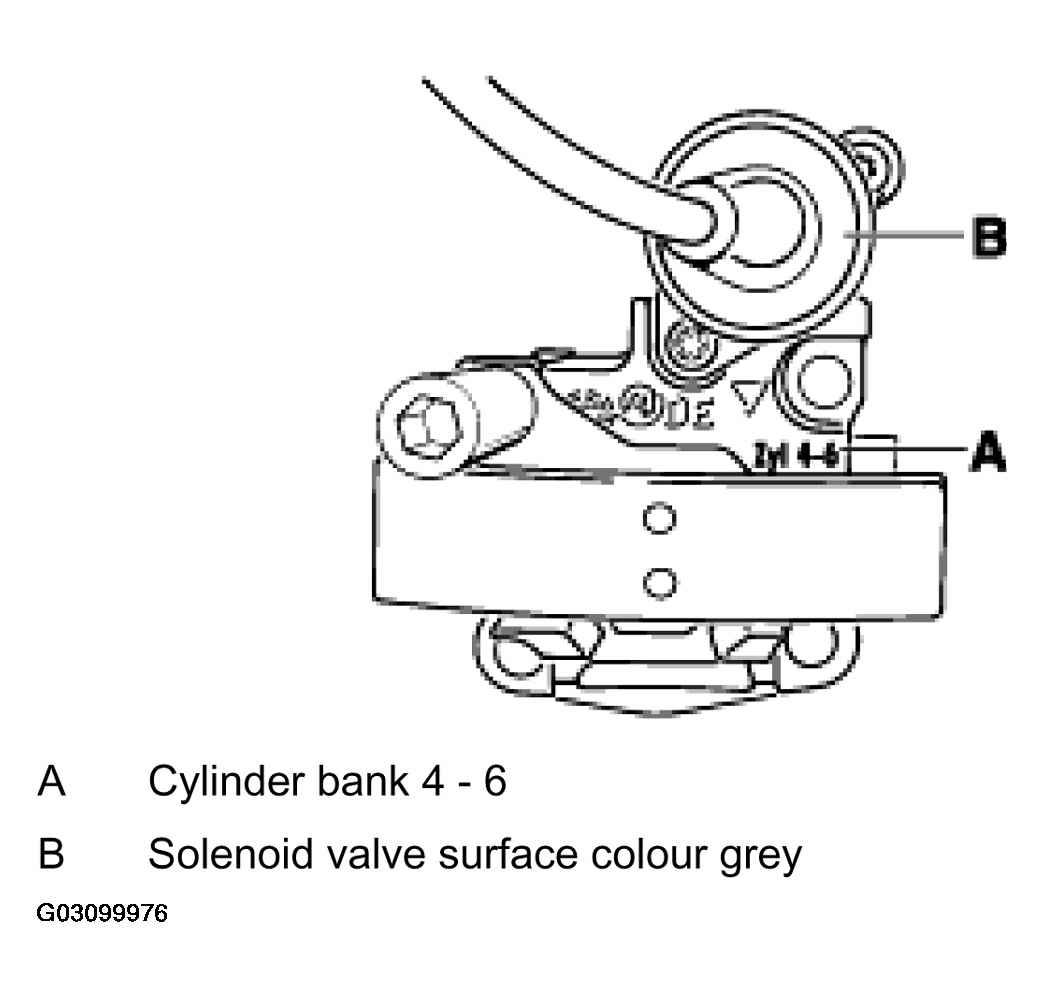

Fig 3: Identifying Cylinder Bank 4 - 6 Tensioning Element

G03099976

Courtesy of PORSCHE OF NORTH AMERICA, INC.

Cylinder bank 4 - 6
Solenoid valve surface colour grey
