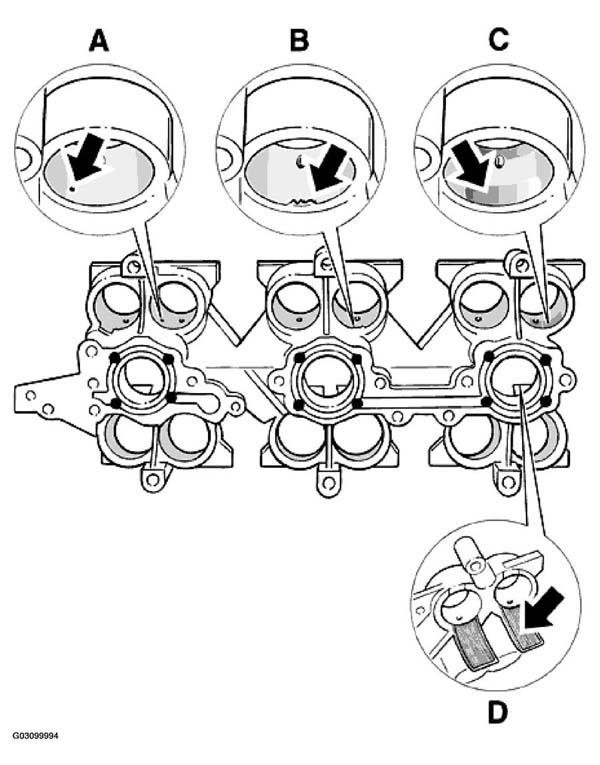

Limit sample photo
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2005 Porsche 911, 2004 Porsche 911, 2003 Porsche 911, 2002 Porsche 911, and 2001 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
The irregularities shown in the limit sample photo are normal and must not be classified as damage influencing the function of the part or requiring replacement of the part.
Permissible irregularities:
A =Voids up to max. 1 mm[sup2 ]
B =Fractures at the edges of the running surface of the valve tappet guide
C =Irregular contact patterns in the running surfaces of the valve tappet guide
D =Grooves in the oil pockets
