Checking camshafts (timing) - Engine installed: Notes
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2005 Porsche 911, 2004 Porsche 911, 2003 Porsche 911, 2002 Porsche 911, and 2001 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

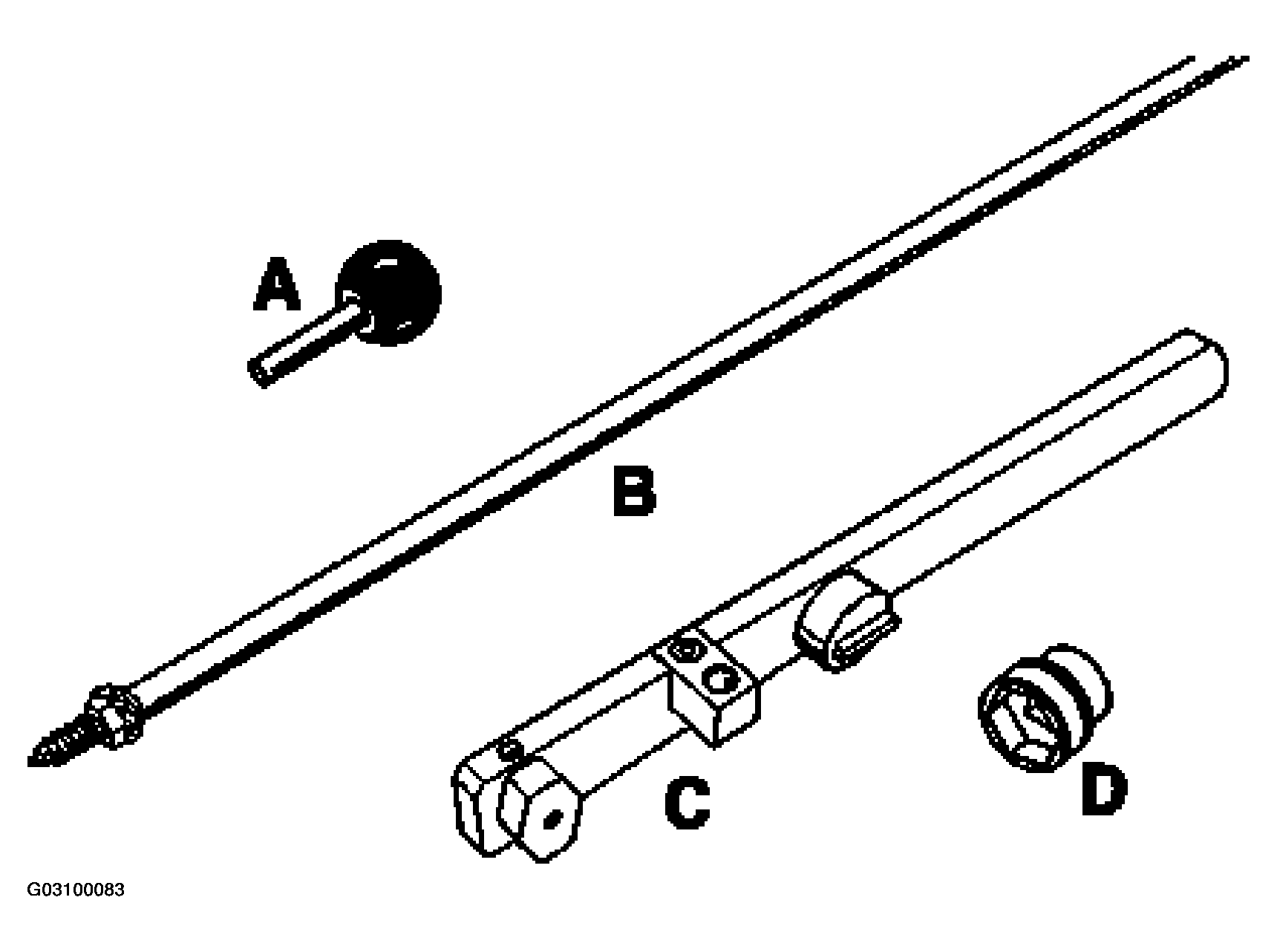

SPECIAL TOOL DESIGNATION
| Item | Designation | Special tool | Remarks |
|---|---|---|---|
| A | Fixing pin for belt pulley | 9595 or 9595/1 | 1 set = 2 parts (use short fixing pin) |
| B | Extractor for closure caps of camshaft bores | Shop-made tool, iron rod or threaded rod approx. 1000 mm long, with welded on sheetmetal screw 6.3 x 14 with hexagon head | |
| C | Adjustment device for valve timing | 9612/9 | Use only if engine is installed; if engine is removed, use blocking device 9612 |
| D | Socket wrench insert | 9594 |
