Preliminary work

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2005 Porsche 911, 2004 Porsche 911, 2003 Porsche 911, 2002 Porsche 911, and 2001 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect battery.
Remove air cleaner assembly:
2.1 Undo collar screw M6 x 34.

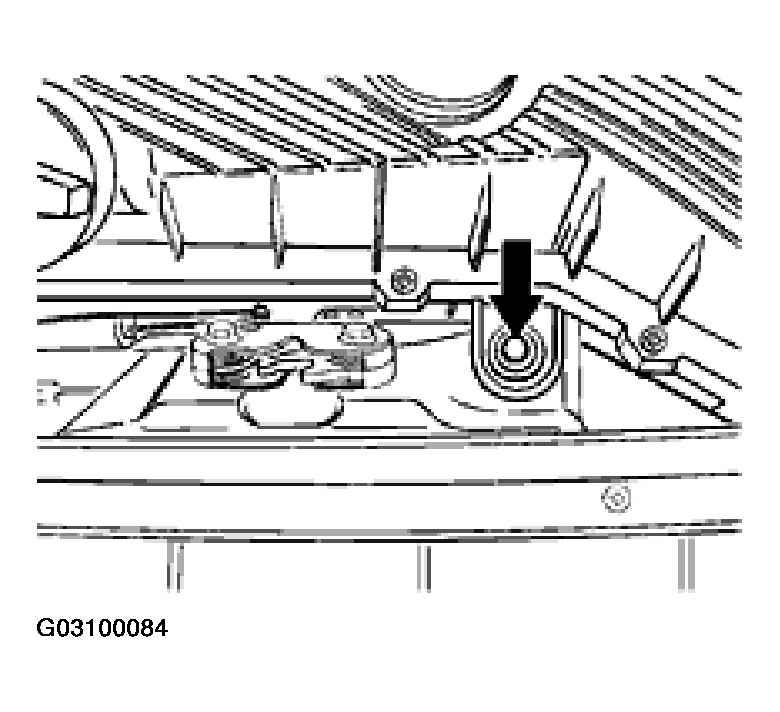

Fig 1: Identifying Air Cleaner Assembly Collar Screw M6 X 34
Courtesy of PORSCHE OF NORTH AMERICA, INC.

2.2 Detach oil filler neck. Undo hose clamp on throttle body and pull plug off the hot film mass air flow meter. Unclip wire on air cleaner housing and remove air cleaner assembly.

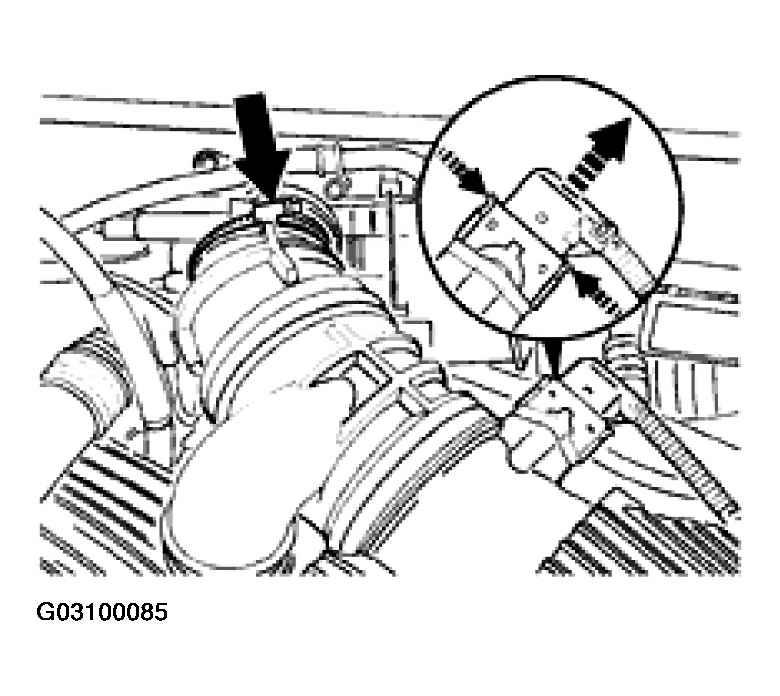

Fig 2: Removing Hose Clamp On Throttle Body And Pull Plug Off Hot Film Mass Air Flow Meter
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Remove right rear wheel.
Pull off caps of camshaft bores (6 ea.) using the shop-made tool. Refer to REMOVING AND INSTALLING CLOSURE CAP FOR CAMSHAFT BORE .

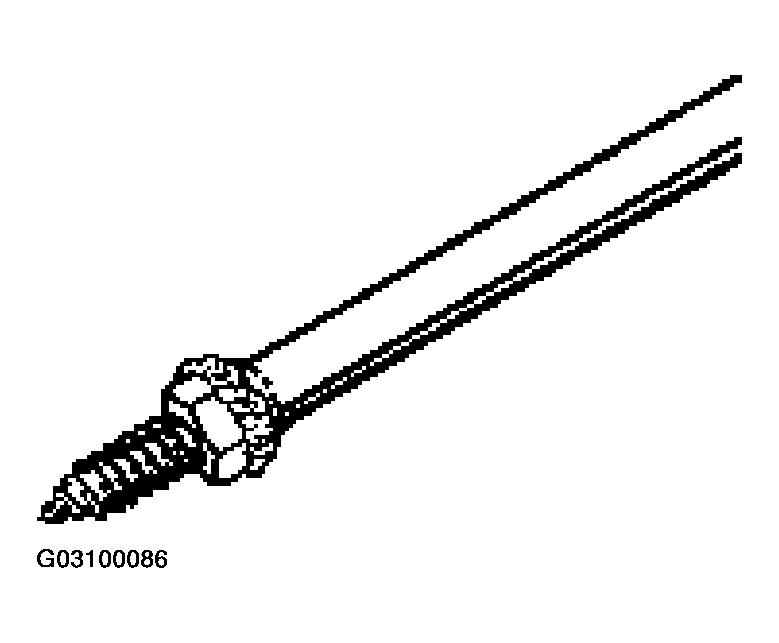

Fig 3: Identifying Shop-Made Extraction Tool
Courtesy of PORSCHE OF NORTH AMERICA, INC.

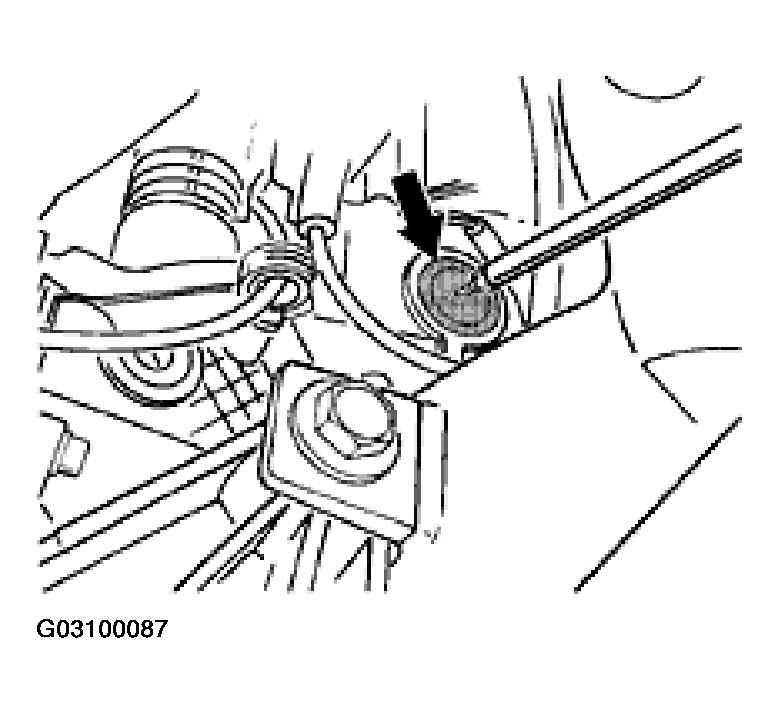

Fig 4: Pulling Off Closure Cap On Cylinder Head 1 - 3 (Flywheel Side)
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Undo ground strap between engine and body. Undo the strap at the engine (cylinder head, near cylinder 6).

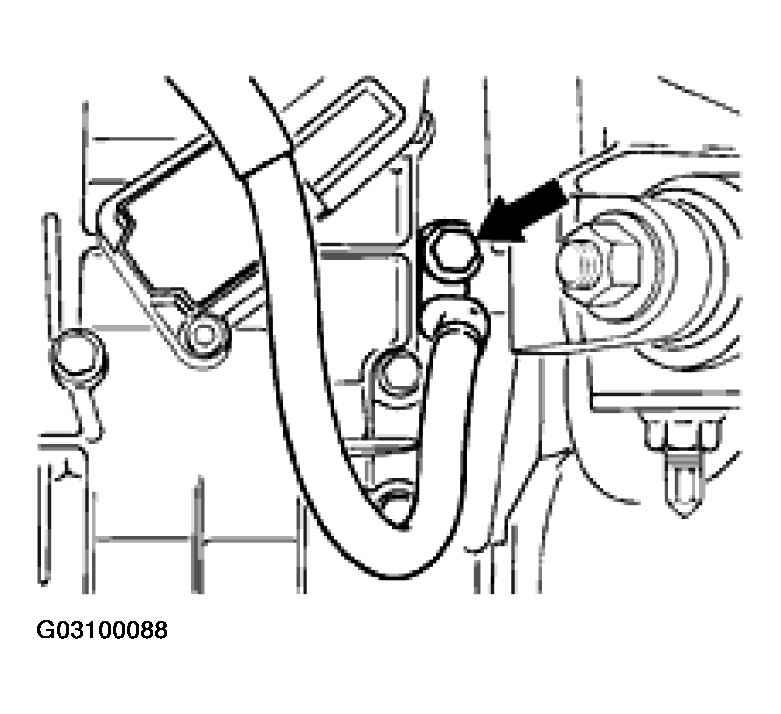

Fig 5: Identifying Ground Strap Between Engine And Body
Courtesy of PORSCHE OF NORTH AMERICA, INC.
