Checking camshafts of cylinder bank 1 - 3
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2005 Porsche 911, 2004 Porsche 911, 2003 Porsche 911, 2002 Porsche 911, and 2001 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

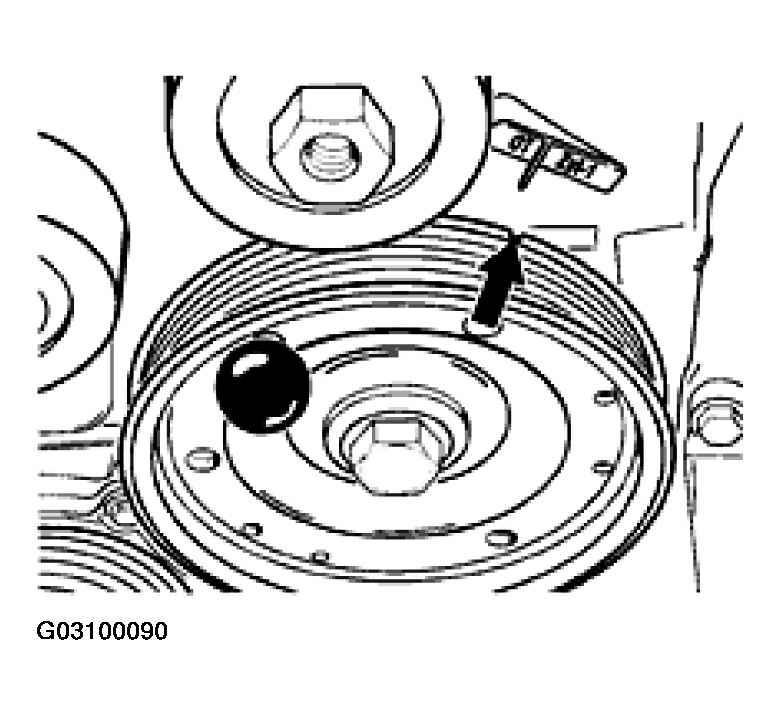

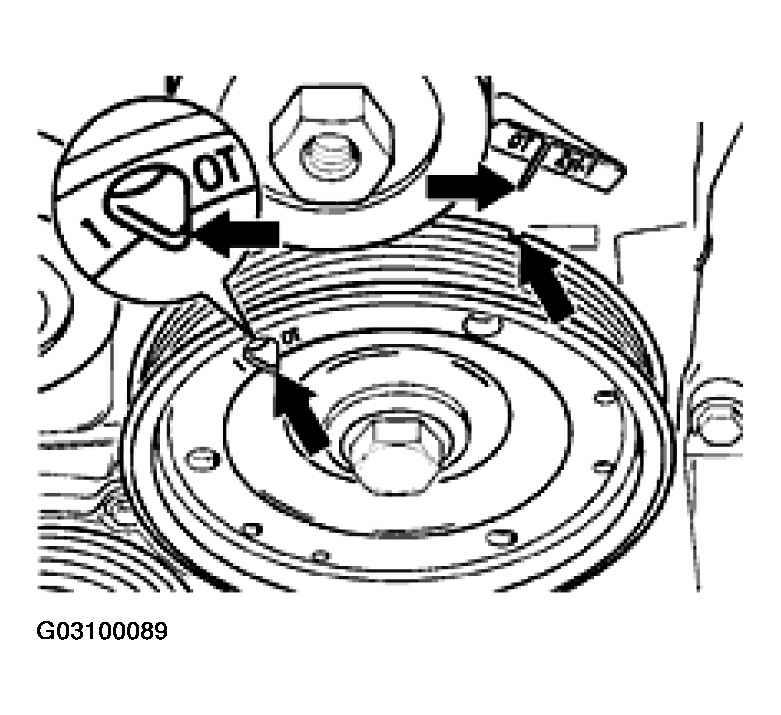

- Move camshafts of cylinder bank 1 - 3 to basic position. Turn crankshaft clockwise until the bore 1 TDC (top dead center) in the belt pulley is aligned with the fixing bore on the crankcase. Position or fix with fixing pin (short) of special tool 9595 or 9595/1.
Courtesy of PORSCHE OF NORTH AMERICA, INC.

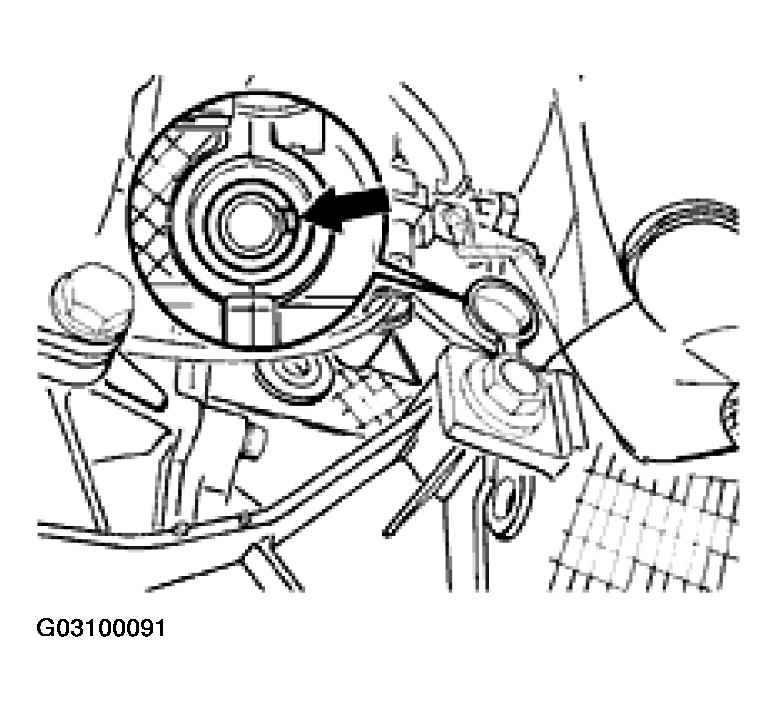

- Check basic camshaft position of cylinder bank 1 - 3. Ensure that the groove in the camshaft faces outward toward the cylinder head cover.
View from the flywheel side
Courtesy of PORSCHE OF NORTH AMERICA, INC.
If the position of the camshafts is incorrect or the groove in the inlet camshaft does not face outward, remove fixing pin of belt pulley and turn crankshaft a further 360° clockwise.
Then position or fix the fixing pin in the bore (1 TDC) and the fixing bore in the crankcase again.
- Check the position of the groove again.

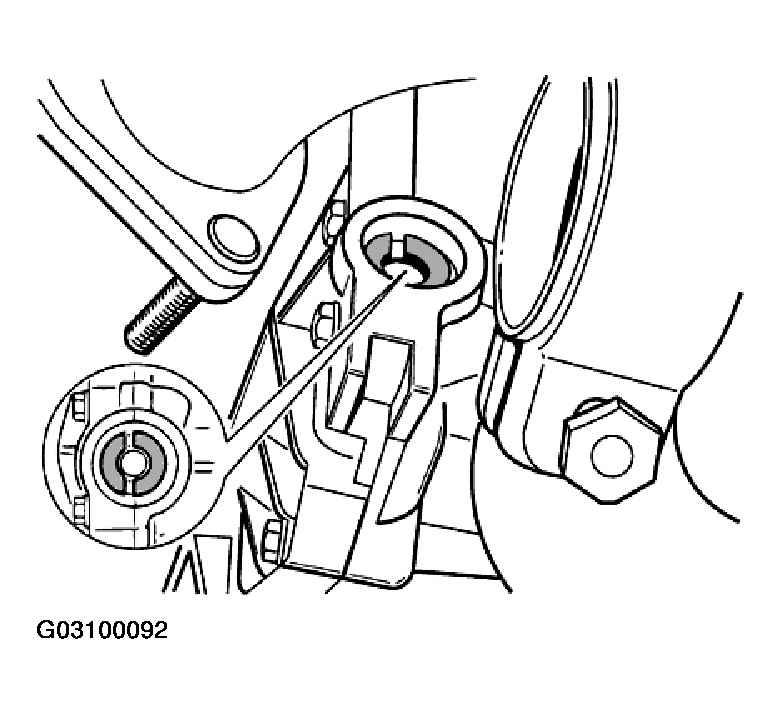

- If the allocation is correct, at the same time, the narrow segment of the exhaust camshaft on the opposite side must face the cylinder head cover.
View from the belt pulley side. Rear muffler removed for clearer illustration.

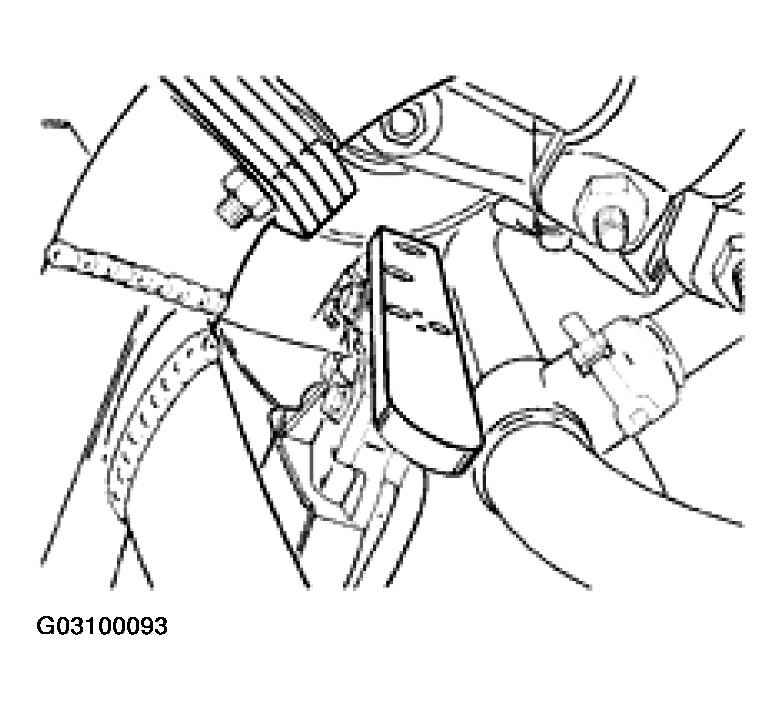

- Position special tool, adjustment device 9612/9, on the cylinder head and fasten with a hexagon-head bolt M8 x 30.
NOTE: Do not use force when positioning the special tool. It should be possible to fit the special tool and hexagon-head bolt with ease.
