Adjusting timing of cylinder bank 1-3 - Engine installed: Requirements
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2005 Porsche 911, 2004 Porsche 911, 2003 Porsche 911, 2002 Porsche 911, and 2001 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
Three auxiliary chain tensioners fitted with correct pre-tension.
- Turn engine to installation position on assembly support.

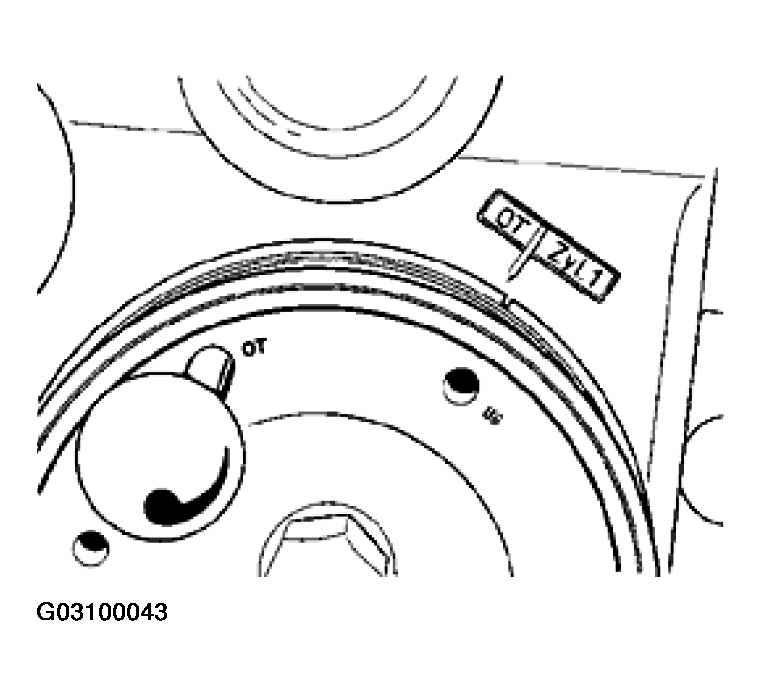

- Remove fixing pin. Advance crankshaft 360° clockwise until the bore 1 OT (top dead center) in the belt pulley is aligned with the fixing bore on the crankcase. Position or fix with fixing pin (short) of special tool 9595.

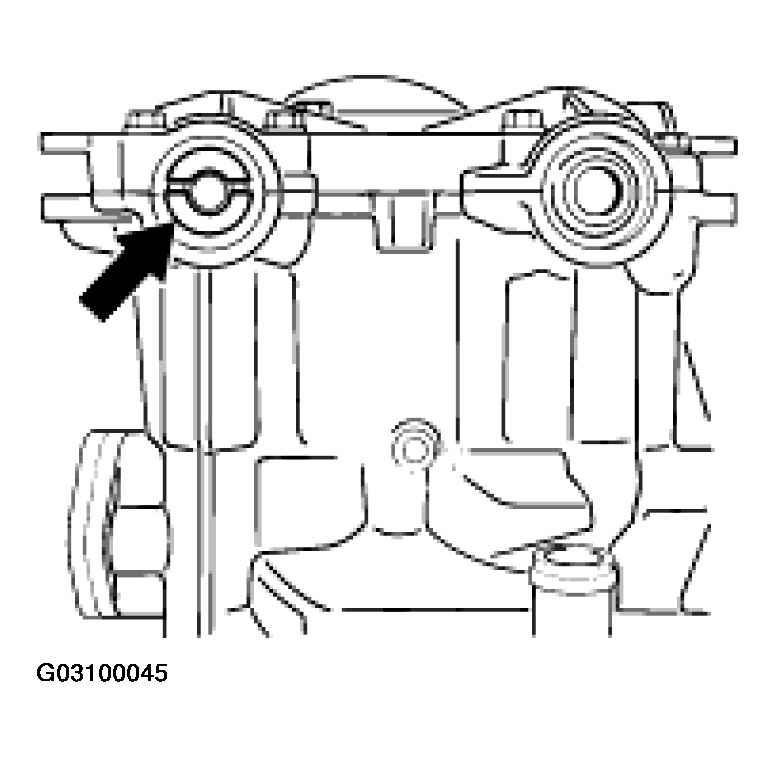

- Check basic camshaft adjustment of cylinder bank 1 - 3. Ensure that the groove in the camshaft faces outward toward the cylinder head cover.
Courtesy of PORSCHE OF NORTH AMERICA, INC.
View from the flywheel side
- Turn engine 90° clockwise on the assembly support. Cylinder bank 1 - 3 faces upward.

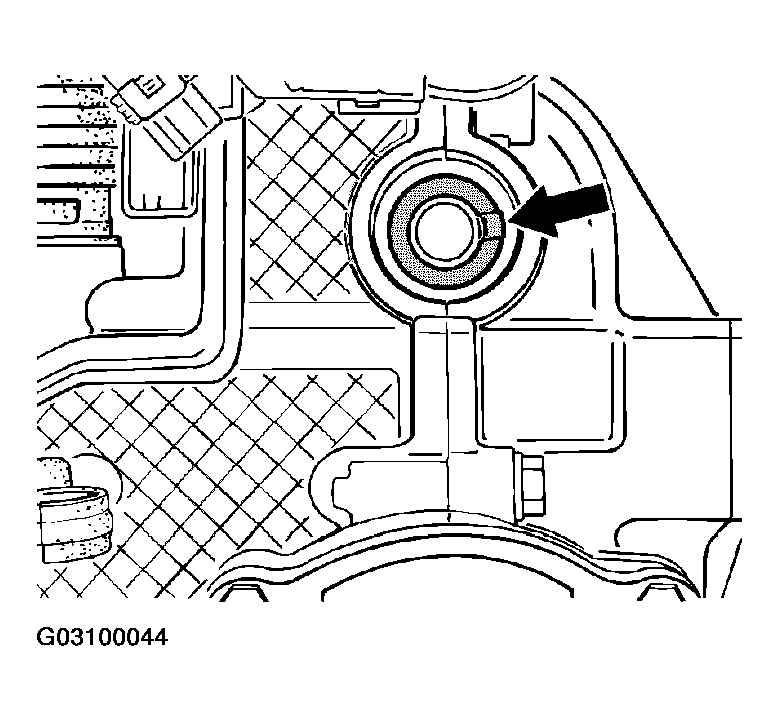

- If the allocation is correct, the narrow segment must face the cylinder head cover on the opposite side of the cylinder head.
Courtesy of PORSCHE OF NORTH AMERICA, INC.
View from the belt pulley side

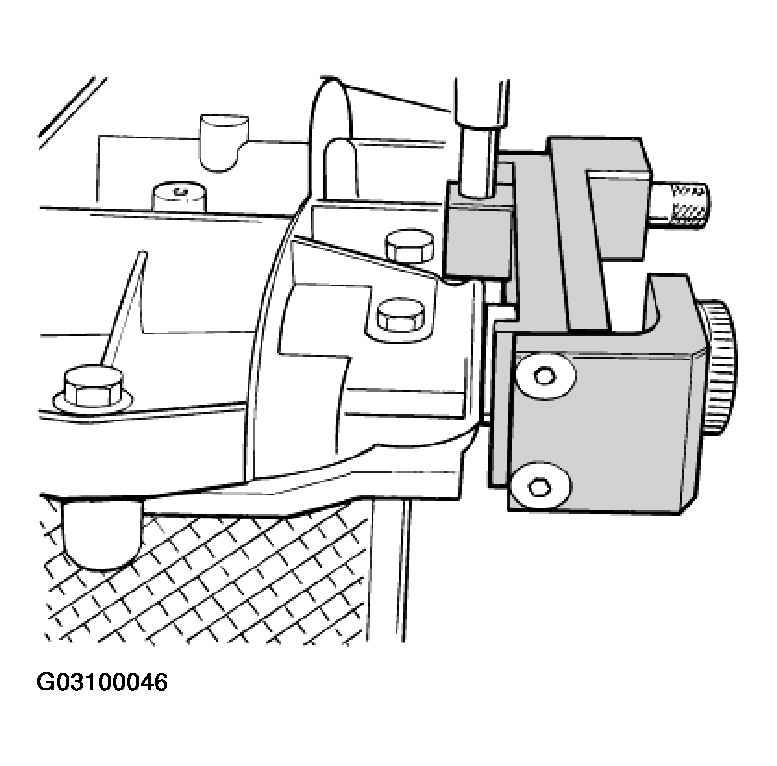

- Fasten blocking device (special tool 9612) on the cylinder head.

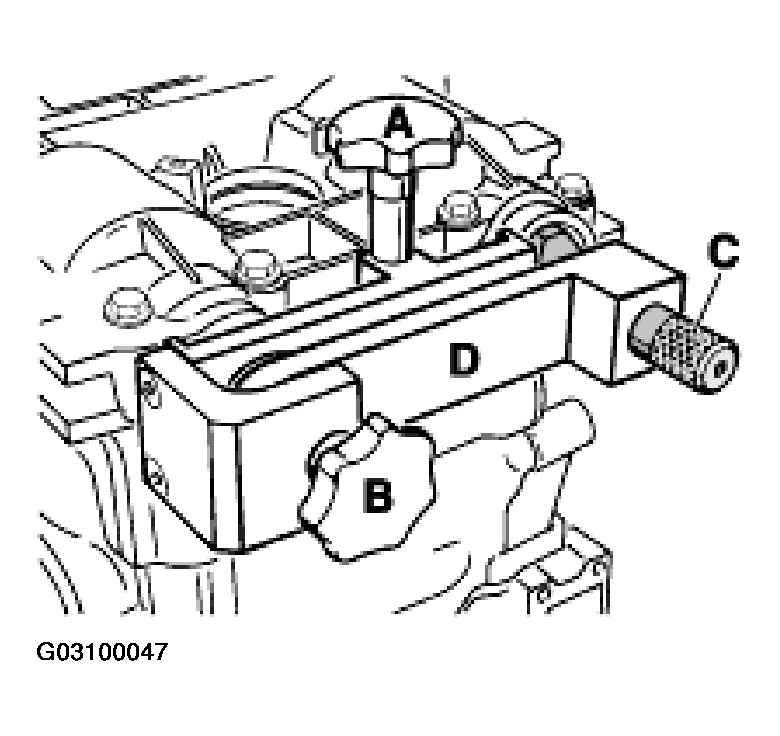

- Special tool fitting sequence:
- Fastening screw with star knob on cylinder head lug. Pull back centering piece (B) and sword bolt (C) when tightening.
- Centring piece in groove of the exhaust camshaft. Pull sword bolt (C) back when tightening.
- Sword bolt
- Centre section (pivoting).
- Undo four hexagon-head screws (M6 x 15) on the sprocket wheel on the opposite side.

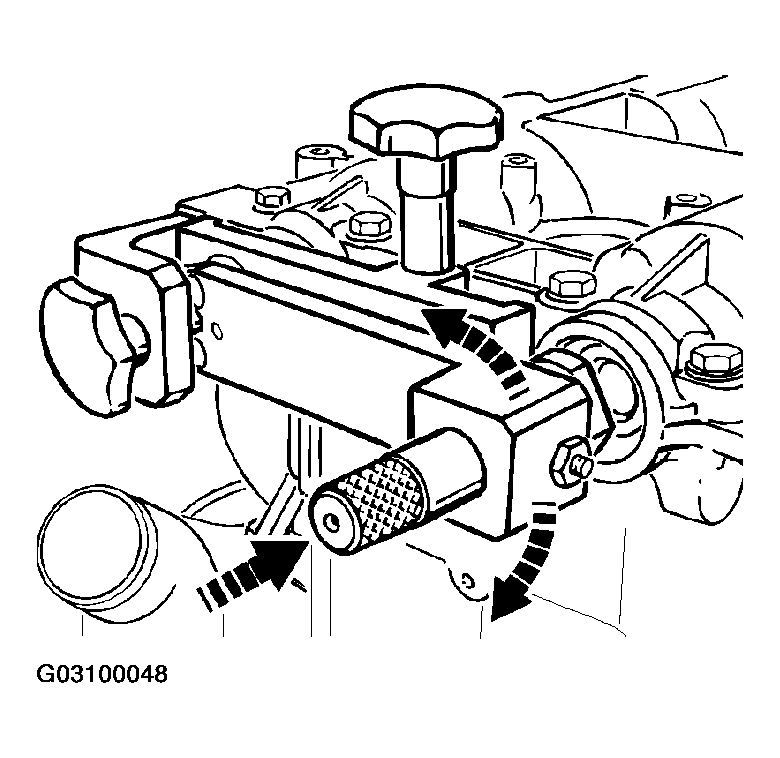

- Allocate camshafts; to do this, turn the pre-tensioned center piece (D) accordingly until the sword bolt (C) can be fixed in the bearing bore of the inlet camshaft.
- Fasten sprocket wheel. Tightening torque 14 Nm (10.5 ftlb.)
- Remove blocking device.
