Oil suction pipe

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2005 Porsche 911, 2004 Porsche 911, 2003 Porsche 911, 2002 Porsche 911, and 2001 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

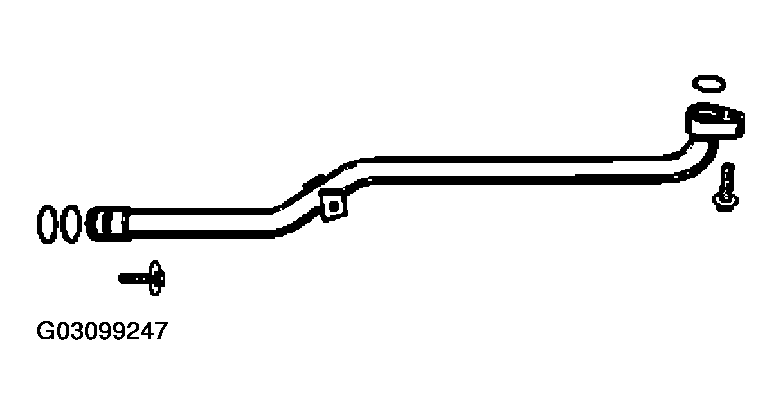

Fig 1: Identifying Oil Suction Pipe

Courtesy of PORSCHE OF NORTH AMERICA, INC.

The oil suction pipe is fitted between the dual-chamber suction pump and the cylinder head cover.

The rear M6 x 40 fastening screw is fitted with Loctite 242 or 243.

further to Item 6

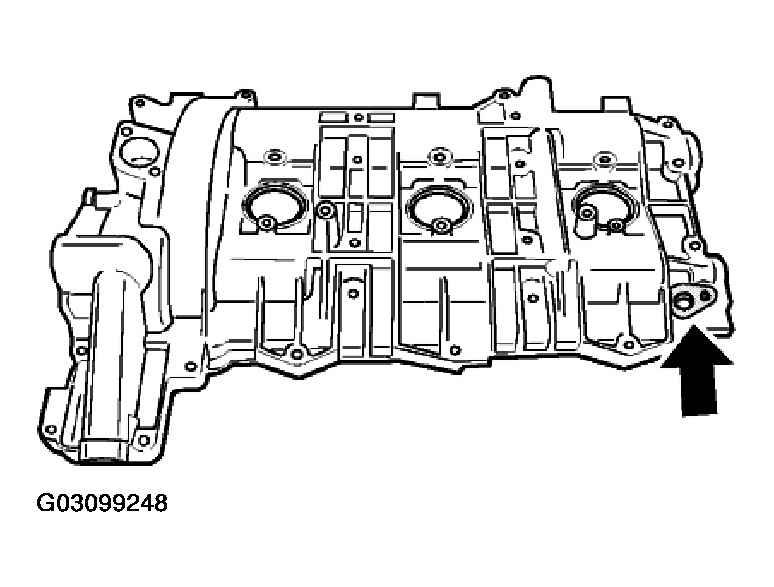

Fig 2: Identifying Cylinder Head Cover Of Cylinder Bank 4 - 6

Courtesy of PORSCHE OF NORTH AMERICA, INC.

A take-up bore for the oil suction pipe was added on the cylinder head cover of cylinder bank 4 - 6.

further to Item 6

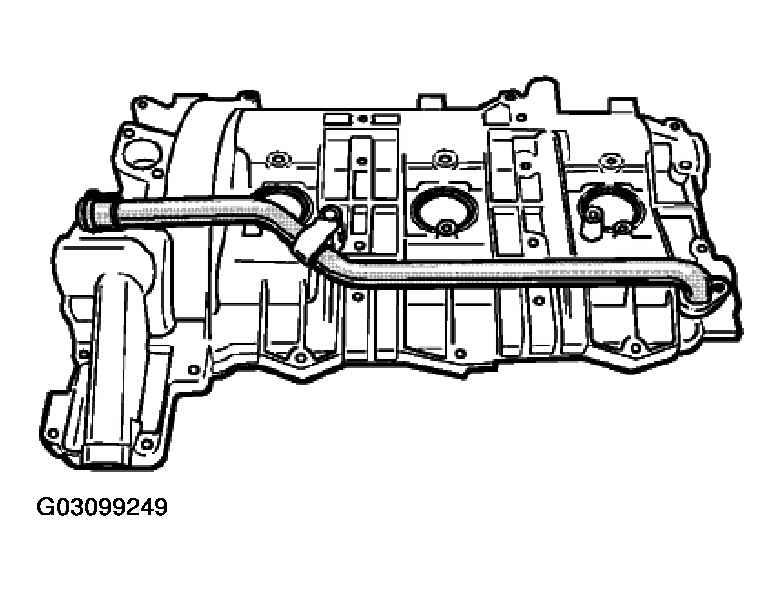

Fig 1: Identifying Oil Suction Pipe On Cylinder Head Cover

Courtesy of PORSCHE OF NORTH AMERICA, INC.

Oil suction pipe on cylinder head.

Item 6
