Dual-chamber suction pump

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2005 Porsche 911, 2004 Porsche 911, 2003 Porsche 911, 2002 Porsche 911, and 2001 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

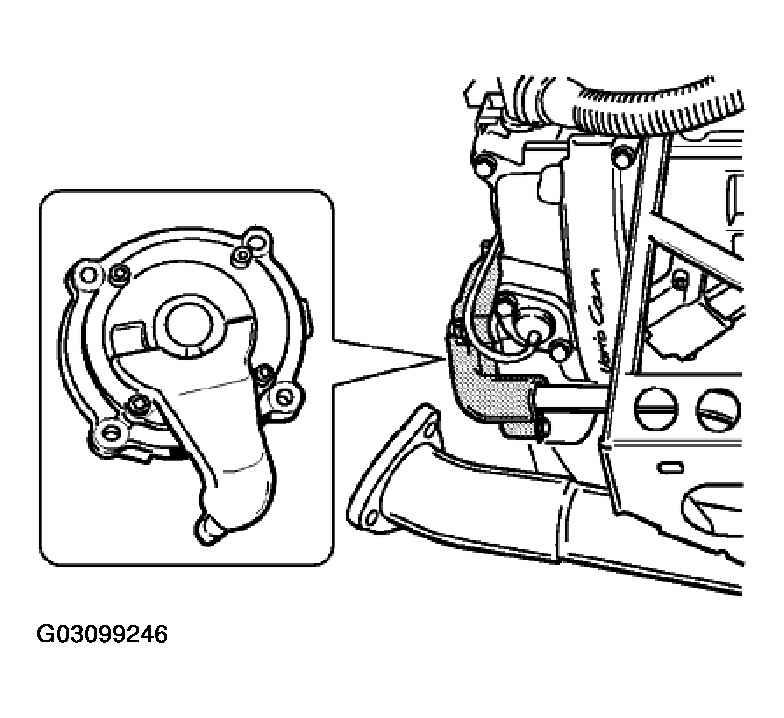

Fig 1: Identifying Dual-Chamber Suction Pump

Courtesy of PORSCHE OF NORTH AMERICA, INC.

A dual-chamber suction pump, which is sealed with two sealing rings, is fitted on the cylinder head of cylinder bank 4 - 6.

The M6 x 30 fastening screws (4 ea.) are fitted with Loctite 242 or 243.

Item 6
