Cylinder head

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2005 Porsche 911, 2004 Porsche 911, 2003 Porsche 911, 2002 Porsche 911, and 2001 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

The cylinder heads already have a reduced height. Subsequent machining of the sealing surface is therefore not permissible.

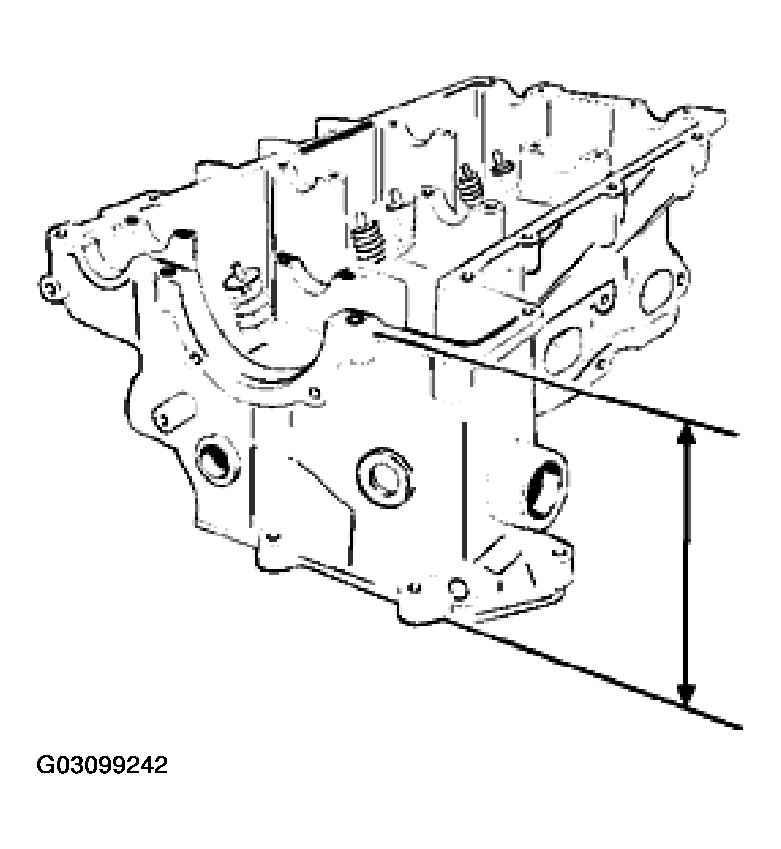

Fig 1: Identifying Cylinder Head Height Measuring Points
G03099242Courtesy of PORSCHE OF NORTH AMERICA, INC.

Item 4
