3.4 l engine performance kit / X51: Differences: Camshafts

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2005 Porsche 911, 2004 Porsche 911, 2003 Porsche 911, 2002 Porsche 911, and 2001 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

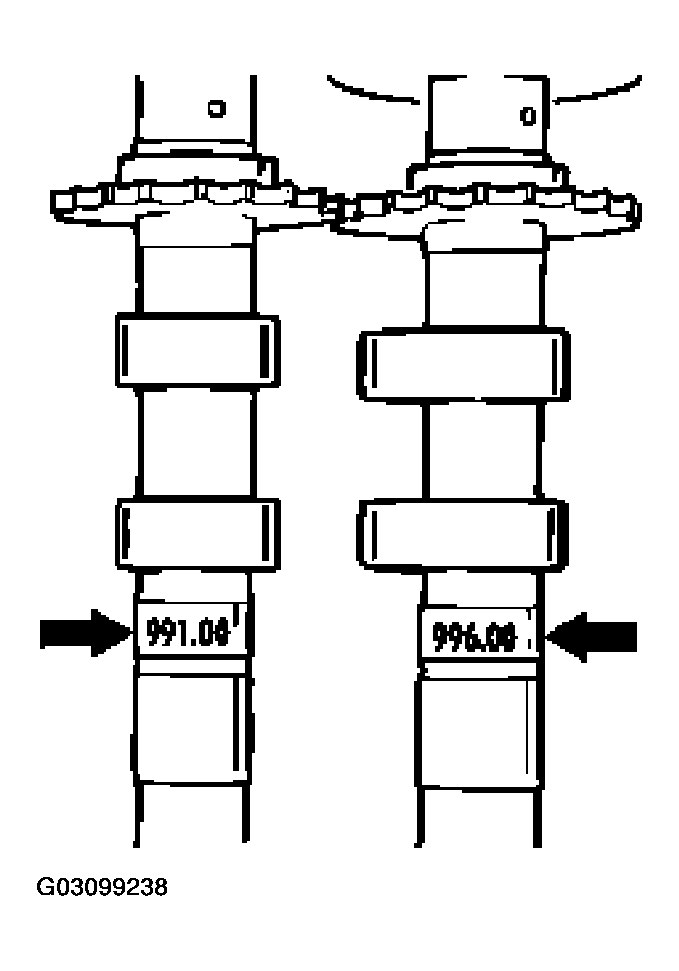

Fig 1: Identifying Camshafts Of Cylinder Bank 1 - 3

Courtesy of PORSCHE OF NORTH AMERICA, INC.

The inlet camshafts and exhaust camshafts possess a greater cam stroke.

Camshafts of cylinder bank 1 - 3

Identification on the camshaft

Inlet camshaft: 991.00 3,4 L/KIT IN 1--3

Exhaust camshaft: 996.00 3,4 L/KIT IN 1--3

further to Item 2

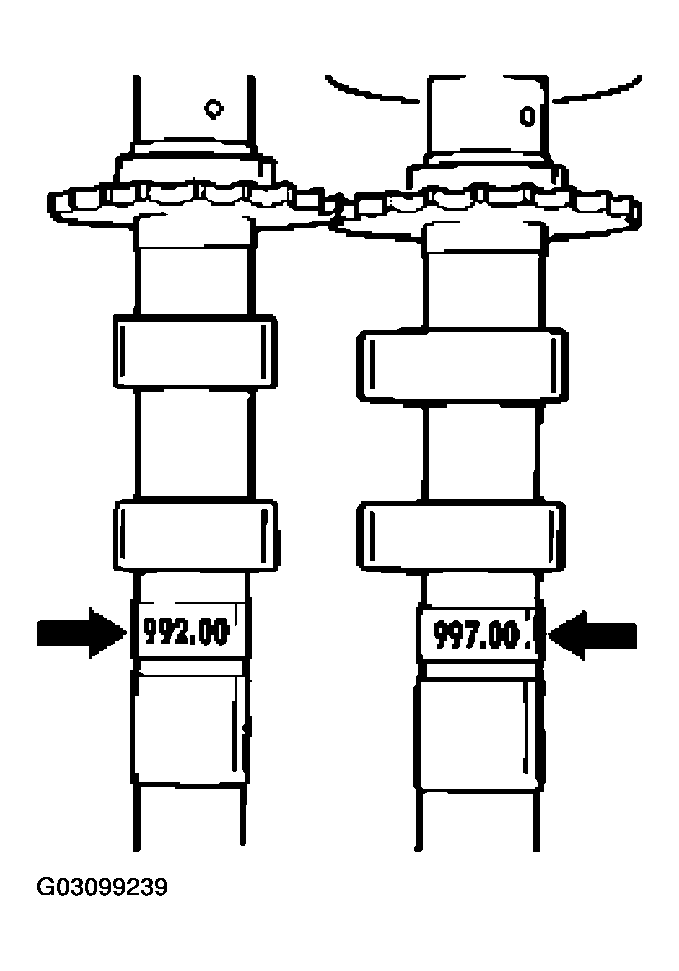

Fig 1: Identifying Camshafts Of Cylinder Bank 4 - 6

Courtesy of PORSCHE OF NORTH AMERICA, INC.

Camshafts of cylinder bank 4 - 6

Identification on the camshaft

Inlet camshaft: 992,00 3,4 L/KIT IN 4--6

Exhaust camshaft: 997,00 3,4 L/KIT IN 4--6

Item 3
