Installing door trim panel
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2005 Porsche 911, 2004 Porsche 911, 2003 Porsche 911, 2002 Porsche 911, and 2001 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
Water may enter at the door film!
- Door films which have been completely removed or torn must always be replaced.
- In the case of door films which have become partly detached at the top and side, the detached films must be reattached using a butyl sealing cord.
DOOR TRIM INSTALLING PROCEDURE (AS OF MY 1997)
| No. | Procedure | Instructions |
|---|---|---|

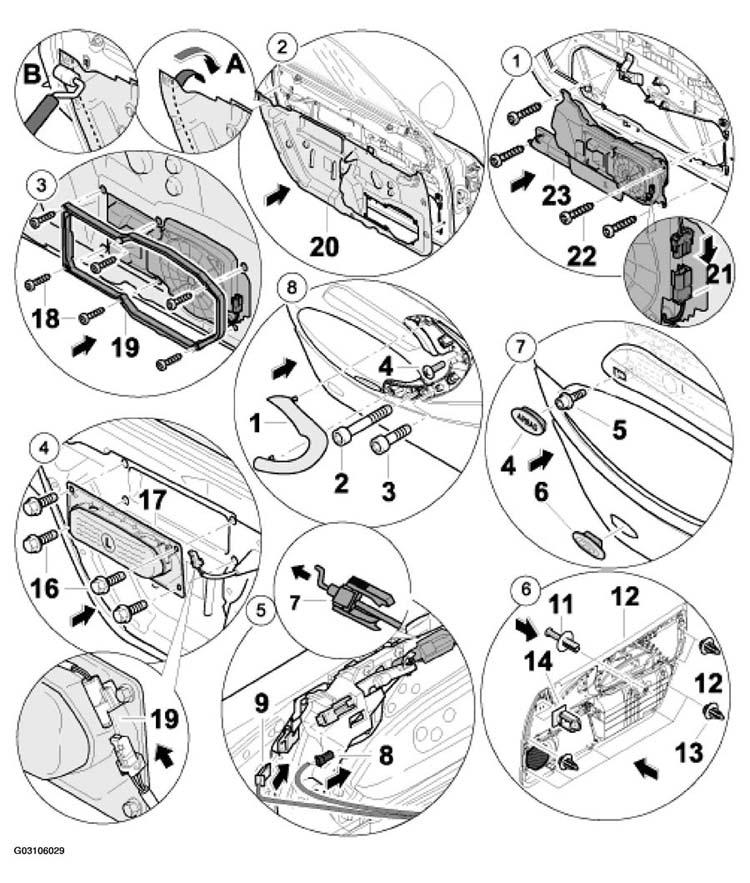

| 1 | Installing sound box | Position sound box -23-22-21- . See Fig 1 . |
| Sticking sliding strip onto the front and rear of the inner door panel | See FITTING SLIDING STRIP ON THE INNER DOOR PANEL . | |
| 2 | Affix door film. | Attaching a new door sealing film: -A-B-20- . Peel off the protective film -A-B-20- . See Fig 1 . |
| 3 | Installing frame | Position the frame -19-18- . See Fig 1 . |
| 4 | Installing side airbag | Position side airbag -17-16-10 Nm (7.5 ftlb.)--16- . See Fig 1 . |
| 5 | Engaging bowden cable variant B. Connecting electrical plug connection. | Engage bowden cable variant B -7-8, 9- . See Fig 1 . |
| 6 | Installing door trim panel | The clips -13, 14- . See Fig 1 . |
| 7 | Position fastening screws -5-5.9 Nm (4.5 ftlb.)- . See Fig 1 . | |
| 8 | Installing cover | Screw in the fastening screws -2, 3, 4-1- . See Fig 1 . |
